Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo (4100Kv)

The Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo pairs a Mamba Micro X2 ESC with an 0808-4100Kv brushless sensorless motor for 1:18 scale RC vehicles weighing up to 2.25 lbs. The ESC supports 2S-4S LiPo input, while the motor is rated for 2S-3S LiPo and 4-9 cell NiMH operation.

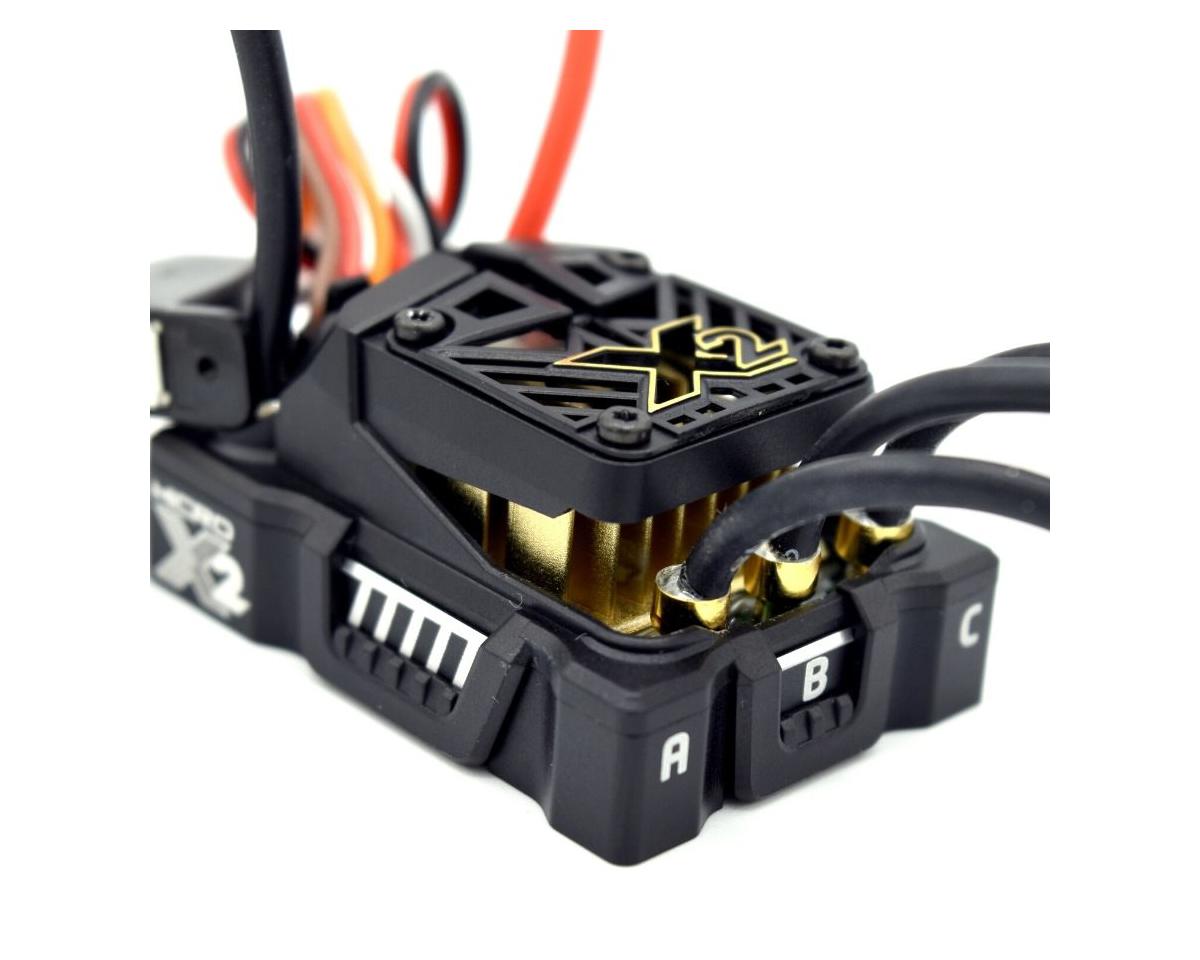

ESC Features

• 2S-4S LiPo input voltage range, 16.8V maximum
• Waterproof design for use in nearly any environment
• Data logging and CRYO-DRIVE TECHNOLOGY
• Sensored motor capable with an optional sensor harness
• Telemetry ready for the Castle Creations Telemetry Link for S.BUS2 and compatible Futaba transmitters
• Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake
• Audible alerts for calibration and error conditions
• 2A peak BEC with selectable 5.5v or 7.5v output; 5.5v default
• Proportional, reversible brake; reverse may be disabled
• Waterproof on/off switch
• 3.5 mm bullet connectors
• Additional settings and software updates through Castle Link software or the Castle Link App

Specifications

• ESC size: 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
• ESC weight: 1.66 oz / 47 grams with wires

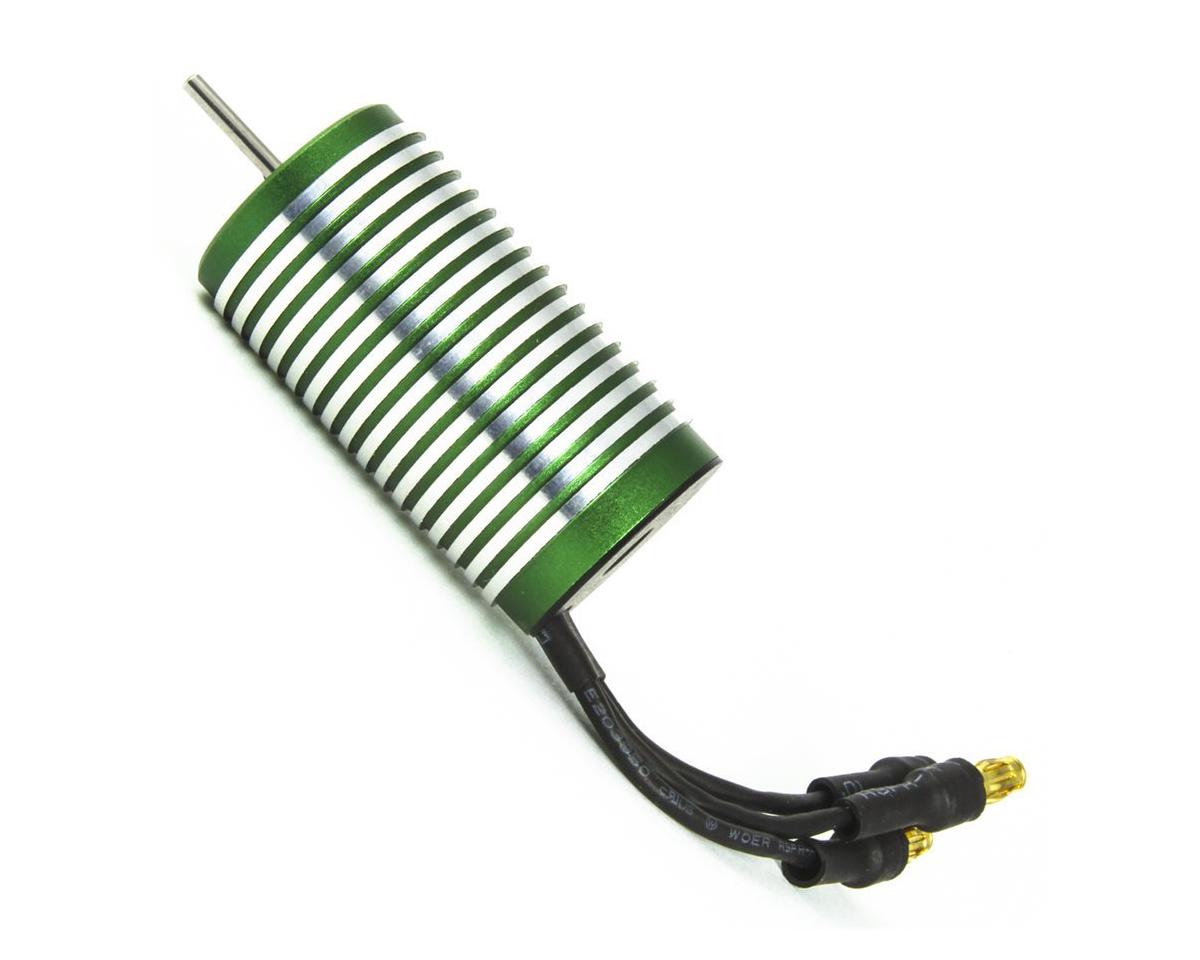

• Motor: Castle 0808-4100Kv brushless sensorless motor
• Motor Kv: 4100
• Motor size: 1.5" (38mm) length x 0.79" (20mm) diameter
• Motor weight: 1.8 oz. (50g) with wires
• Motor connectors: 3.5mm male bullets
• Maximum recommended vehicle weight: 2.25 lbs with batteries, ready-to-run

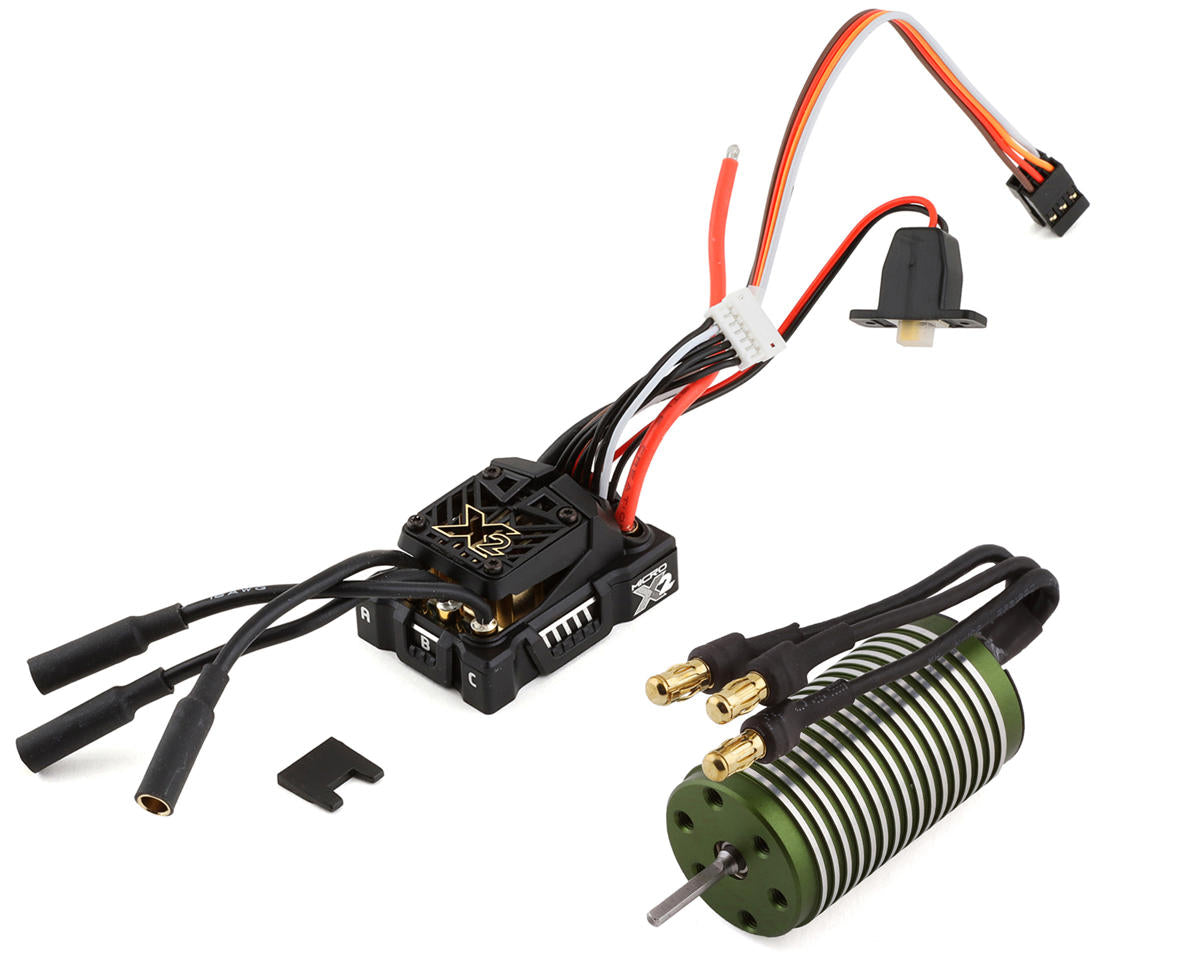

Included

• Mamba Micro X2 ESC
• 0808-4100Kv Brushless Sensorless Motor
• Coupon for free Castle Link USB adapter
• Quick Start Guide
• Castle Decals

Installation Notes

The battery input wires are bare, so a battery connector must be added. Castle recommends Castle 4.0mm Polarized Connectors, Deans Ultra Plugs or XT60 connectors, with a high-current connector rated for at least 40 amps. A minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh.

Although the Mamba Micro X2 is waterproof, it is not intended for completely submerged operation. Rinse the ESC with clean water after exposure to dirt or corrosive materials, and confirm that the rest of the vehicle is waterproof before using it around liquids. Do not exceed 180° F on the motor or ESC. Applying more than 16.8 volts can cause irreparable damage and void the warranty.
