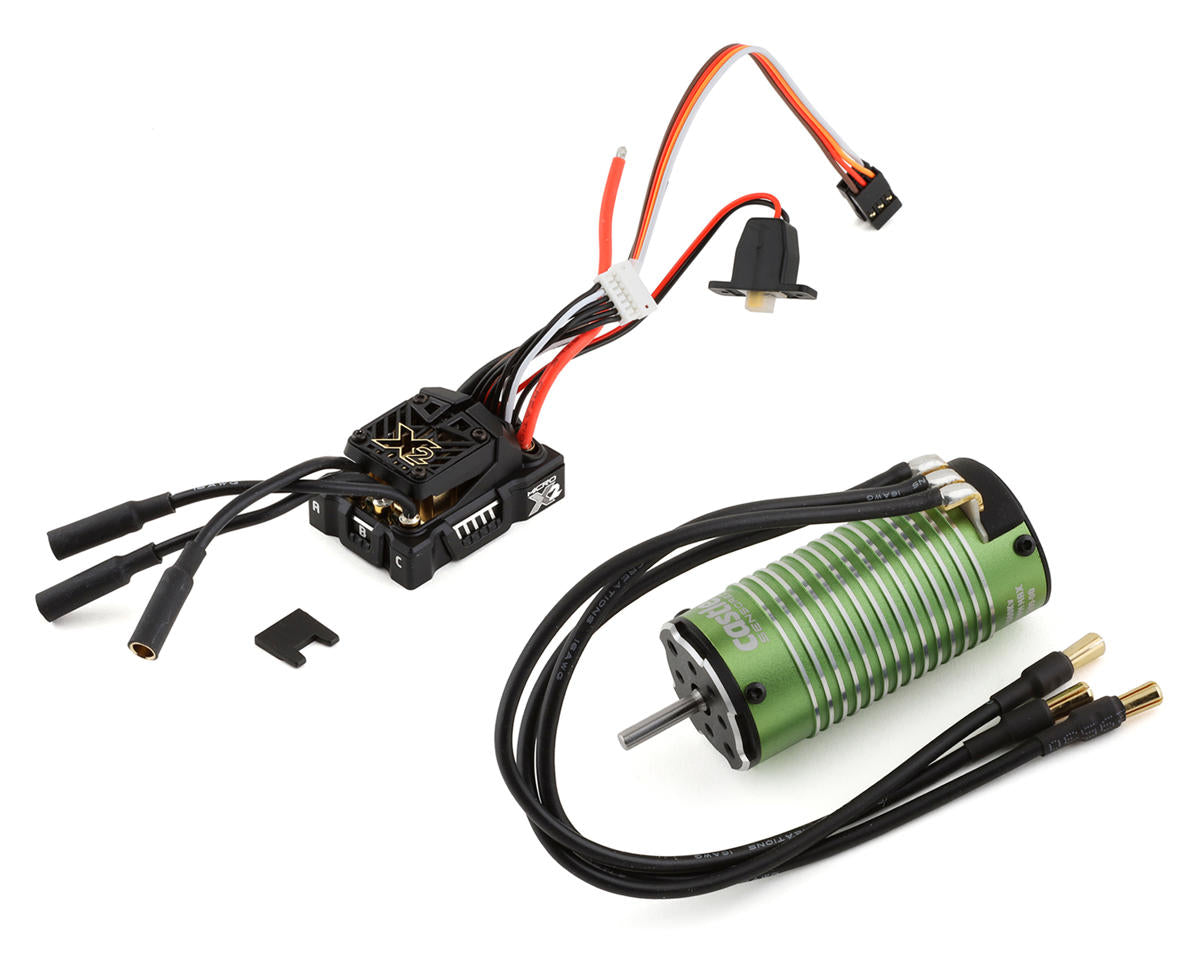

Castle Creations Mamba Micro X2 Waterproof 1/14th Scale Sensored Brushless Combo

The Castle Creations Mamba Micro X2 Waterproof 1/14th Scale Sensored Brushless Combo pairs a Mamba Micro X2 ESC with a 1007-6350Kv brushless sensored motor for 1/14th and 1/16th scale vehicles. The sensored system is designed for precise throttle control, smooth starts, and low-speed control.

ESC Features

• 2S-4S LiPo input voltage range, 16.8V maximum
• Waterproof design

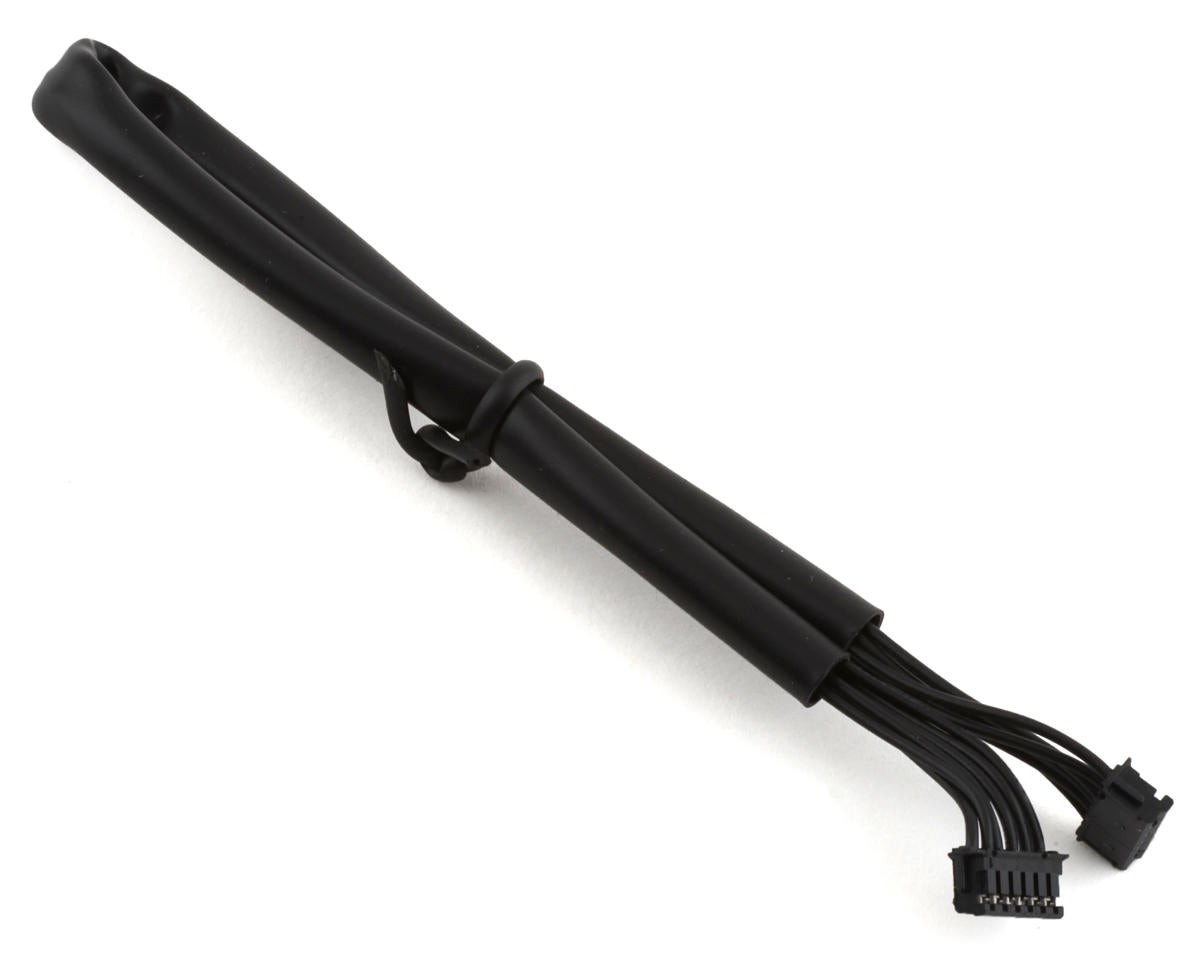

• Sensored motor capable with optional sensor harness
• CRYO-DRIVE technology for cooler, more efficient partial-throttle operation
• Proportional brake and reversible operation, which may be disabled
• Waterproof on/off switch
• Telemetry ready with compatible Castle Creations and Futaba systems
• Auxiliary wire functionality for on-the-fly adjustments
• Audible alerts for calibration and error conditions
• Additional settings and software updates available through Castle Link software or the Castle Link App with the required adapter

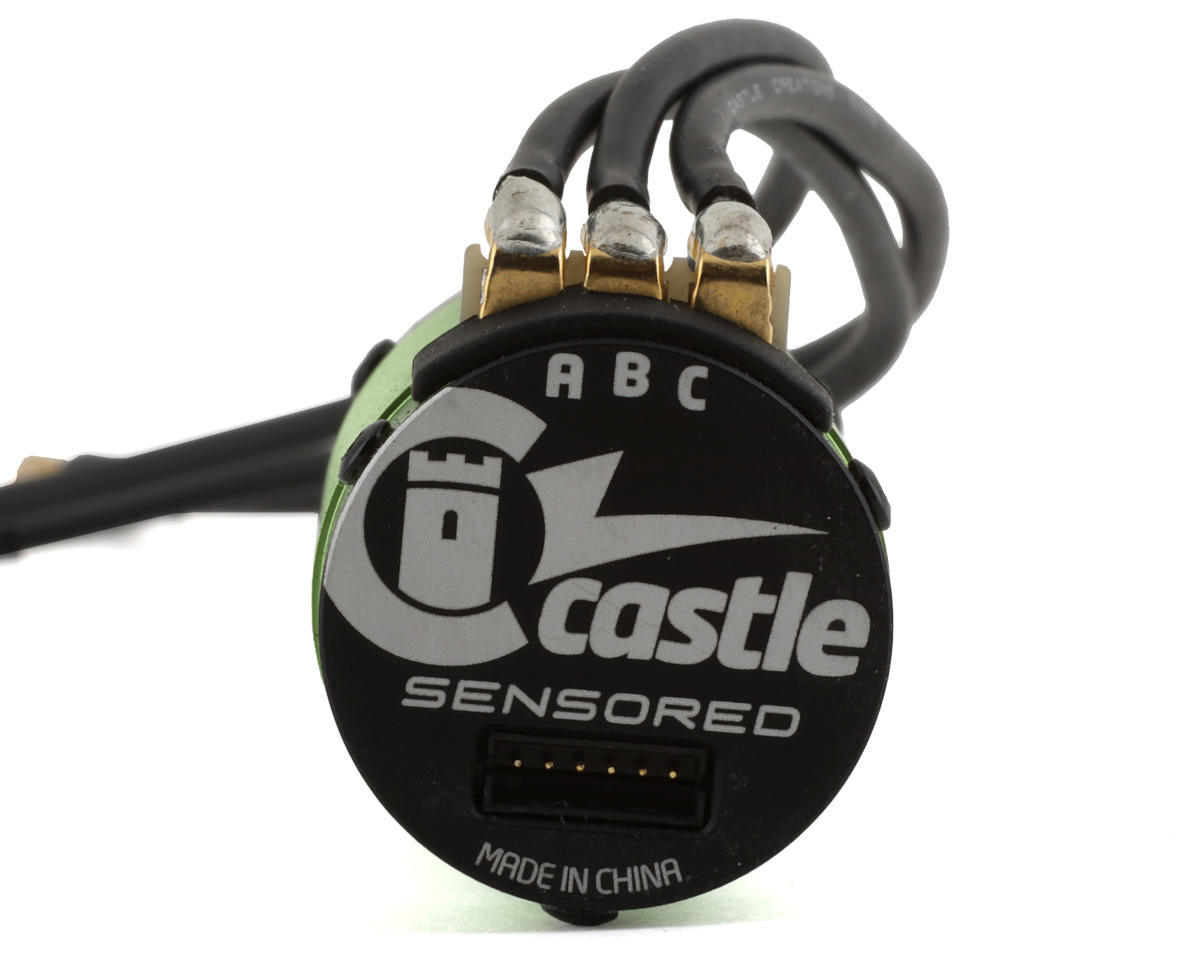

Motor Features

• Improved 4-pole, 12-slot design
• QUIETSENSE technology helps shield the sensors from magnetic field noise
• Flux Shield and secondary Sense Magnets support precise, efficient startups
• Optimized design eliminates the need for mechanical timing adjustments
• 6350Kv rating with a maximum RPM of 80,000
• Designed for 1/14th and 1/16th vehicles weighing up to 2.75lbs

Specifications

• ESC input voltage: 2S-4S LiPo (16.8V Max)
• ESC BEC: 2A Peak, 5.5v or 7.5v (5.5v default)
• ESC size: 41.6mmx29.4mmx21.3mm (1.64" x 1.16" x .84")
• ESC weight: 1.66oz (47g) with wires
• ESC connectors: 3.5mm bullets
• Motor length: 50.3mm
• Motor diameter: 28.mm
• Motor weight: 4.05oz (114.8g) with wires
• Motor shaft: 15mm length, 1/8" (3.17mm) diameter
• Motor mounting holes: 2.5mm holes @ 14 and 16mm/3mm @ 19mm
• Motor connectors: 4mm male bullets

Included

• Mamba Micro X2 ESC
• 1007-6350Kv Brushless Sensored Motor
• Quick Start Guide
• Castle Decals

Important Information

• The battery input wires are bare, so a battery connector must be added. Castle recommends Castle 4.0mm Polarized Connectors, Deans Ultra Plugs, and XT60 connectors.
• Applying voltages higher than 16.8 volts can cause irreparable controller damage and void the warranty.
• Castle recommends 30C continuous discharge or higher LiPo batteries, or high quality 25C batteries such as Traxxas Power Cell.
• Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged. Rinse the ESC with clean water after exposure to corrosives or dirt.
• Never exceed 180°F on the motor or ESC.
