Castle Creations Mamba Micro X2 Waterproof 1/14th Scale Sensored Brushless Combo

The Castle Creations Mamba Micro X2 combo pairs a waterproof sensored ESC with a 1010-5600Kv brushless sensored motor for 1/14th and 1/16th scale vehicles weighing up to 3lbs. Sensored operation, QUIETSENSE technology and CRYO-DRIVE technology provide precise throttle control and efficient partial-throttle operation.

ESC Features

• Input voltage range: 2S-4S LiPo (16.8V Max)
• Waterproof design for use in nearly any environment

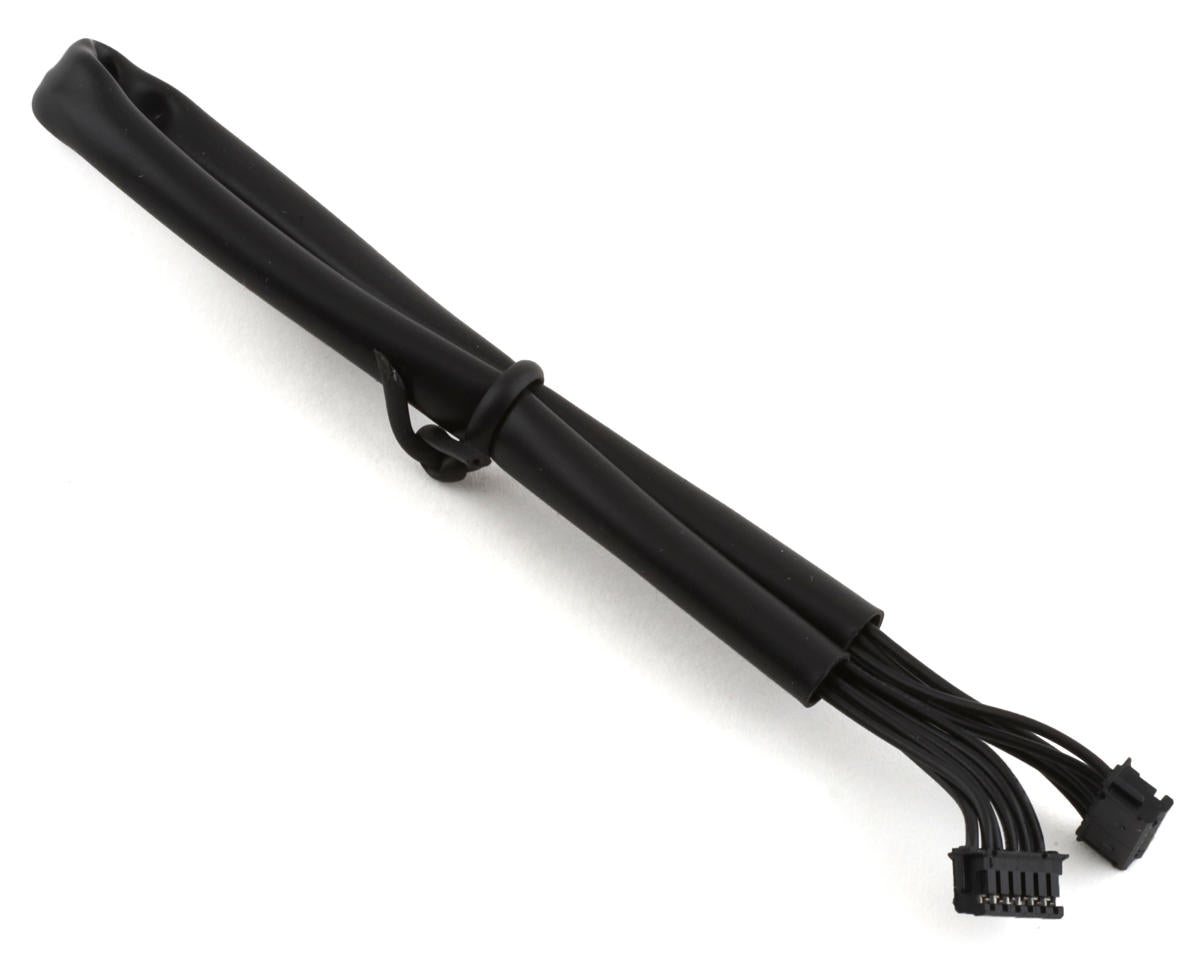

• Sensored motor capable with optional sensor harness
• 2A Peak BEC with selectable 5.5v or 7.5v output; 5.5v default
• Proportional brake and reversible operation, with reverse disable option
• Waterproof on/off switch
• Audible alerts for calibration and error conditions
• Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake
• Telemetry ready with the Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR transmitters
• Additional settings and software updates available through Castle Link software and USB adapter or the Castle Link App with a B-LINK Bluetooth Adapter
• 3.5mm bullet connectors
• Size: 41.6mmx29.4mmx21.3mm (1.64" x 1.16" x .84")
• Weight with wires: 1.66oz (47g)
• Cooling fan not included

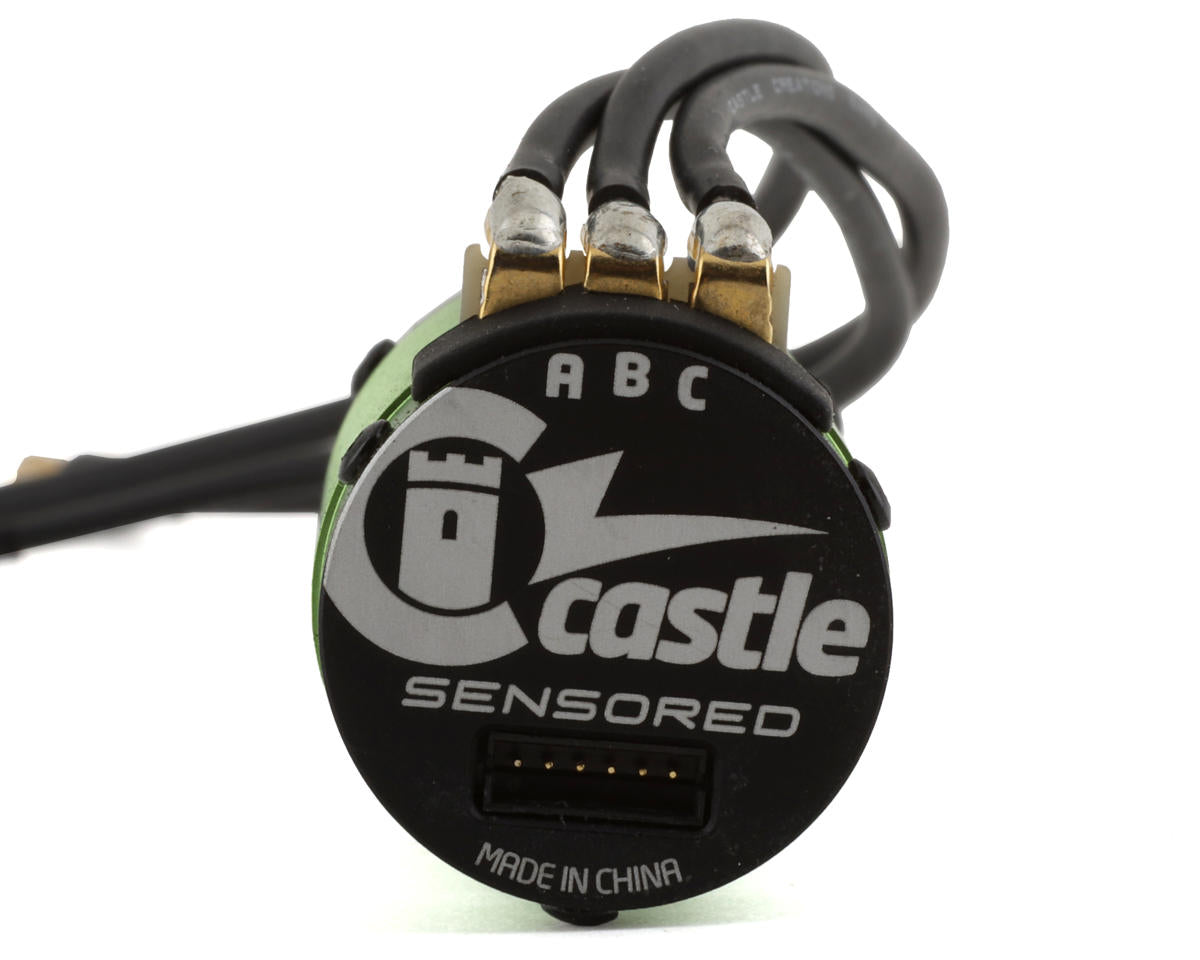

Motor Features

• 1010 improved 4-Pole 12-Slot design
• 5600Kv rating with a maximum RPM of 80,000
• QUIETSENSE technology helps shield the sensors from magnetic field noise
• Flux Shield and secondary Sense Magnets support precise, efficient startups
• Optimized design eliminates the need for mechanical timing adjustments
• Automatic sensor alignment provides uniform timing and torque in both directions
• Input voltage range: 2S-3S LiPo
• Length: 59.5mm
• Diameter: 28.25mm
• Weight with wires: 5.17oz (146.5g)
• Shaft length: 15mm
• Shaft diameter: 1/8" (3.17mm)
• Mounting holes: 2.5mm holes @ 14 and 16mm/3mm @ 19mm
• 4mm male bullet connectors
• Cooling fan not included

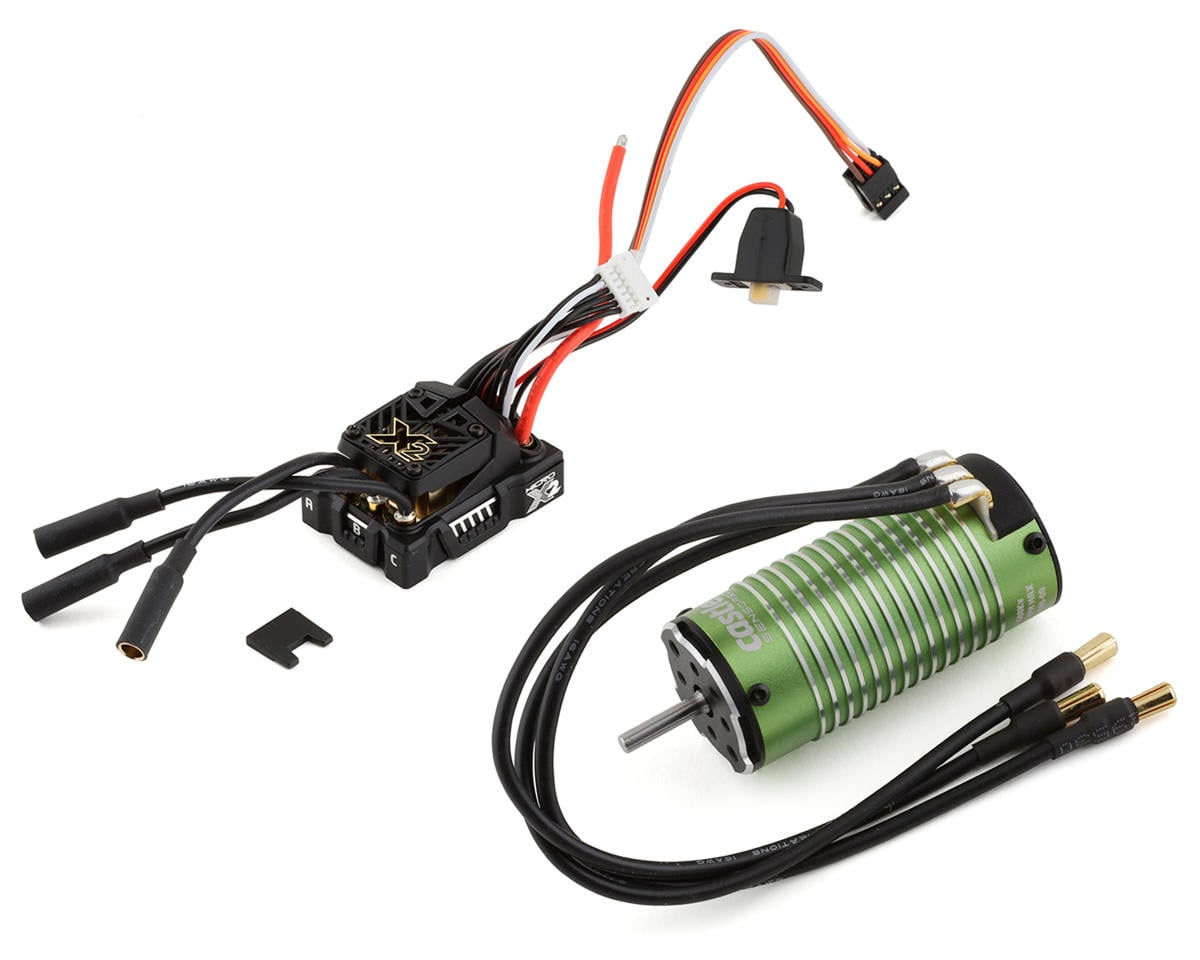

Includes

• Mamba Micro X2 ESC
• 1010-5600Kv Brushless Sensored Motor
• Quick Start Guide
• Castle Decals

Important Product Use Information

• Applying voltages higher than 16.8 volts will cause irreparable damage to the controller and void the warranty.
• The battery input wires are bare. Add the connector of your choice; Castle recommends a high current connector rated for at least 40 amps. Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
• Castle recommends 30C continuous discharge or higher LiPo batteries, or high quality 25C batteries such as Traxxas Power Cell.
• The Mamba Micro X2 is waterproof but is not intended for operation while completely submerged. Rinse the ESC with clean water after exposure to corrosive materials or dirt.
• Confirm that the batteries, servos, radio and chassis are also waterproof before exposing the vehicle to liquids.
• Monitor motor temperatures closely and never exceed 180° F on the motor or ESC.
