Castle Creations Mamba Micro X2 Waterproof 1/14th Scale Sensored Brushless Combo

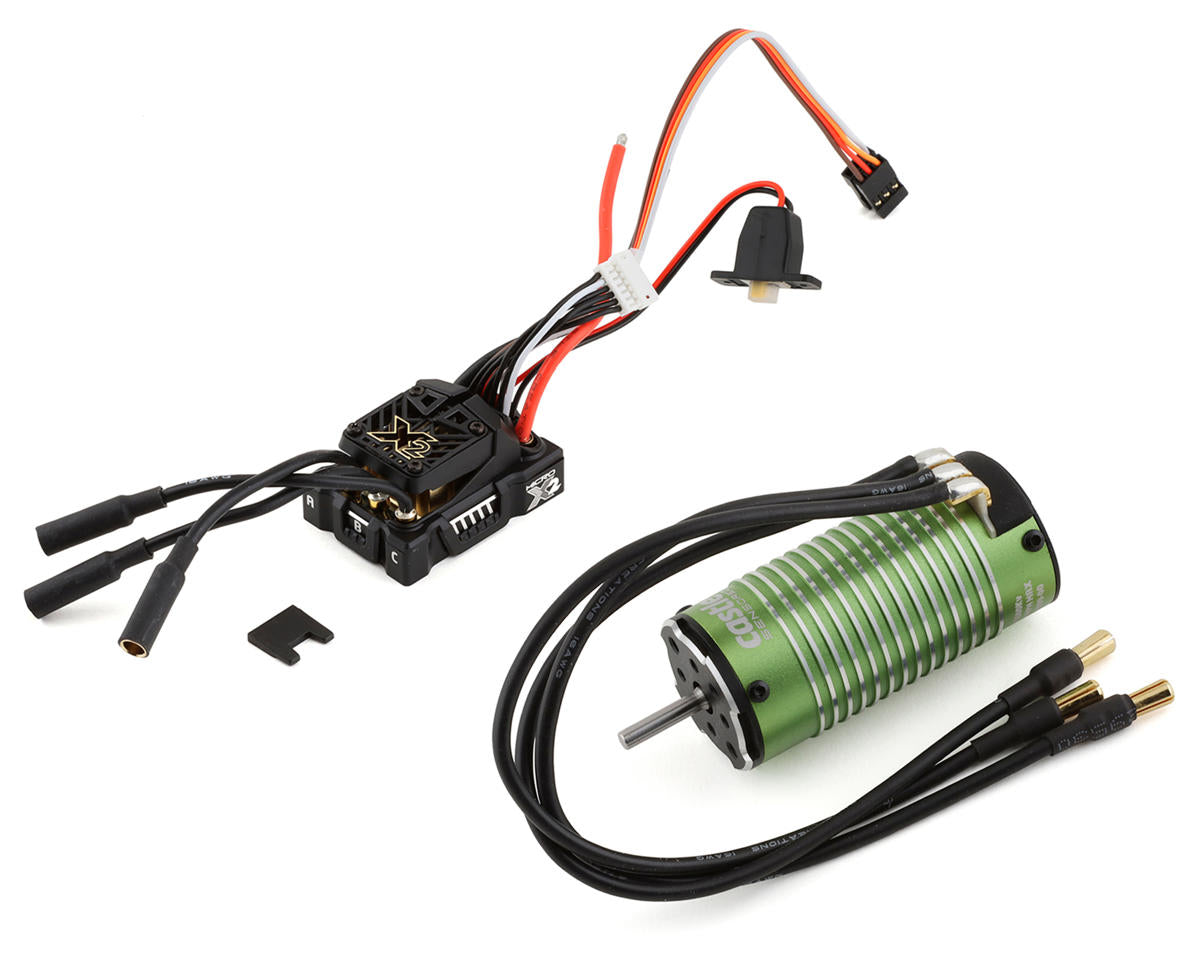

The Castle Creations Mamba Micro X2 Waterproof 1/14th Scale Sensored Brushless Combo pairs a Mamba Micro X2 ESC with a 1010-4400Kv brushless sensored motor. The sensored system is designed for precise throttle control, smooth starts and consistent low-speed performance.

ESC Features

• 2S-4S LiPo input voltage range, with a 16.8V maximum
• Waterproof design for use in nearly any environment
• Sensored motor capable
• CRYO-DRIVE technology for cooler, more efficient operation at partial throttle
• 2A peak BEC with selectable 5.5v or 7.5v output; 5.5v default
• Proportional, reversible brake; reverse may be disabled
• Telemetry ready for compatible Castle Creations and Futaba systems
• Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake
• Audible alerts for calibration and error conditions
• Additional settings and software updates through Castle Link software or the Castle Link App

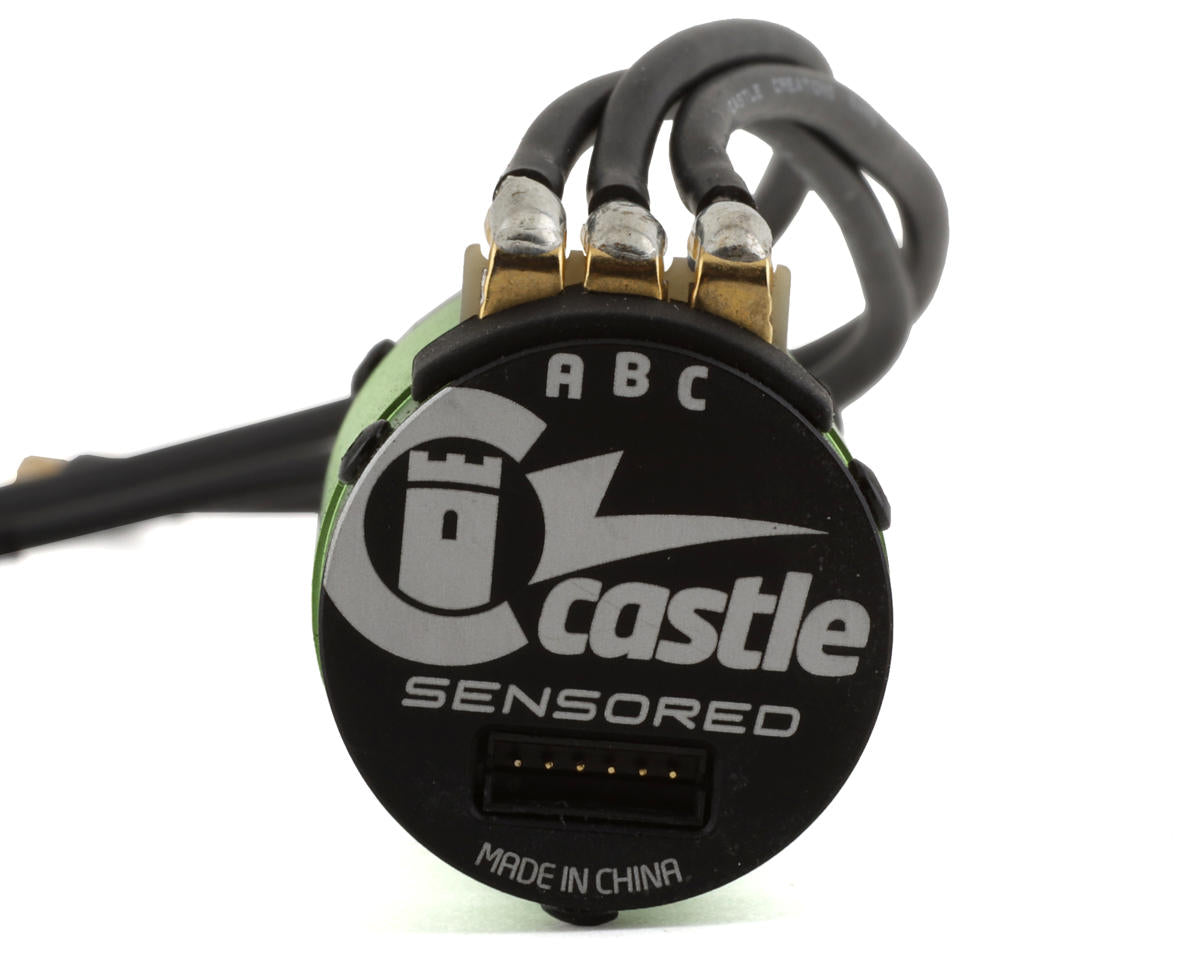

Motor Features

• Improved 4-Pole 12-Slot design
• QUIETSENSE technology helps shield sensors from magnetic field noise
• Flux Shield and secondary Sense Magnets support precise, efficient startups
• Optimized design eliminates the need for mechanical timing adjustments
• 4400Kv rating with an 80,000 maximum RPM
• 4mm male bullet connectors

Specifications

• ESC input voltage: 2S-4S LiPo (16.8V Max)
• ESC size: 41.6mmx29.4mmx21.3mm (1.64" x 1.16" x .84")
• ESC weight: 1.66oz (47g), with wires
• ESC connectors: 3.5mm bullets
• Motor length: 59.5mm
• Motor diameter: 28.25mm
• Motor weight: 5.17oz (146.5g), with wires
• Motor shaft: 15mm length, 1/8" (3.17mm) diameter
• Motor mounting holes: 2.5mm holes @ 14 and 16mm/3mm @ 19mm
• Recommended vehicle weight: 3lbs

Includes

• Mamba Micro X2 ESC
• 1010-4400Kv Brushless Sensored Motor
• Quick Start Guide
• Castle Decals

Important Product Use Information

• Applying voltages higher than 16.8 volts will cause irreparable damage to the controller and void the warranty.
• The battery input wires are bare; a battery connector must be added. Castle recommends a high current connector rated for at least 40 amps, including Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60.
• The Mamba Micro X2 is waterproof but is not intended for operation while completely submerged. Rinse the ESC with clean water after exposure to corrosive materials or dirt.
• Confirm that the rest of the vehicle, including batteries, servos, radio and chassis, is waterproof before exposing it to liquids.
• Never exceed 180°F on the motor or ESC.
