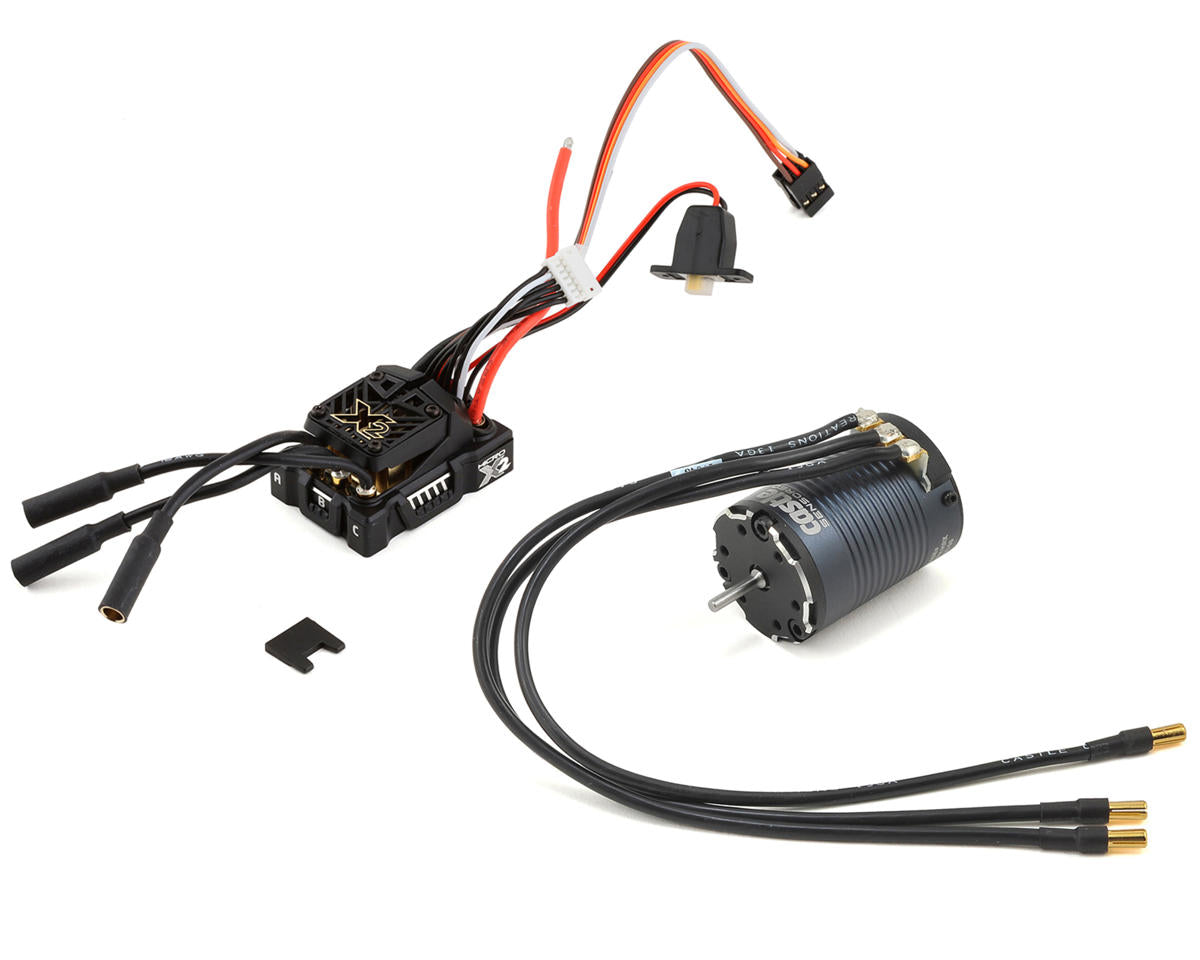

Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Combo w/2280Kv Slate

The Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Combo pairs a Mamba Micro X2 ESC with a 1406-2280Kv sensored motor. Designed for low-speed crawling and trail running, the combo supports 2S-4S LiPo input and includes features such as data logging, Cryo-Drive Technology, active drag brake and adjustable drag brake ramp.

ESC Features

• Input voltage: 2S-4S LiPo (16.8V Max)
• Waterproof design for use in nearly any environment
• Upgraded internal 2-Amp adjustable BEC with 5.5v or 7.5v output; 5.5v default
• Sensored motor support
• Convenient transmitter programming for six common adjustable settings
• Data logging and Cryo-Drive Technology
• Telemetry ready with the Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR transmitters
• Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake
• Audible alerts for calibration and error conditions
• 41.6 mm x 29.4 mm x 21.3 mm; 1.66 oz / 47 grams with wires
• 4.0mm bullet connectors
• Waterproof on/off switch; cooling fan not included

Motor Specifications

• Model: 1406-2280Kv sensored motor
• Input voltage: 2S-4S LiPo
• Max. RPM: 100,000
• Dimensions: 49.5mm can length and 36mm can diameter
• Weight: 197 g / 6.9oz with wires
• Shaft: 15mm length, 1/8" (3.17mm) diameter
• Mounting: M3 @ 25mm
• 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire
• Includes 210mm length sensored wire

Application Guidelines

• Ideal for 1:10 scale low speed rock crawlers and trail runners on 3S-4S weighing less than 8lbs.
• Can also be used in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs for more aggressive driving styles.
• For 1:14 scale RC hobby vehicles, the maximum recommended vehicle weight is 3.0lbs.

Included

• Mamba Micro X2 ESC with 4mm Connectors
• 1406-2280Kv Sensored Motor

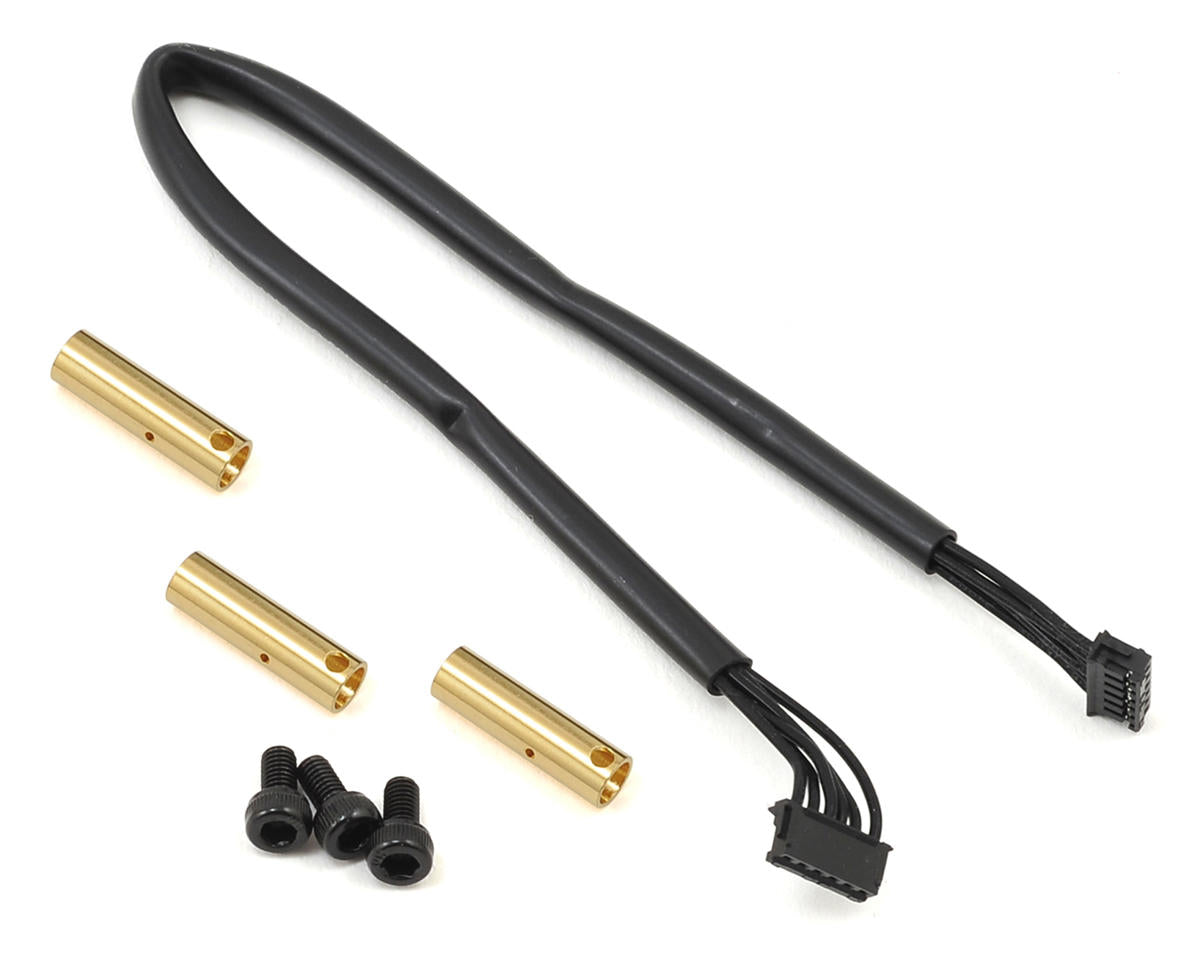

• Sensor Harness
• Coupon for free Castle Link USB adapter
• Driver's Ed and Quick Start Guide
• Castle Decals

Additional Information

• Battery input wires are bare; a battery connector must be added. Castle recommends Castle 4.0mm Polarized Connectors, Deans Ultra Plugs or XT60 connectors, with a high-current connector rated for at least 40 amps.
• Applying voltages higher than 16.8 volts will cause irreparable damage to the controller and void the warranty.
• Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. Rinse the ESC with clean water after exposure to corrosives or dirt.
• Additional settings and software updates are available through Windows®-based Castle Link software and USB adapter or the Castle Link App for Android or iOS with a B-LINK Bluetooth Adapter, sold separately.
• Backed by a manufacturer 1-year warranty.
