Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Combo w/1900Kv Slate

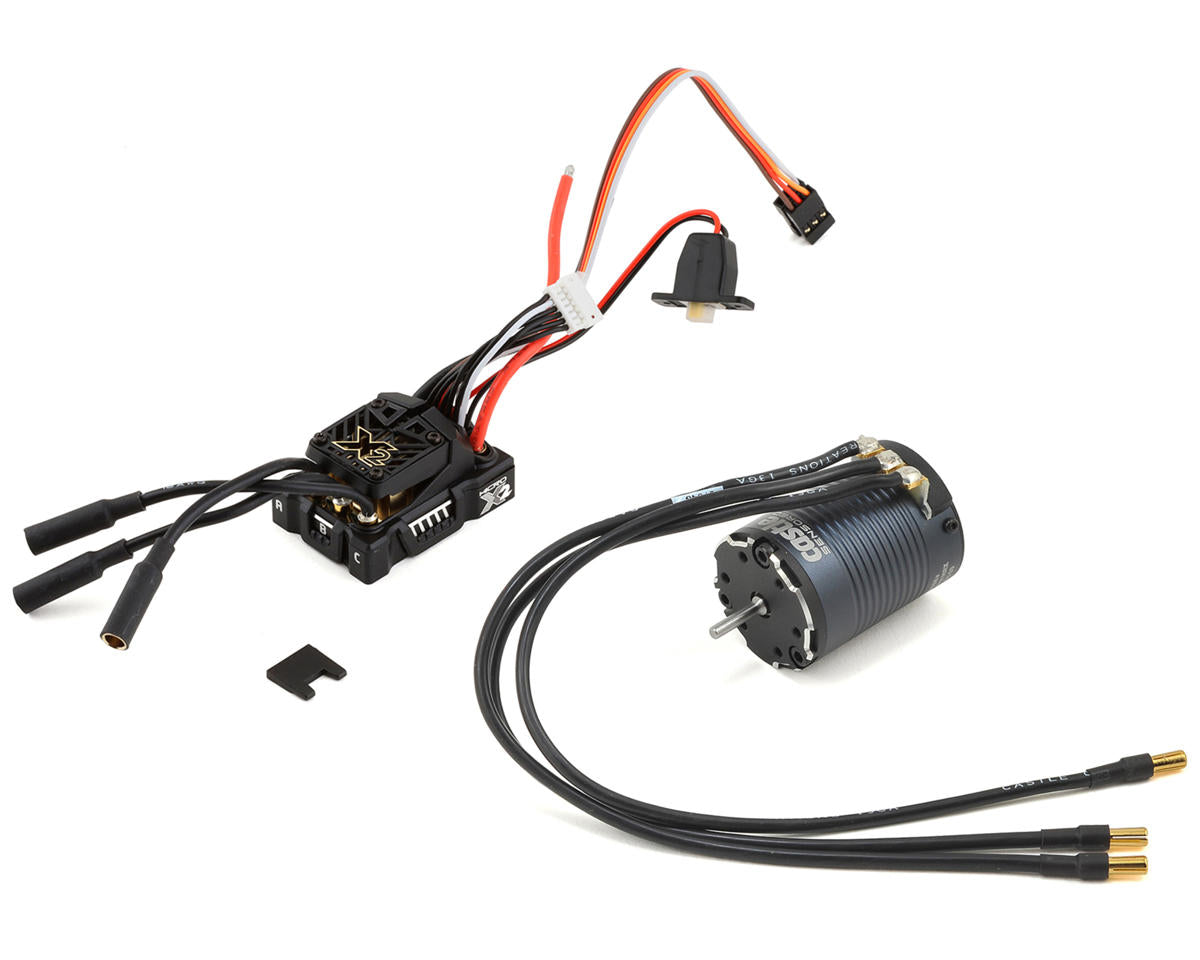

The Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Combo pairs the Mamba Micro X2 Crawler ESC with a 1406-1900Kv sensored motor. Designed for low-speed crawling and trail running, it supports 2S-4S LiPo input and includes features such as data logging, Cryo-Drive Technology, active drag brake and drag brake ramp.

ESC Features

• 2S-4S LiPo input voltage range, 16.8V maximum
• Waterproof design for use in nearly any environment; not intended for complete submersion
• Sensored motor support
• Upgraded internal 2-Amp adjustable BEC with 5.5v or 7.5v output; 5.5v default
• Proportional brake and reversible operation, with reverse disable option
• Waterproof on/off switch
• Telemetry ready for the Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR transmitters
• Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake
• Audible alerts for calibration and error conditions
• Additional settings and software updates are available through Windows®-based Castle Link software and USB adapter or the Castle Link App for Android or iOS with a B-LINK Bluetooth Adapter, sold separately

ESC Specifications

• Size: 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
• Weight with wires: 1.66 oz / 47 grams
• Connectors: 4.0mm bullets
• Cooling fan: Not included
• Maximum recommended vehicle weight: 1:14 scale vehicles up to 3.0lbs and 1/10 scale low speed crawler vehicles up to 9lbs

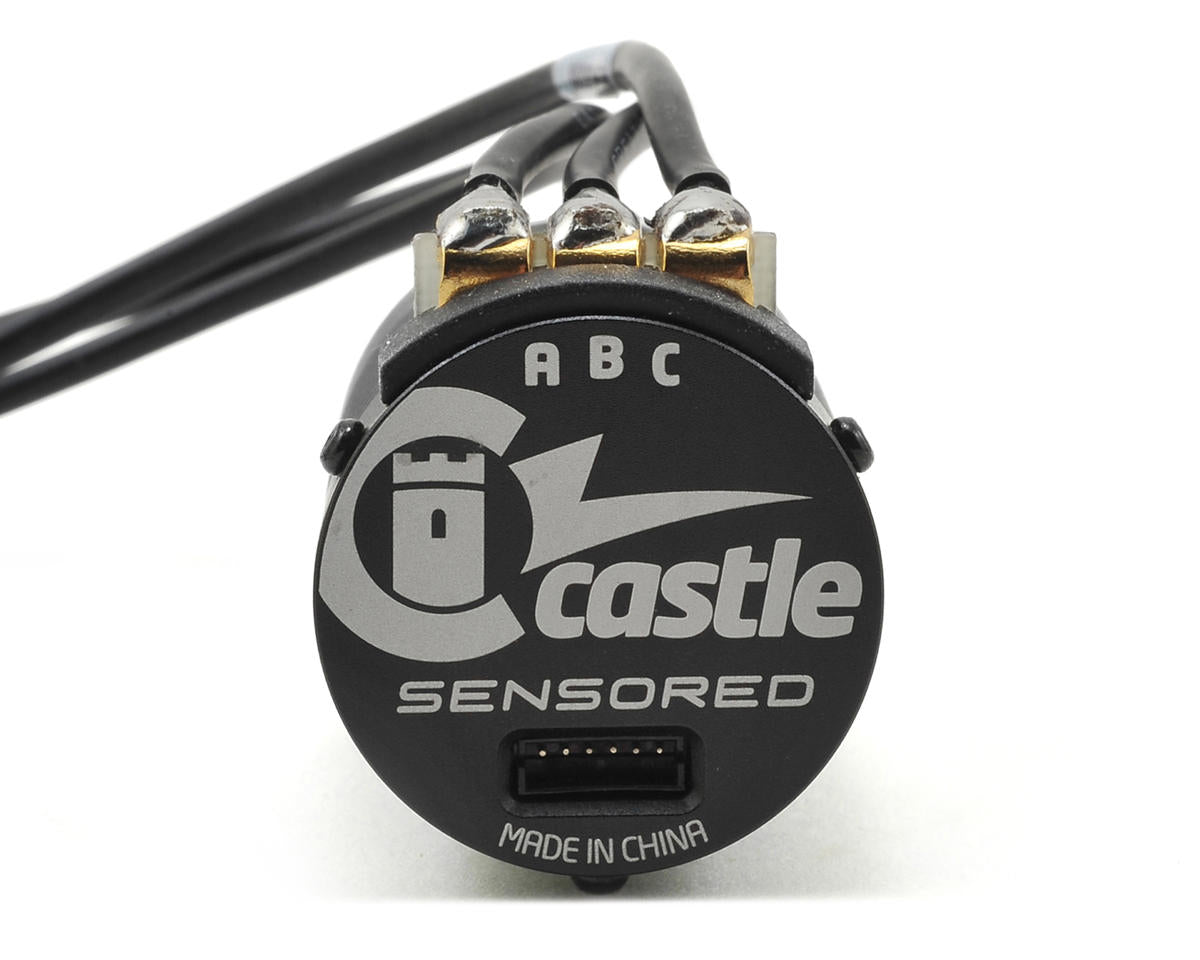

Motor Specifications

• Input voltage range: 3S-4S LiPo
• Kv: 1900
• Maximum RPM: 100,000
• Can length: 49.5mm
• Can diameter: 36mm
• Weight with wires: 197 g / 6.9oz
• Shaft length: 15mm
• Shaft diameter: 1/8" (3.17mm)
• Mounting holes: M3 @ 25mm
• Connectors: 4mm male Castle Bullet Connectors on replaceable 13 gauge wire
• Includes a 210mm length sensored wire

Application Guidelines

This combo is intended for 1:10 scale low-speed rock crawlers and trail runners on 3S-4S weighing less than 8lbs. It can also be used in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs for more aggressive driving styles.

What's Included

• Mamba Micro X2 ESC with 4mm connectors
• 1406-1900Kv sensored motor

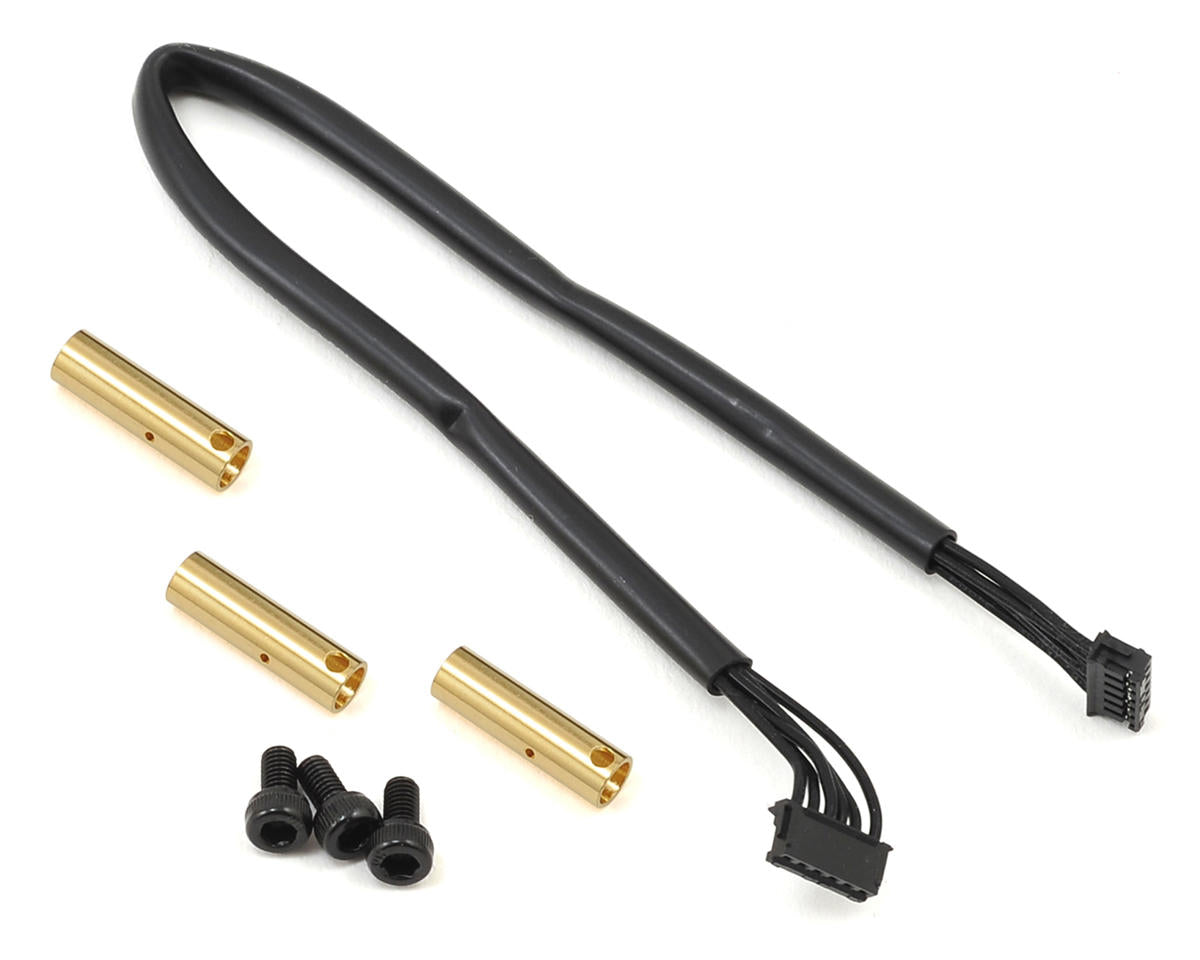

• Sensor harness
• Coupon for a free Castle Link USB adapter
• Driver's Ed and Quick Start Guide
• Castle decals

Important Notes

• A battery connector must be added to the bare battery leads. Castle recommends a high-current connector rated for at least 40 amps; Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
• Applying more than 16.8 volts can cause irreparable controller damage and void the warranty.
• Castle recommends 30C continuous discharge or higher LiPo batteries, or high-quality 25C batteries such as Traxxas® Power Cell.
• Rinse the ESC with clean water after exposure to corrosive materials or dirt. Confirm that the vehicle's batteries, servos, radio and chassis are also waterproof before exposing the vehicle to liquids.
• Backed by a manufacturer 1-year warranty.
