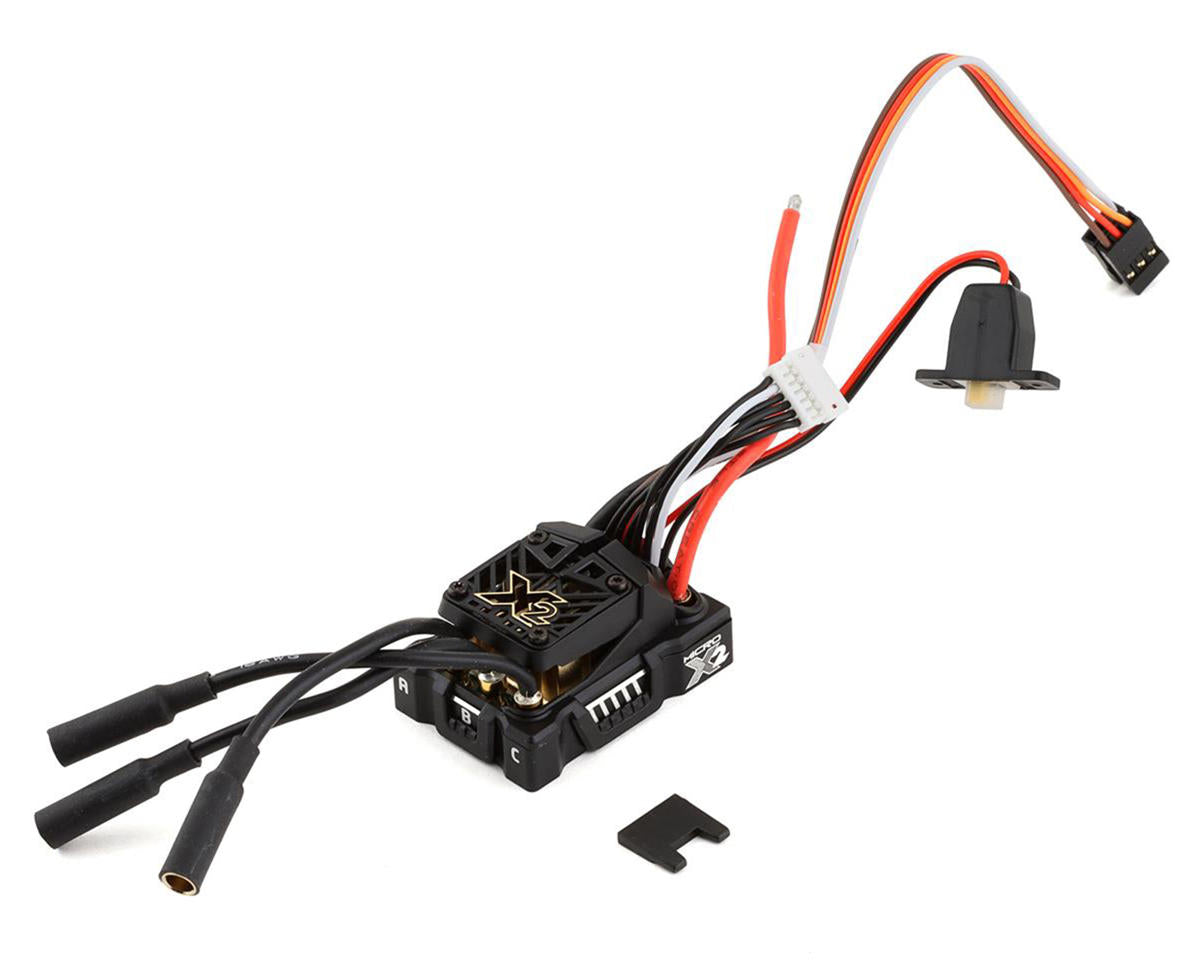

Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Brushless ESC

The Castle Creations Mamba Micro X2 Crawler Waterproof Sensored Brushless ESC is designed for compact RC crawlers and trail vehicles where low weight and limited space matter. It supports 2S-4S LiPo power, sensored motors, active drag brake functionality, data logging and Cryo-Drive Technology for cooler, more efficient operation at partial throttle.

Features

• 2S-4S LiPo input voltage range, with a 16.8V maximum
• Waterproof design for use in nearly any environment; not intended for complete submersion
• Sensored motor capable
• Active drag brake and drag brake ramp
• Proportional brake and reversible operation, with reverse disable capability
• Transmitter programming for six common adjustable settings
• Additional settings and software updates through Windows®-based Castle Link software and USB adapter, or the Castle Link App for Android or iOS with a B-LINK Bluetooth Adapter
• Telemetry ready for the Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR transmitters
• Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake
• Audible alerts for calibration and error conditions
• Waterproof on/off switch

Specifications

• Input Voltage Range: 2S-4S LiPo (16.8V Max)
• BEC: 2A Peak, 5.5v or 7.5v (5.5v default)
• Brake: Proportional
• Reversible: Yes, but may be disabled
• Cooling Fan: Not included
• Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
• Weight (with wires): 1.66 oz / 47 grams
• Connectors: 4.0mm bullets

Application Guidelines

• 1:14 scale RC hobby vehicles weighing up to 3.0lbs
• 1/10 scale low speed crawler vehicles up to 9lbs
• Castle 0808 4100Kv: maximum 3S LiPo or 8 NiMH
• Castle 0808 5300Kv: maximum 3S LiPo or 8 NiMH
• Castle 0808 8200Kv: maximum 2S LiPo or 8 NiMH
• Maximum recommended vehicle weight: 2.25 lbs, with batteries, ready-to-run

In the Box

• Mamba Micro X2 ESC with 4mm connectors
• Sensor harness
• Coupon for free Castle Link USB adapter
• Driver's Ed and Quick Start Guide
• Castle decals

Important Notes

• Applying voltages higher than 16.8 volts will cause irreparable damage to the controller and void the warranty.
• The battery input wires are bare; add the connector of your choice. Castle recommends a high-current connector rated for at least 40 amps. Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
• Minimum recommended battery capacity for 1:18 scale vehicles is 1500mAh.
• Castle recommends 30C continuous discharge or higher LiPo batteries, or high-quality 25C batteries such as Traxxas® Power Cell.
• Rinse the ESC with clean water after exposure to corrosive materials or dirt. Confirm that the batteries, servos, radio and chassis are also waterproof before exposing the vehicle to liquids.
