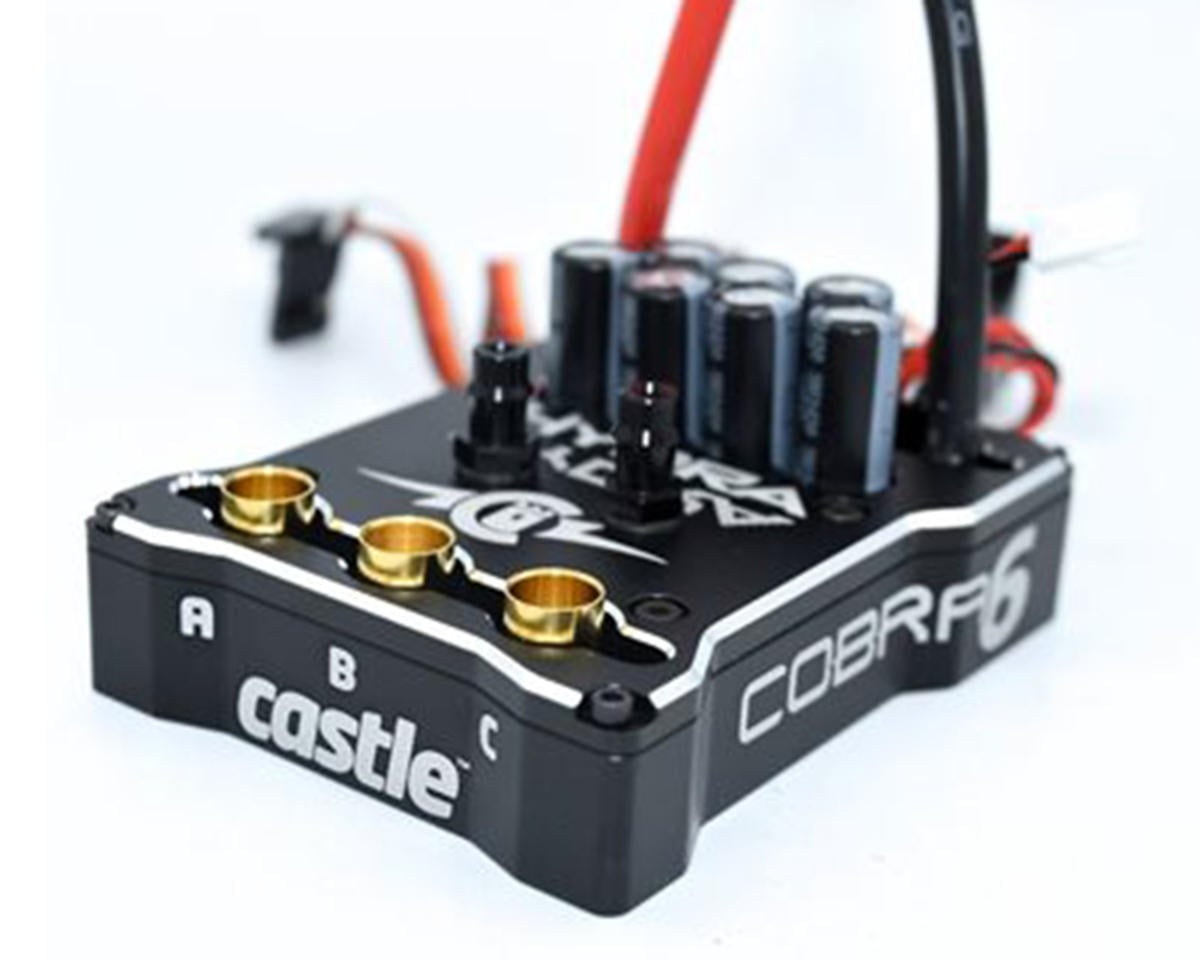

Castle Creations Hydra Cobra 6 8S Brushless Marine ESC

The Castle Creations Hydra Cobra 6 8S Brushless Marine ESC is designed for boats up to 36in and features a custom water-cooled heatsink, CNC aluminum case, waterproof epoxy potting, and dual anodized water fittings.

Its 32-bit processing supports smooth motor control, while enhanced data logging provides increased sample rates, extended storage capacity, and ESC timing and acceleration data points. Adjustable braking and reverse curves, a highly adjustable internal BEC, and upgraded current-sensing and thermal protection provide expanded setup control.

The Hydra Cobra 6 is programmable through Castle Link V4. Optional Bluetooth programming is available with the Castle Creations B-Link Bluetooth Interface (CSE011-0181-00, sold separately).

Features

• 32-bit processing for smooth motor control
• Custom water-cooled heatsink
• CNC aluminum case with waterproof epoxy potting
• Dual anodized water fittings
• Enhanced data logging with increased sample rate
• Extended data log storage capacity
• ESC timing and acceleration data points
• Highly adjustable internal BEC
• Improved braking and reverse curve tuning
• Upgraded current-sensing and thermal protection

Specifications

• Suggested Application: Boats up to 36in
• Motor Type: Brushless
• Input Voltage: 2-8S LiPo (7.4-33.6V)
• Continuous Current: 140A
• Burst Current: 280A
• Dimensions (LxWxH): 2.74x2.13x0.97in (69.5x54.1x24.7mm)
• Weight: 5.49oz (155.5g)
• BEC Voltage: 5.0-8.5V (Adjustable)
• BEC Peak Current: 8A
• Motor Connector: 6.5mm Bullet
• Battery Connector: Bare Wire
• Programmable: Yes

Includes

• (1) Hydra Cobra 6 8S Brushless Marine ESC
• (1) Castle Link V4 USB Adapter
• (1) Cobra Decal Sheet
• (1) Hydra Cobra 6 Quick Start Guide
