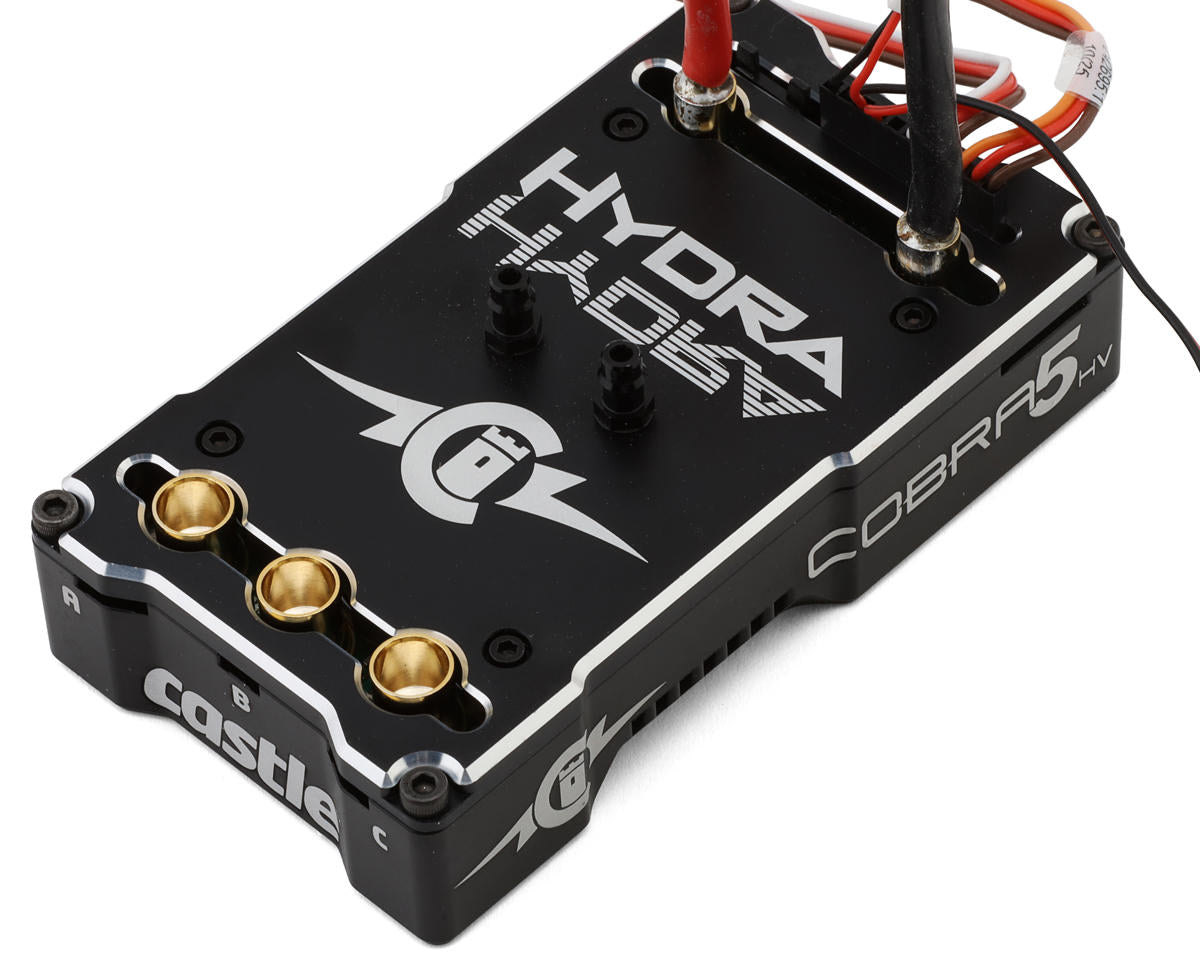

Castle Creations Hydra Cobra 5 HV 12S Brushless Marine ESC

The Castle Creations Hydra Cobra 5 HV 12S Brushless Marine ESC is designed for boats up to 50 inches and features 32-bit processing for smooth motor control and fast response. Built on the Cobra 5 architecture, it supports up to 12S LiPo power and includes CRYO-DRIVE technology to reduce heat during partial-throttle operation.

A machined water-cooled heatsink with dual anodized fittings and a rugged CNC aluminum case potted in waterproof epoxy provide a marine-focused design. Upgraded current sensing, thermal protection, enhanced data logging, accelerometer measurements, and electrical motor timing support detailed setup and monitoring.

Wireless tuning is available through the B-Link2 Bluetooth Interface and Castle Link 2 app. The ESC also supports auxiliary wiring, transmitter programming, and programming with the included Castle Link V4 USB adapter.

Features

• 32-bit processing for smooth motor control and fast response
• Supports up to 12S LiPo (50.4V)
• Built on the proven Cobra 5 architecture
• Machined water-cooled heatsink with dual anodized fittings
• Rugged CNC aluminum case potted in waterproof epoxy
• CRYO-DRIVE technology reduces heat during partial throttle operation
• Upgraded current-sensing and thermal protection
• Enhanced data logging with accelerometer and electrical motor timing
• Wireless tuning via B-Link2 Bluetooth Interface and Castle Link 2 app
• Auxiliary wire and transmitter programming for on-the-fly adjustments

Specifications

• Suggested Application: Boats up to 50"
• Motor Type: Brushless - Sensored
• Input Voltage: 6-12S LiPo (22.2-33.6V)
• Continuous Current: 180A
• Burst Current: 350A
• Dimensions (LxWxH): 4.72x1.46x2.64in (120x37.2x67mm)
• Weight: 18.1oz (513g)
• BEC Voltage: 5.5-8.5V (Adjustable)
• Motor Connector: 8.0mm Bullet
• Battery Connector: Bare Wire
• Programmable: Yes with Castle Link V4 USB adapter

Includes

• Hydra Cobra 5 HV ESC
• Cobra decals
• Castle Link V4 USB Adapter
• Hydra Cobra Quick Start Guide

Tech Note

Due to the high power nature of the Hydra Cobra 5 HV, appropriately sized batteries and connectors are required. A minimum 150 amp connector is recommended; examples include Castle 6.5mm polarized, EC8, and QS8. Do not use XT90, Traxxas, EC5/IC5, or any other connectors rated below 150 amps continuous.
