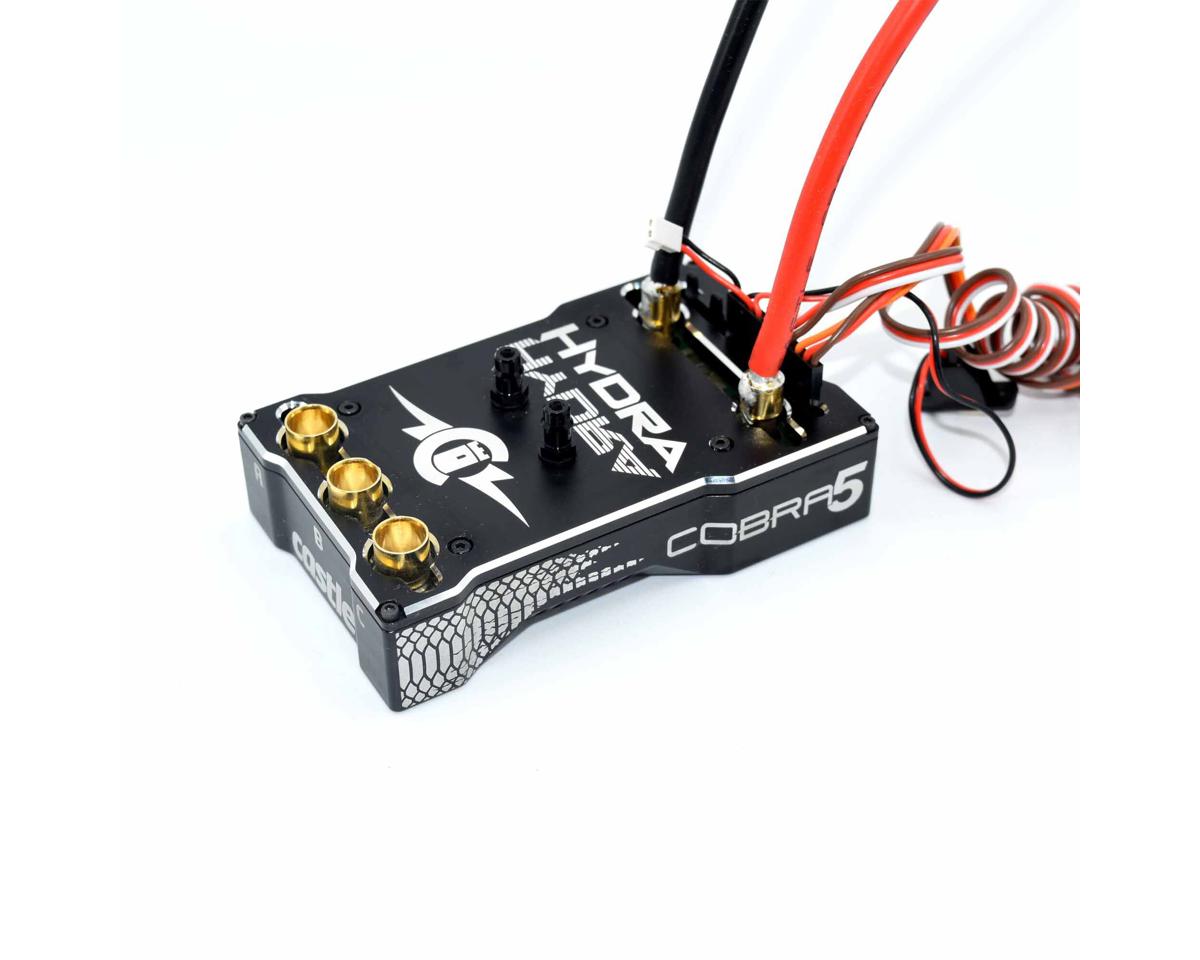

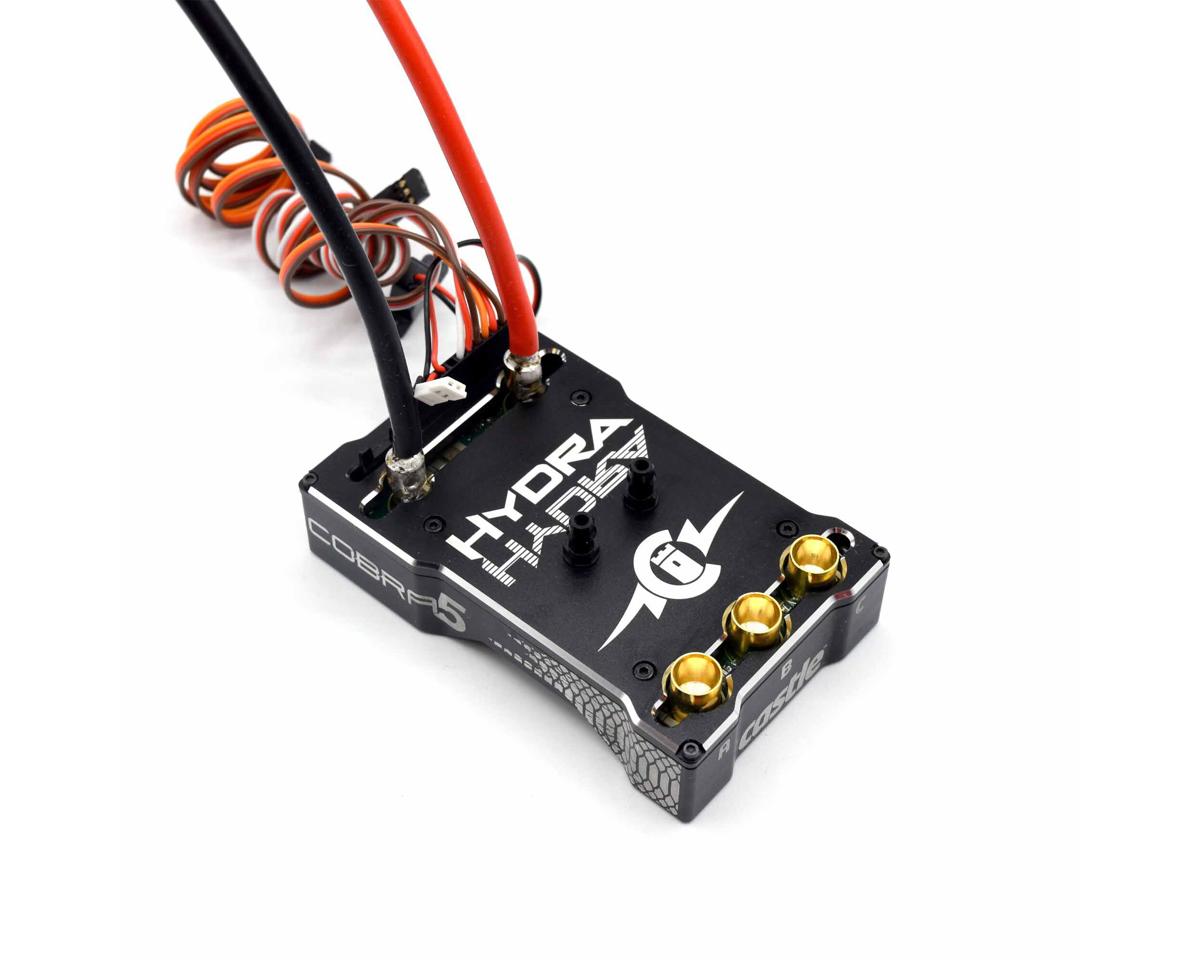

Castle Creations Hydra Cobra 5 8S Brushless Marine ESC

The Castle Creations Hydra Cobra 5 8S Brushless Marine ESC is designed for boats up to 50" and supports 3-8S LiPo (11.1-33.6V) power. Its marine-focused design combines a water-cooled heatsink, waterproof CNC aluminum housing, advanced thermal and current protection, and CRYO-DRIVE™ technology.

Features

• 32-bit processing power
• Enhanced data logging
• Water-cooled heatsink
• CRYO-DRIVE™ technology
• Waterproof CNC aluminum housing
• Integrated adjustable BEC
• Advanced thermal and current protection
• Transmitter programming support
• Audible alerts and diagnostics
• Programmable with the Castle Link V4 USB adapter

Specifications

• Suggested Application: Boats up to 50"
• Motor Type: Brushless - Sensored
• Input Voltage: 3-8S LiPo (11.1-33.6V)
• Continuous Current: 180A
• Burst Current: 350A
• Dimensions (LxWxH): 43.98x2.49x1.34in (101.2x63.3x34mm)
• Weight: 2.9oz (365g)
• BEC Voltage: 5.5-8.5V (Adjustable)
• BEC Peak Current: 20A
• Motor Connector: 8.0mm Bullet
• Battery Connector: Bare Wire
• Programmable: Yes with Castle Link V4 USB adapter

Included

• (1) Hydra Cobra 5 ESC
• (1) Cobra decals
• (1) Castle Link V4 USB Adapter
• (1) Hydra Cobra Quick Start Guide

Connector Requirement

Use a minimum 150 amp connector. Examples include Castle 6.5mm polarized, EC8, and QS8. Do not use XT90, Traxxas, EC5/IC5, or other connectors rated below 150 amps continuous.
