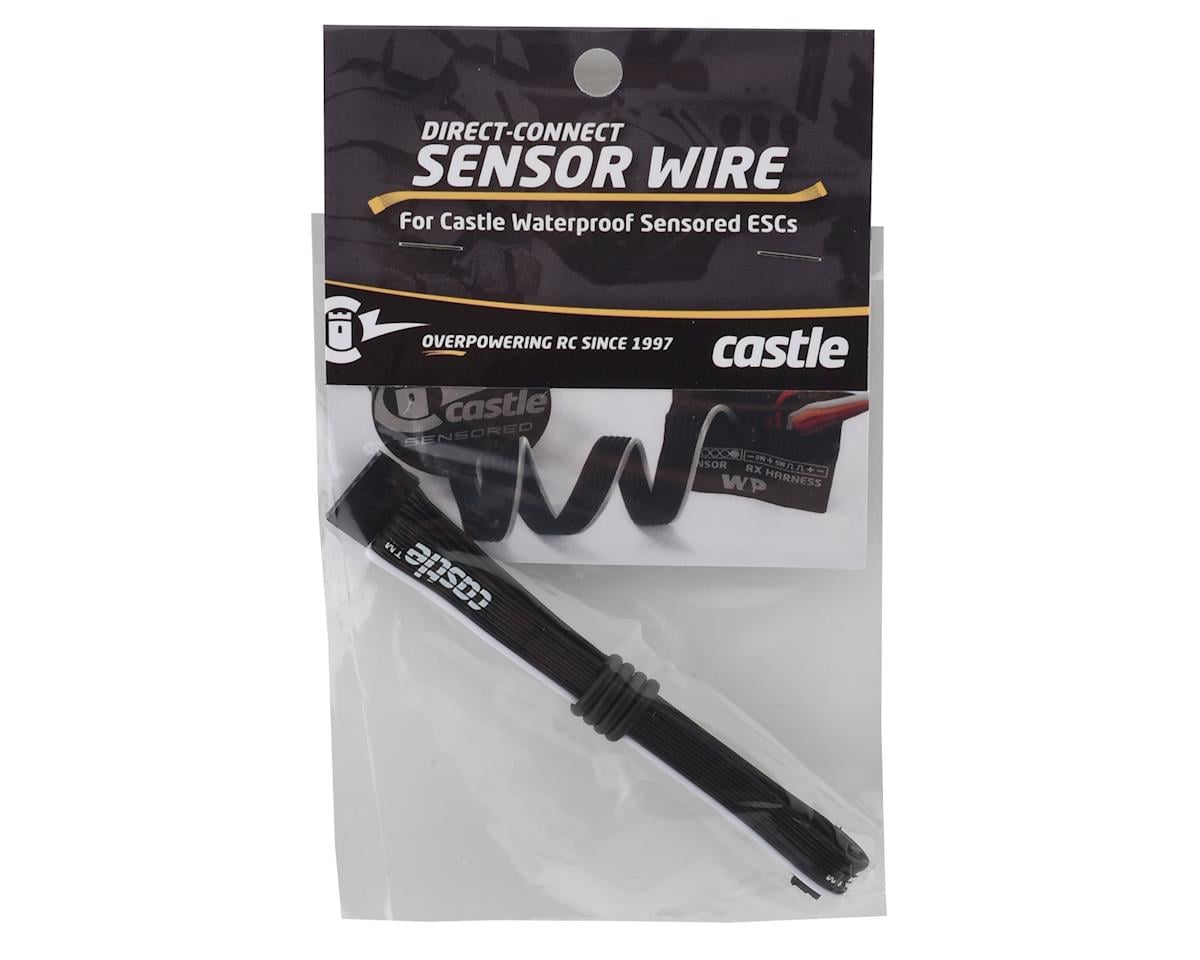

Castle Creations Direct Connect Sensor Wire (300mm)

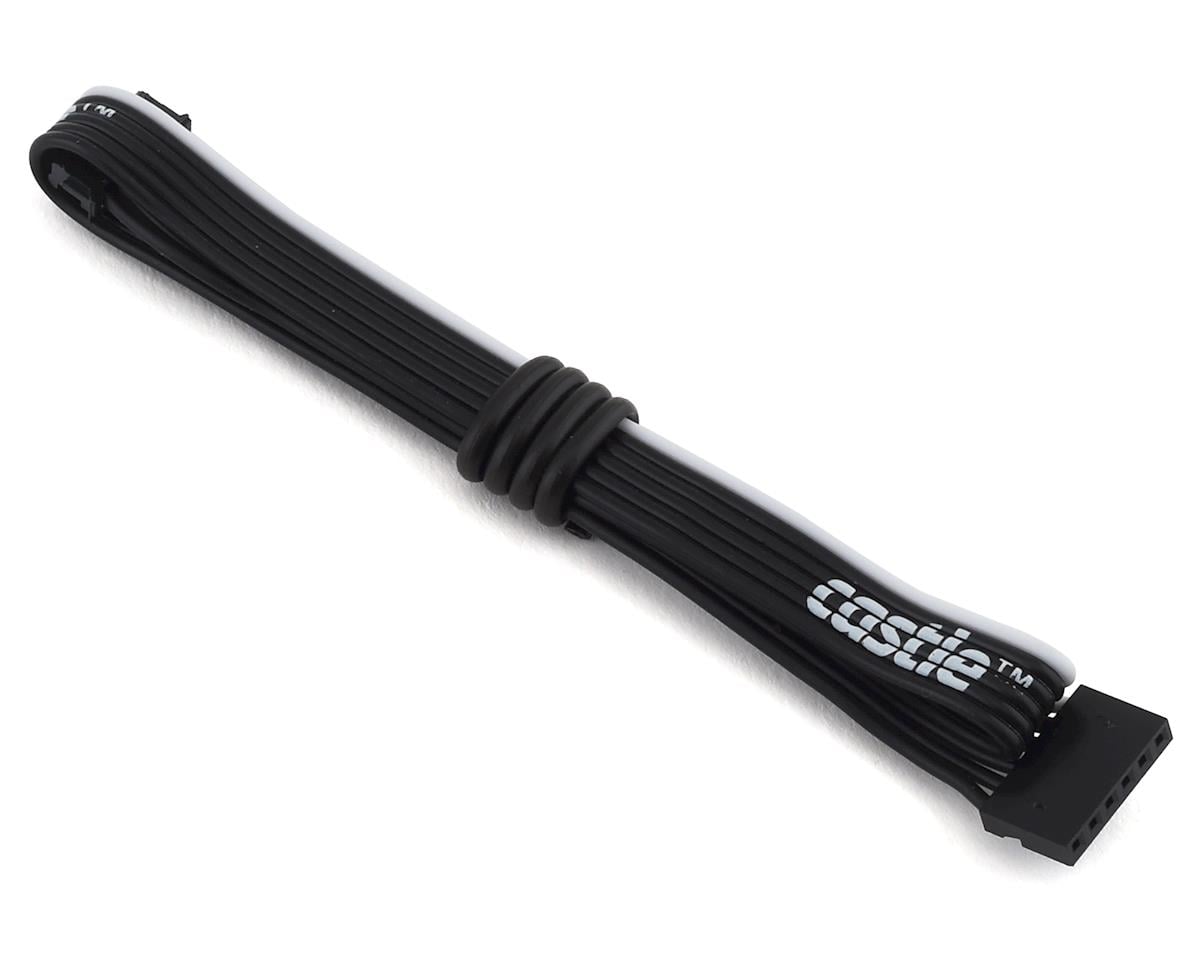

The Castle Creations Direct Connect Sensor Wire eliminates the need for a Castle sensor harness adapter, removing a connection point for a cleaner installation. It features a standard ROAR sensor plug for connection to the back of any sensored motor and plugs directly into compatible Castle waterproof, sensored-capable ESCs.

Product Details

• Length: 300mm (11.8")
• Standard ROAR sensor plug
• Direct connection to compatible Castle ESCs

Compatible ESCs

• Mamba Micro X
• Mamba Micro X2
• Mamba X
• Mamba Monster X
• Mamba Monster X 8s
• Mamba XLX2
• Copperhead 10

Installation Notes

• Mamba Micro X: Unplug the existing sensor harness or dust cover from the ESC, then plug in the direct connect sensor wire. Align the white wire with the corresponding white dot on the side of the ESC.
• Mamba X: Remove the two screws beside the capacitors using a 1.5mm hex, remove the wire harness retainer, and unplug the existing sensor harness. Plug in the direct connect sensor wire with the white wire aligned to the corresponding white dot, then reinstall the retainer and screws.
