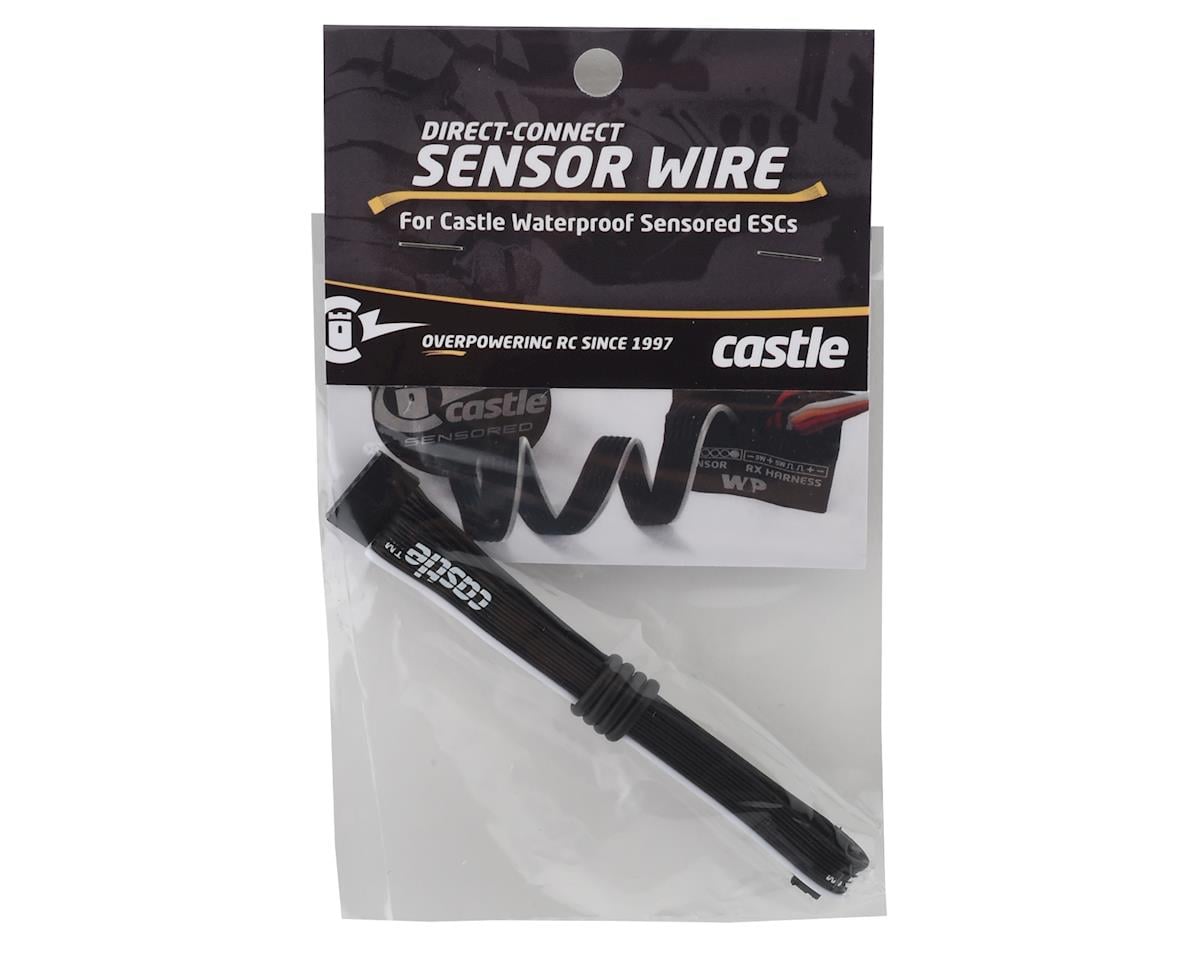

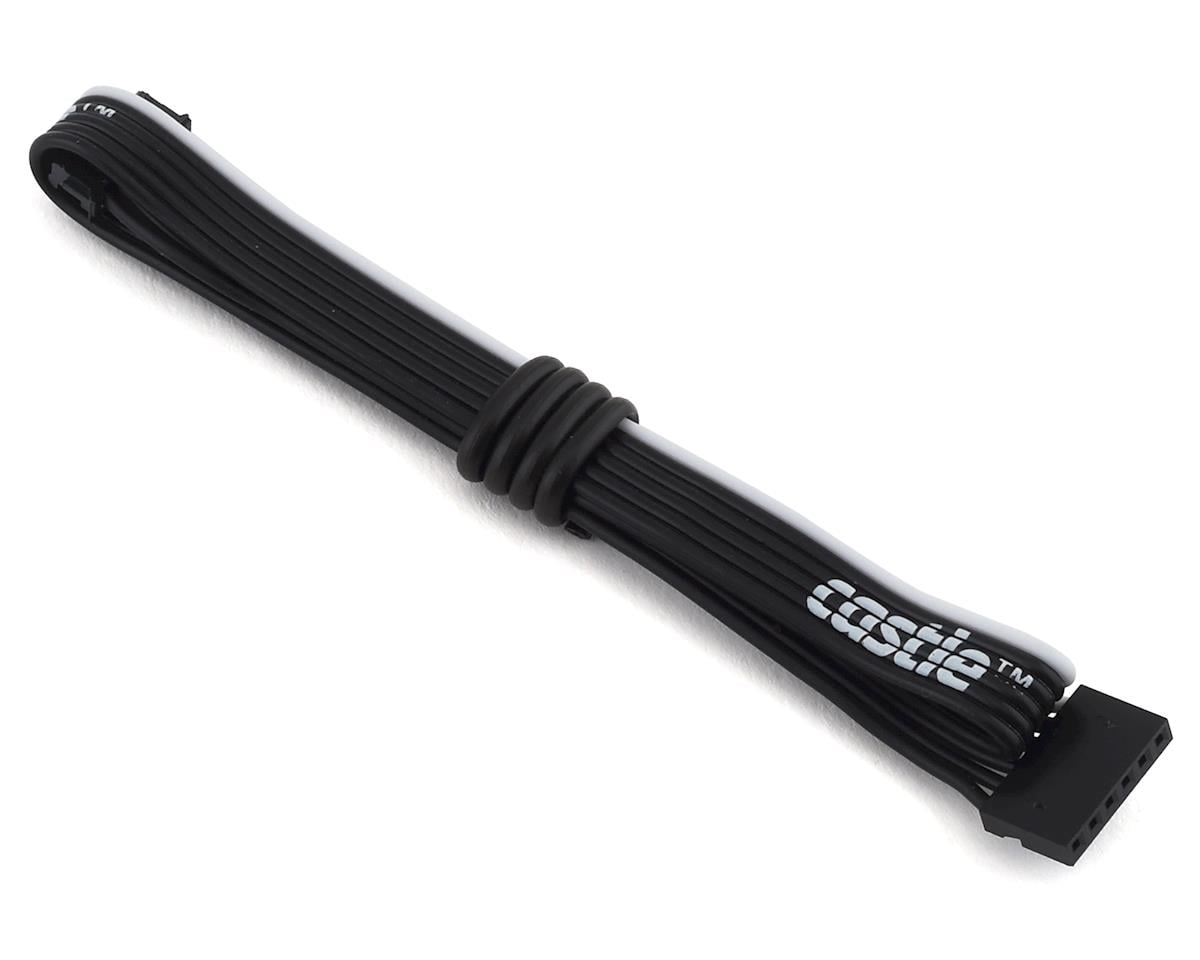

Castle Creations Direct Connect Sensor Wire (250mm)

The Castle Creations Direct Connect Sensor Wire provides a direct connection between a sensored motor and a compatible Castle ESC, eliminating the need for a Castle sensor harness adapter and one connection point. This 250mm wire has a standard ROAR sensor plug on one end and connects directly to compatible Castle waterproof, sensored-capable ESCs.

Compatible ESCs

• Mamba Micro X
• Mamba Micro X2
• Mamba X
• Mamba Monster X
• Mamba Monster X 8s
• Mamba XLX2
• Copperhead 10

Installation Notes

• Mamba Micro X: Unplug the existing sensor harness or dust cover from the ESC, then plug in the Direct Connect Sensor Wire. Align the white wire with the corresponding white dot on the side of the ESC.
• Mamba X: Remove the 2 screws beside the capacitors using a 1.5mm hex, remove the wire harness retainer, and unplug the existing sensor harness. Plug in the new wire while aligning the white wire with the corresponding white dot, then reinstall the retainer and screws.

Available Lengths

• 200mm (7.9")
• 250mm (9.8")
• 300mm (11.8")
