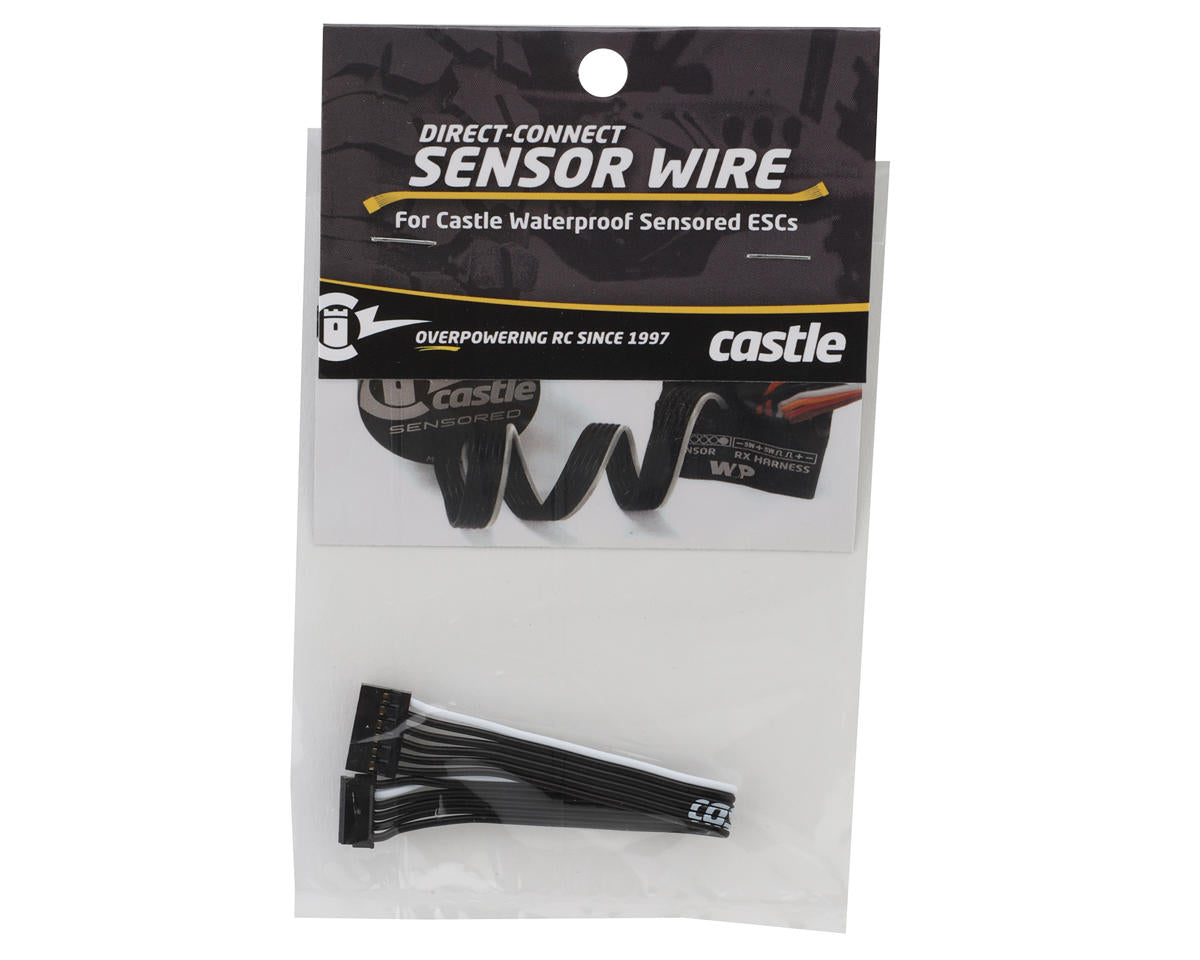

Castle Creations Direct Connect Sensor Wire (100mm)

The Castle Creations Direct Connect Sensor Wire provides a direct connection between a sensored motor and a compatible Castle waterproof, sensored-capable ESC, eliminating the need for a Castle sensor harness adapter and one connection point.

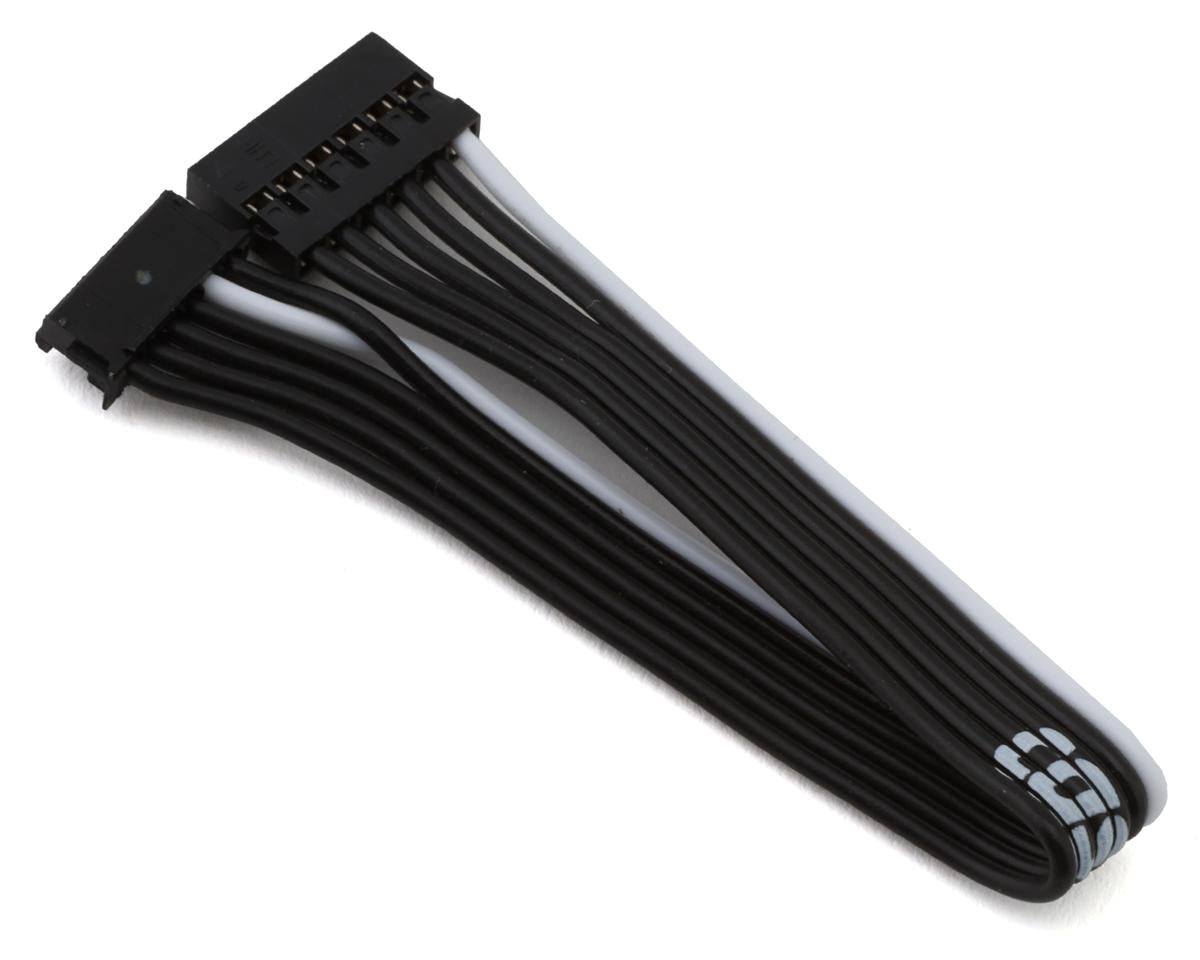

One end features the standard ROAR sensor plug for connection to the back of any sensored motor. The other end plugs directly into the ESC.

Compatible ESCs

• Mamba Micro X
• Mamba Micro X2
• Mamba X
• Mamba Monster X
• Mamba Monster X 8s
• Mamba XLX2
• Copperhead 10

Installation

• Mamba Micro X: Unplug the existing sensor harness or dust cover from the ESC. Plug in the Direct Connect Sensor Wire, aligning the white wire with the corresponding white dot on the side of the ESC.
• Mamba X: Remove the two screws beside the capacitors using a 1.5mm hex, then remove the wire harness retainer. Unplug the existing sensor harness and plug in the Direct Connect Sensor Wire, aligning the white wire with the corresponding white dot on the side of the ESC. Reinstall the wire harness retainer and screws.
