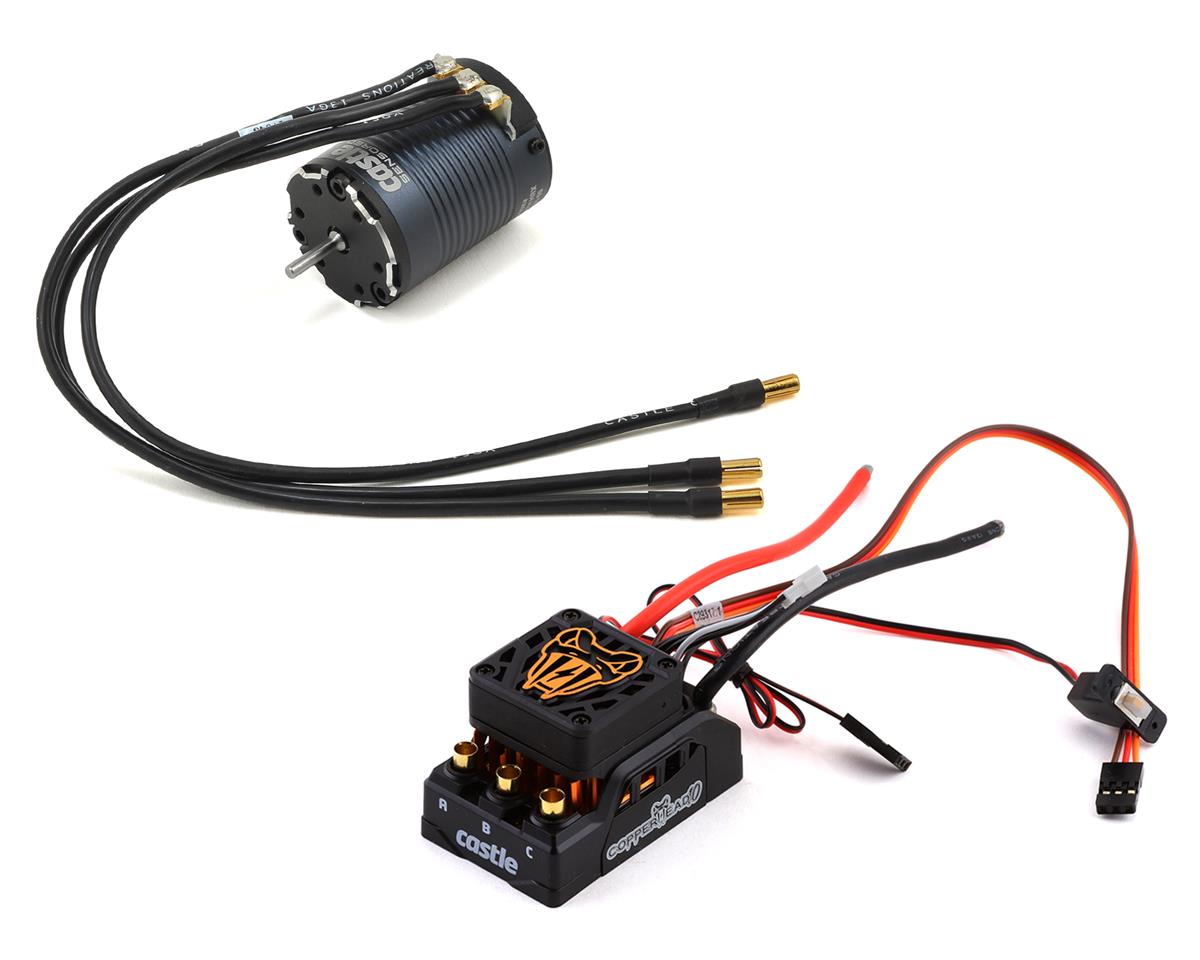

Castle Creations Copperhead 10 Waterproof 1/10 Sensored Combo w/Slate (2280Kv)

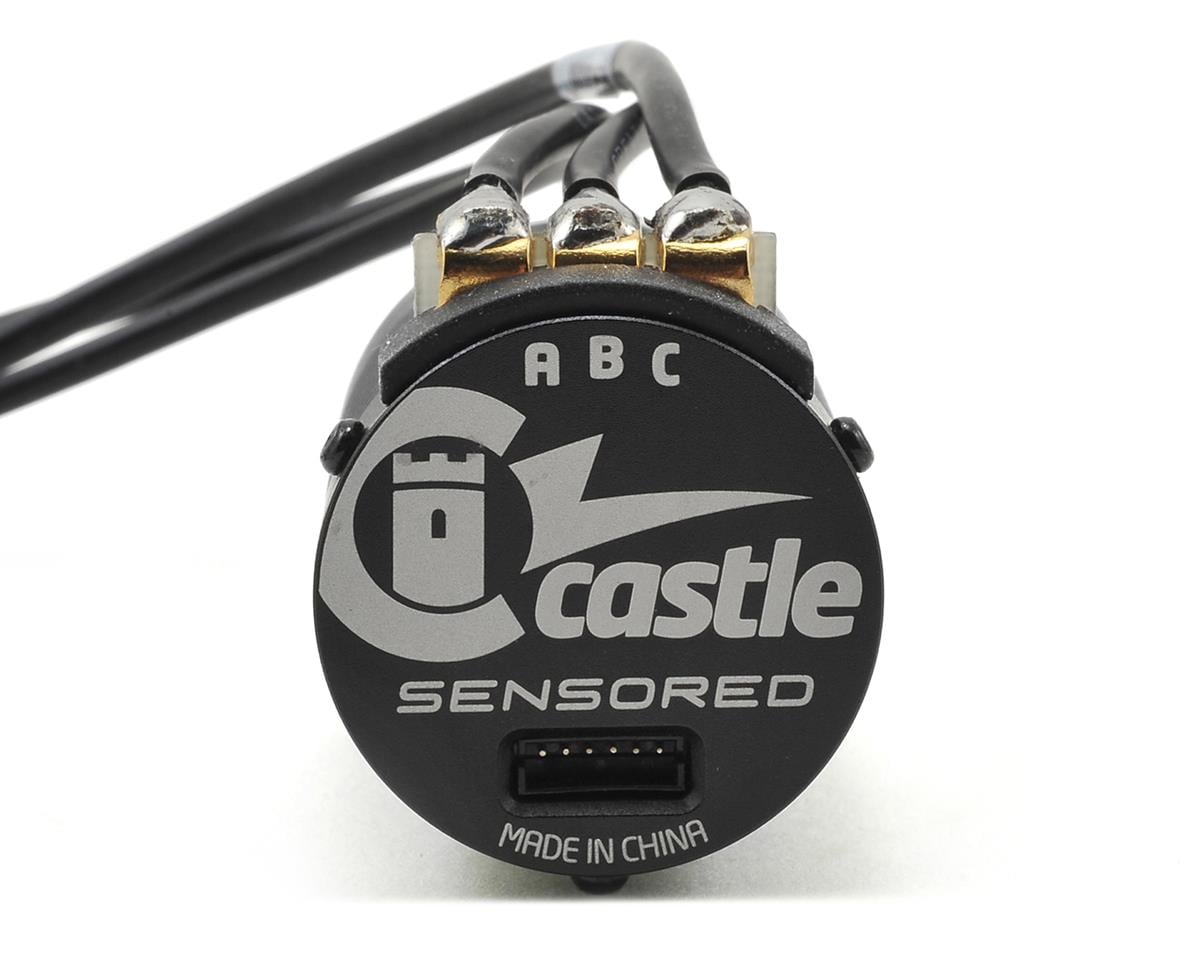

The Castle Creations Copperhead 10 Waterproof 1/10 Sensored Combo includes a Castle Slate 2280Kv sensored motor for 1/10 scale vehicles. Its SMARTSENSE™ technology supports cog-free starts, torque and low-speed drivability, while CRYO-DRIVE™ technology helps reduce heat generation during partial-throttle operation.

Features

• Waterproof ESC design in a durable injection molded case
• CRYO-DRIVE™ technology
• SMARTSENSE™ technology with sensored, sensorless and brushed motor operation
• Data Logging Lite with battery voltage, battery ripple, controller temperature, motor RPM and motor temperature data points
• Selectable 5.5V or 7.5V internal BEC with 6A peak output
• 30mm removable cooling fan and dual-use fan guard included
• Fully programmable using Castle Link software and a Castle Link USB adapter, or wirelessly with the Castle Link iOS® or Android® app and B-LINK™ Bluetooth™ Adapter
• Telemetry Link capable with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX
• Backed by the Castle Creations one-year warranty

Specifications

• Input voltage: 2s-4s (16.8V)
• Recommended motors: Castle 1406, 1410, 1412 and 1415 Series Sensored 4-Pole Brushless Motors
• Running modes: SMARTSENSE™, Sensored Only and Brushed motor operation
• BEC: Selectable 5.5V or 7.5V (6A peak)
• Connector type: 4mm female bullets for motor connection
• On/Off switch: Yes
• Size: 2.19x1.39x1.33" (L x W x H with fan)
• Weight: 70.9 g / 2.50 oz. (with fan)
• Data logging: Data Log Lite with 5 data points; sample frequency of 1 and 5 per second

Important Notes

• Not compatible with Castle Field Link program card (CSE010-0063-00).
• A battery connector is needed; Castle 4mm polarized connectors, XT60, Dean's Ultra Plug, or Traxxas Power Connector are recommended.
• Remove the cooling fan before driving in wet conditions; the fan is not waterproof.
• Although the Copperhead 10 is waterproof, it is not intended for operation while completely submerged in liquid. Rinse the ESC with clean water after exposure to corrosive materials or dirt.
