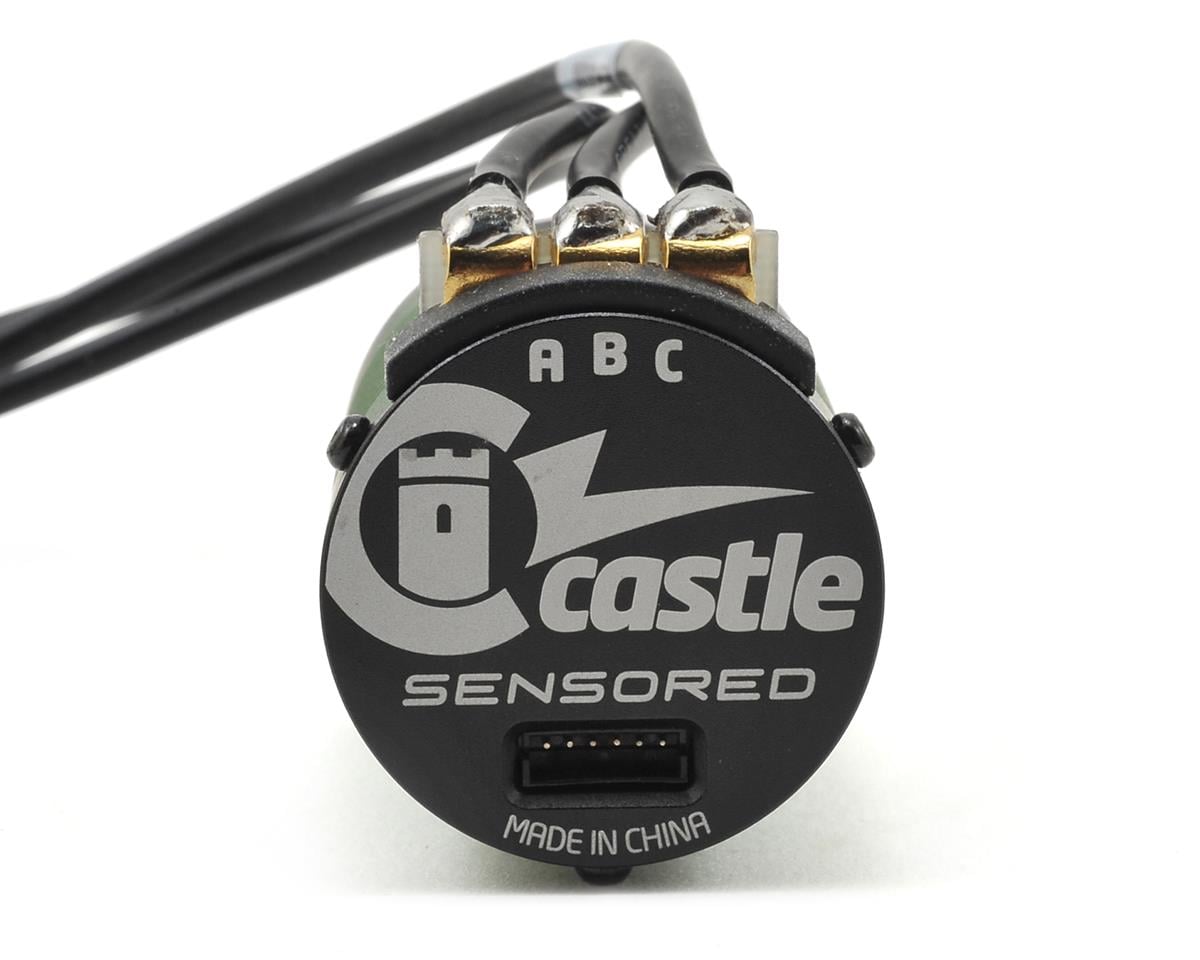

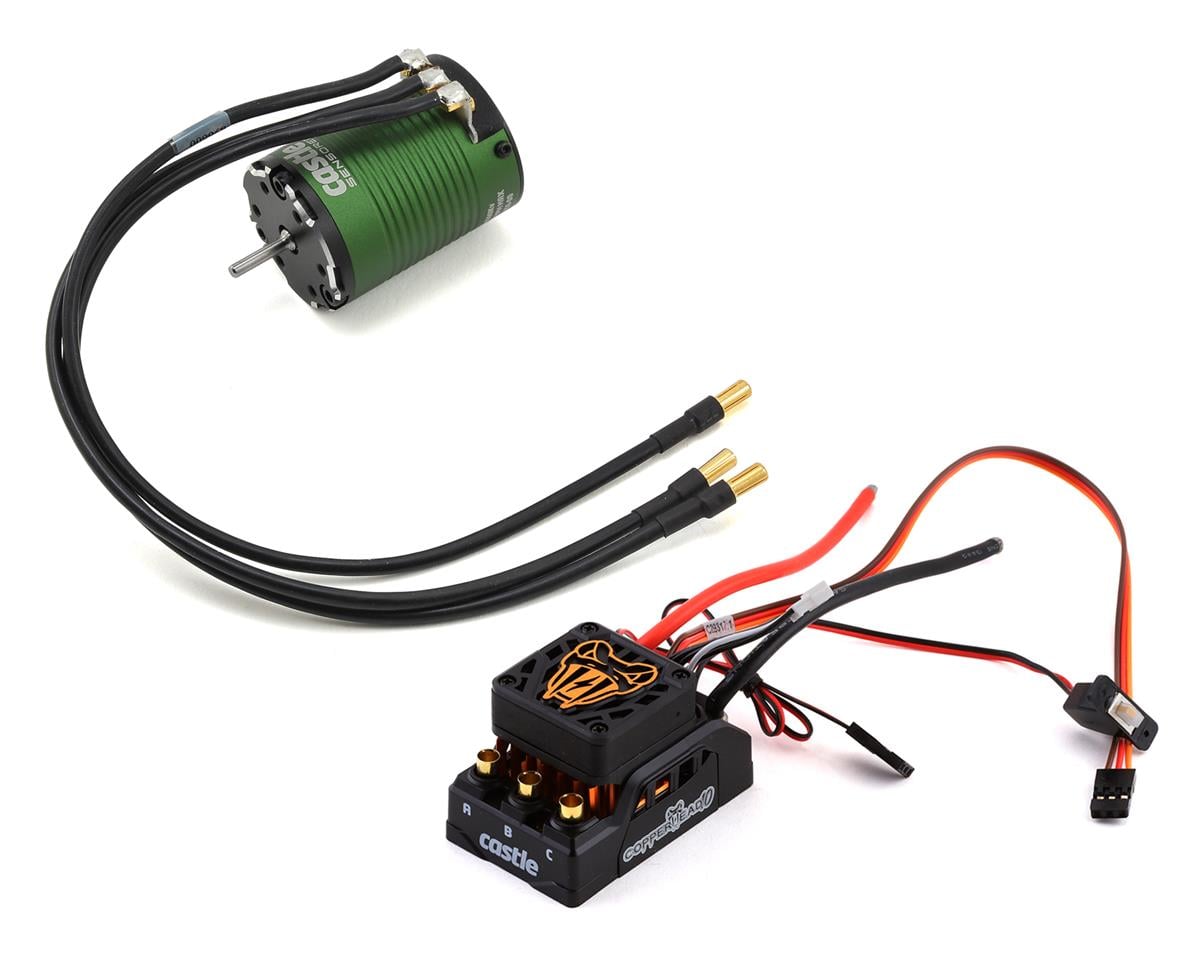

Castle Creations Copperhead 10 Waterproof 1/10 Sensored Combo w/1406 (7700Kv)

The Castle Creations Copperhead 10 Waterproof 1/10 Sensored Combo includes a 1406-7700Kv sensored motor for 1/10 on-road vehicles using 2s power. The ESC supports sensored, sensorless, and brushed motor operation, with CRYO-DRIVE technology, SMARTSENSE technology, and Data Log Lite.

Features

• Waterproof design in a durable injection molded case
• CRYO-DRIVE technology for improved thermal performance during partial-throttle operation
• SMARTSENSE technology for cog-free starts, torque, and low-speed drivability
• Selectable 5.5V or 7.5V internal BEC with 6A peak output
• Data Log Lite records battery voltage, battery ripple, controller temperature, motor RPM, and motor temperature
• Fully programmable using Castle Link software
• 30mm removable cooling fan and dual-use fan guard included
• Telemetry Link capable with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX

Specifications

• Recommended motors: Castle 1406, 1410, 1412 and 1415 Series Sensored 4-Pole Brushless Motors
• Input voltage range: 2s-4s (16.8V)
• Connector type: 4mm female bullets for motor connection
• Size: 2.19x1.39x1.33" (L x W x H with fan)
• Weight: 70.9 g / 2.50 oz. (with fan)
• On/Off switch: Yes

Important Notes

• The included 1406-7700Kv motor is intended for 1/10 on-road cars for 2s use and may be used in some lighter off-road 1/10 stadium trucks and buggies with conservative gearing.
• Not for use in 2WD or 4WD short course trucks.
• Not compatible with Castle Field Link program card (CSE010-0063-00).
• A battery connector is needed; Castle 4mm polarized connectors, XT60, Dean's Ultra Plug, or Traxxas Power Connector are recommended.
• Remove the cooling fan before driving in wet conditions. The fan is not waterproof.
• Although the Copperhead 10 is waterproof, it is not intended for operation while completely submerged in liquid. Rinse the ESC with clean water after exposure to corrosives or dirt.
