Castle Creations Cobra 8 6S 1/8 Scale Brushless Motor & ESC Combo (2650kV)

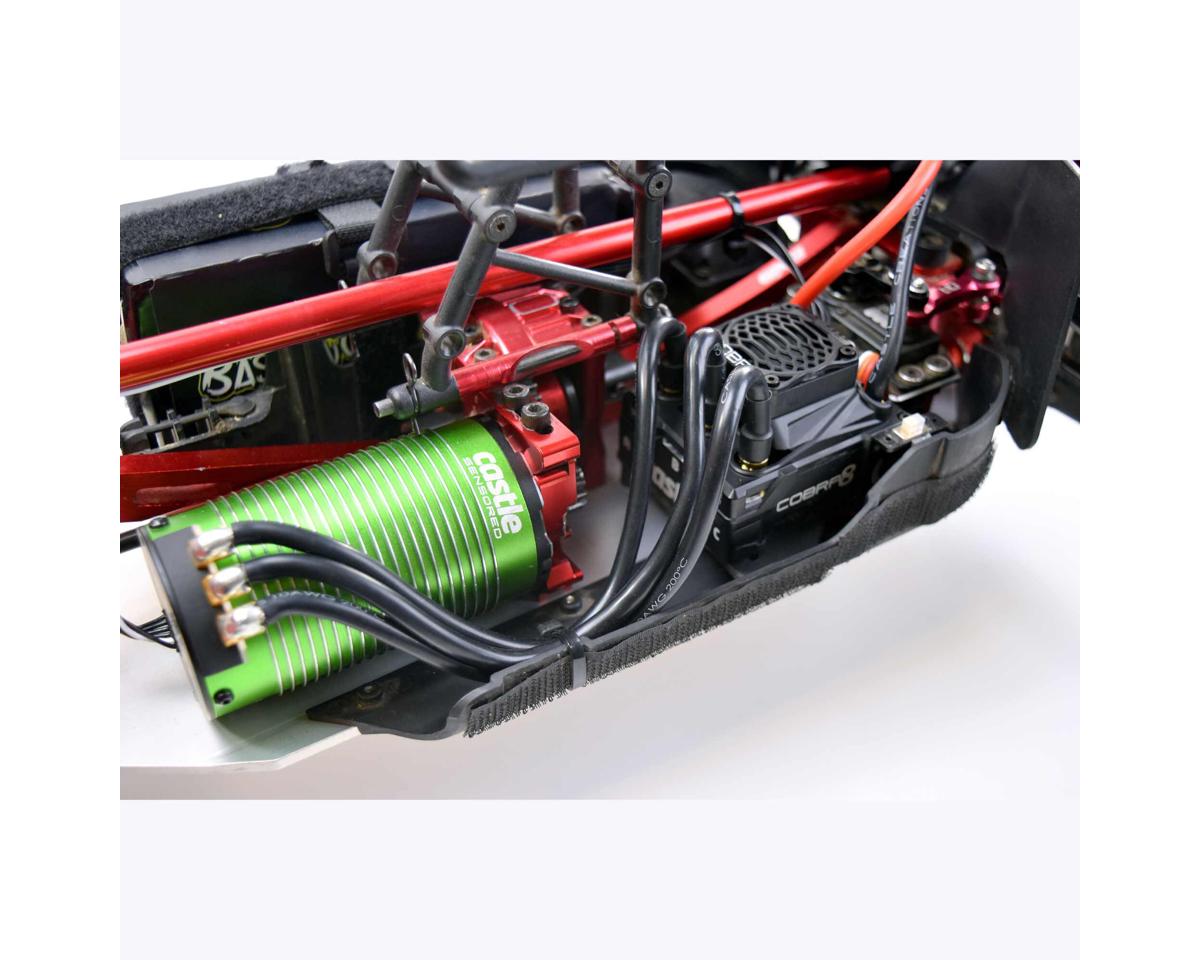

The Castle Creations Cobra 8 Combo pairs a Cobra 8 ESC with a 1512 V2 Sensored 4-Pole Brushless Motor rated at 2650kV. Designed for 1/8 scale buggies, truggies, and on-road vehicles, it is also suited to 1/10 monster trucks weighing up to 15lbs.

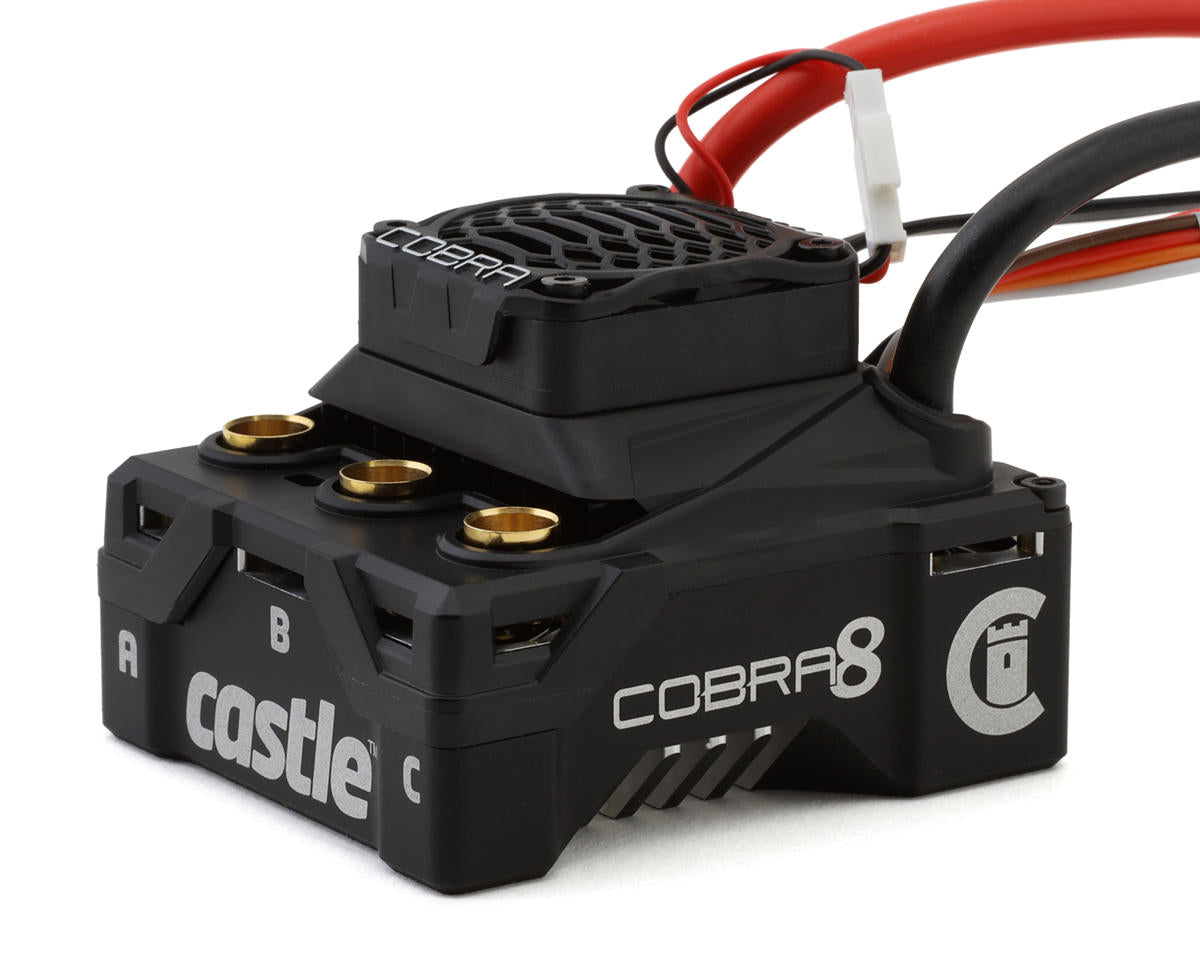

ESC Features

• 32-bit processing for smoother motor control and improved response time
• Cryo-Drive technology for improved thermal performance
• Enhanced data logging with an integrated accelerometer and looping feature
• Integrated 8A Peak Adjustable BEC
• 2S-6S capable
• SmartSense Brushless, Sensored Only, and Brushed running modes
• Oversized 30mm cooling fan pre-installed
• Auxiliary wire functionality for on-the-fly transmitter adjustments
• Audible alerts for motor-over-temperature and low-voltage cutoff
• Waterproof design with an aluminum case

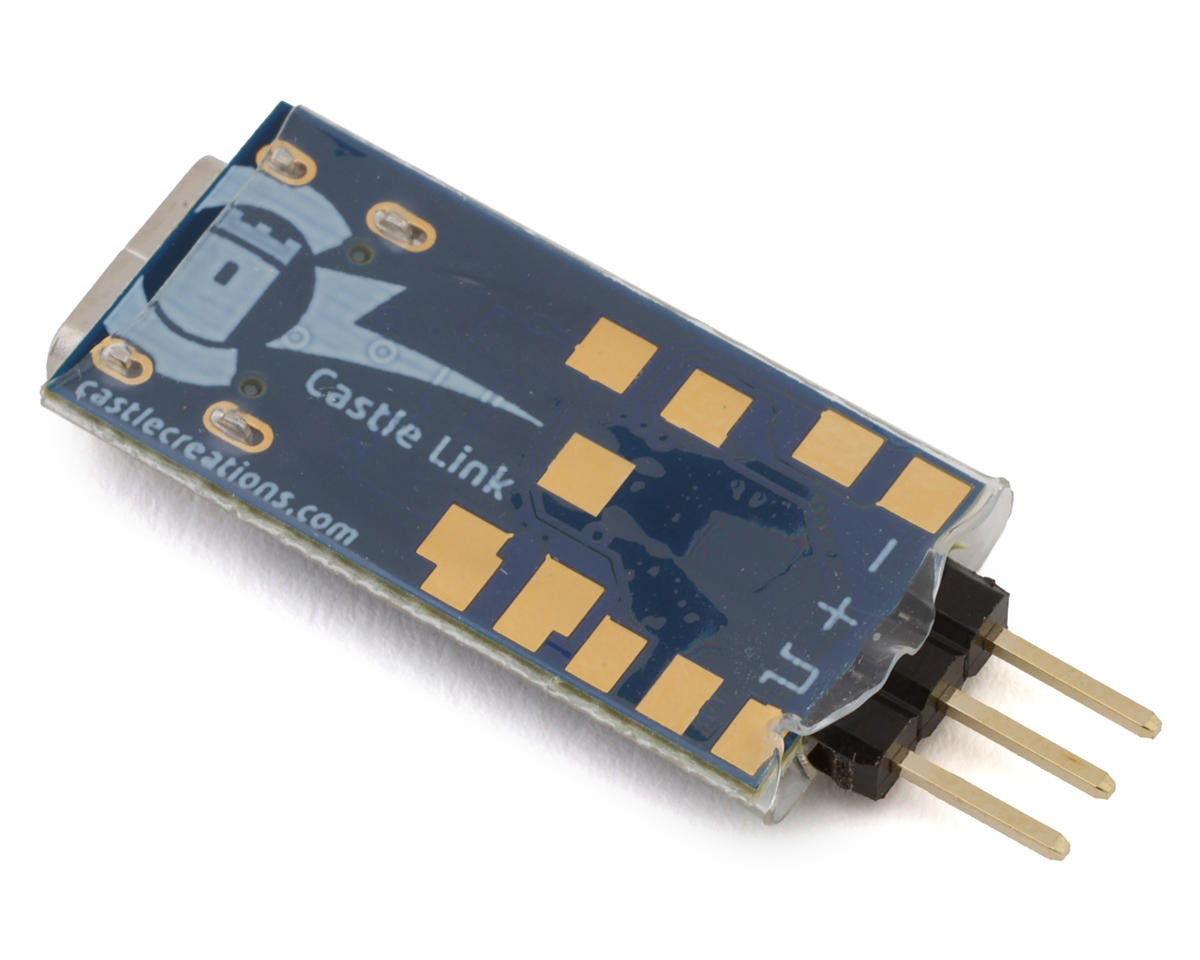

• Castle Link V4 access for tuning options and firmware updates
• Mounting holes on the bottom of the case

1512 V2 Motor

The sensored 4-pole brushless motor uses Smart Sense technology to provide rotor position information to the ESC for smooth starts, precise low-speed control, and predictable power delivery.

Specifications

• ESC input voltage: 2S-6S (7.4V-25.2V)
• ESC BEC voltage: 5.0V-8.0V (5.5V default)
• ESC BEC current: 8A Peak
• ESC connectors: 6.5mm Female Motor Connectors
• ESC dimensions: 2.36x2.04x1.69in (60x52x43mm)
• Motor input voltage: 2S-4S (7.4V-14.8V)
• Motor kV: 2650kV
• Motor connectors: 6.5mm Male Bullets
• Shaft diameter: 0.196in (5mm)
• Motor length: 2.66in (67.7mm)
• Motor diameter: 1.57in (40mm) (41.1mm w/fins)
• Motor weight: 13.6oz (383g)

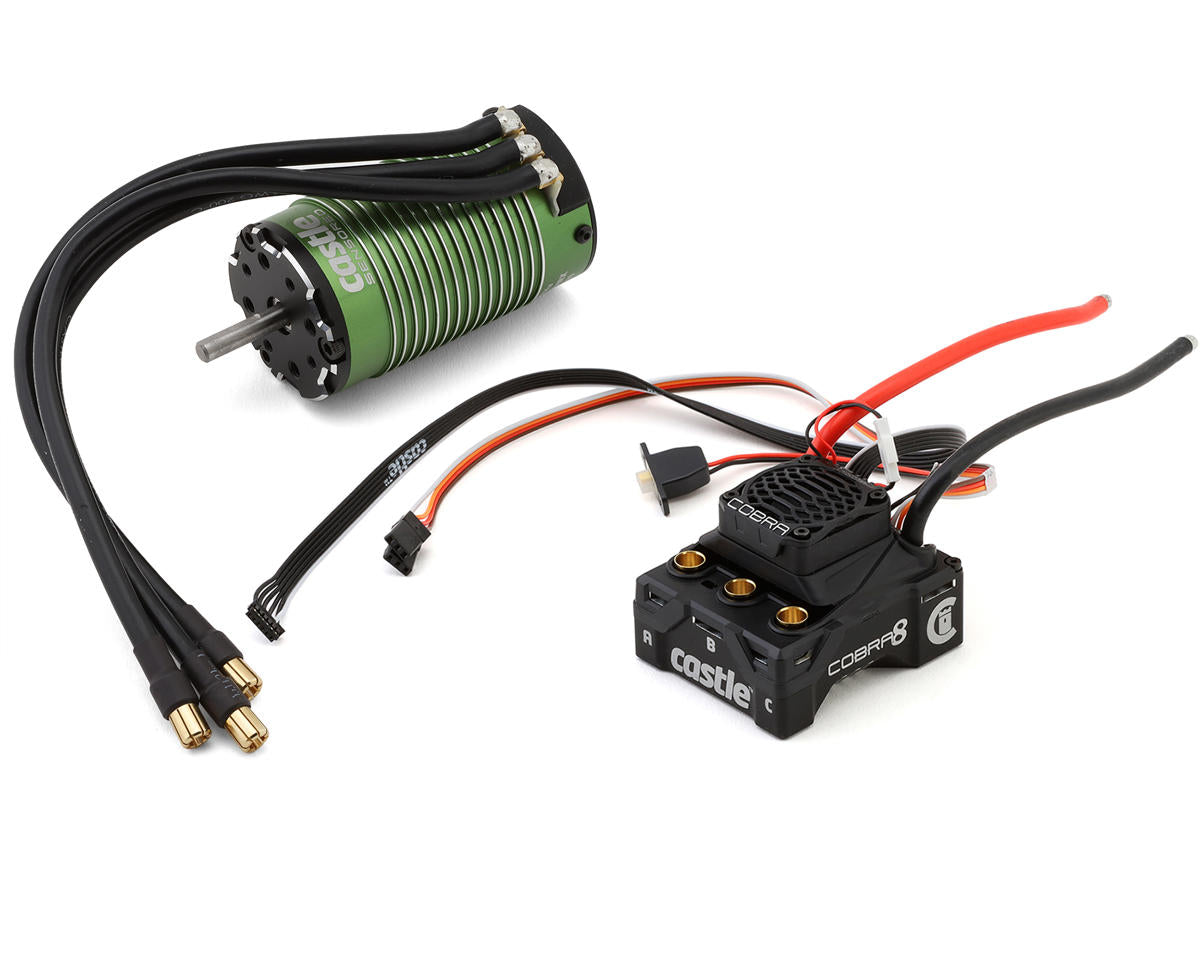

Includes

• Castle Creations Cobra 8 ESC
• Castle Creations 1512 2650kV Brushless Motor
