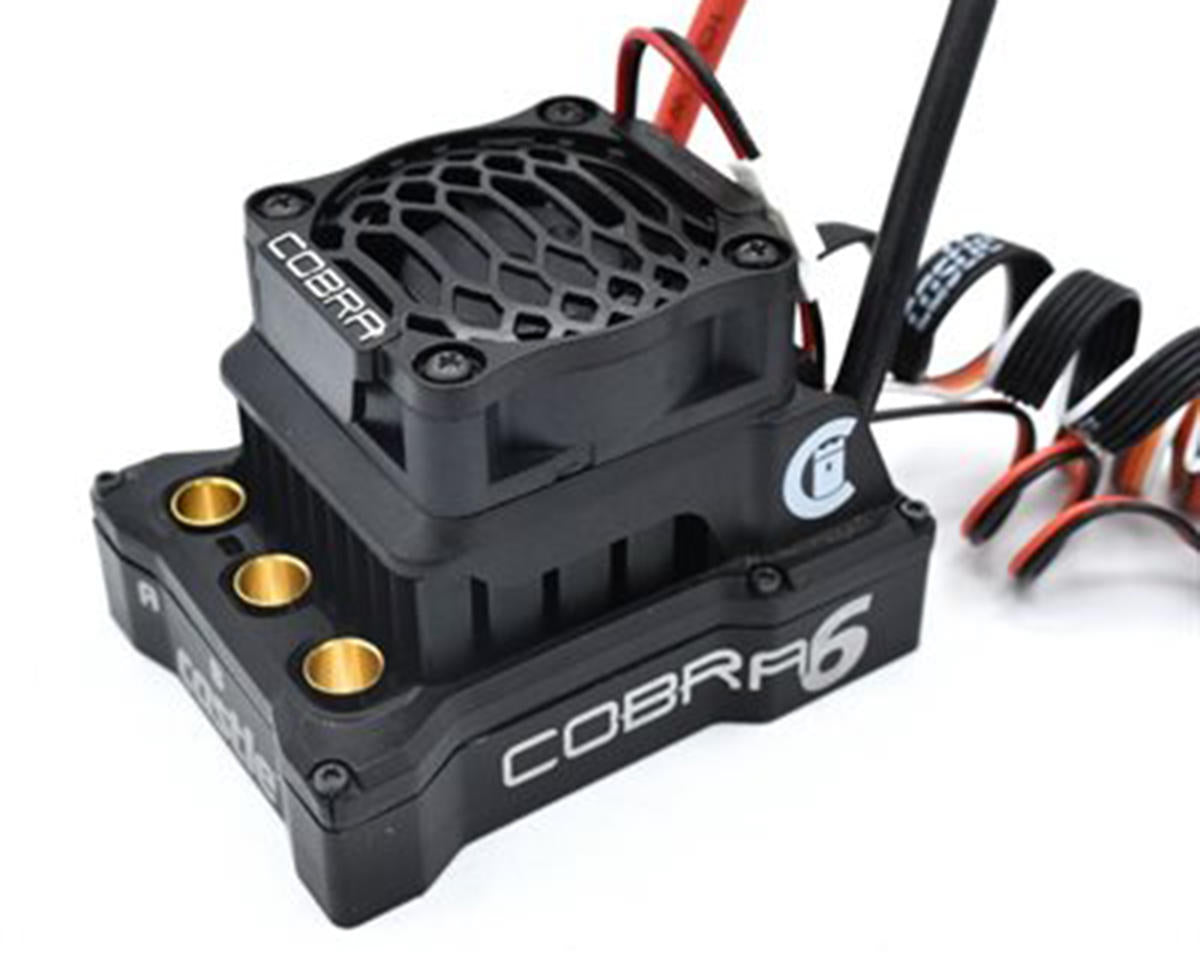

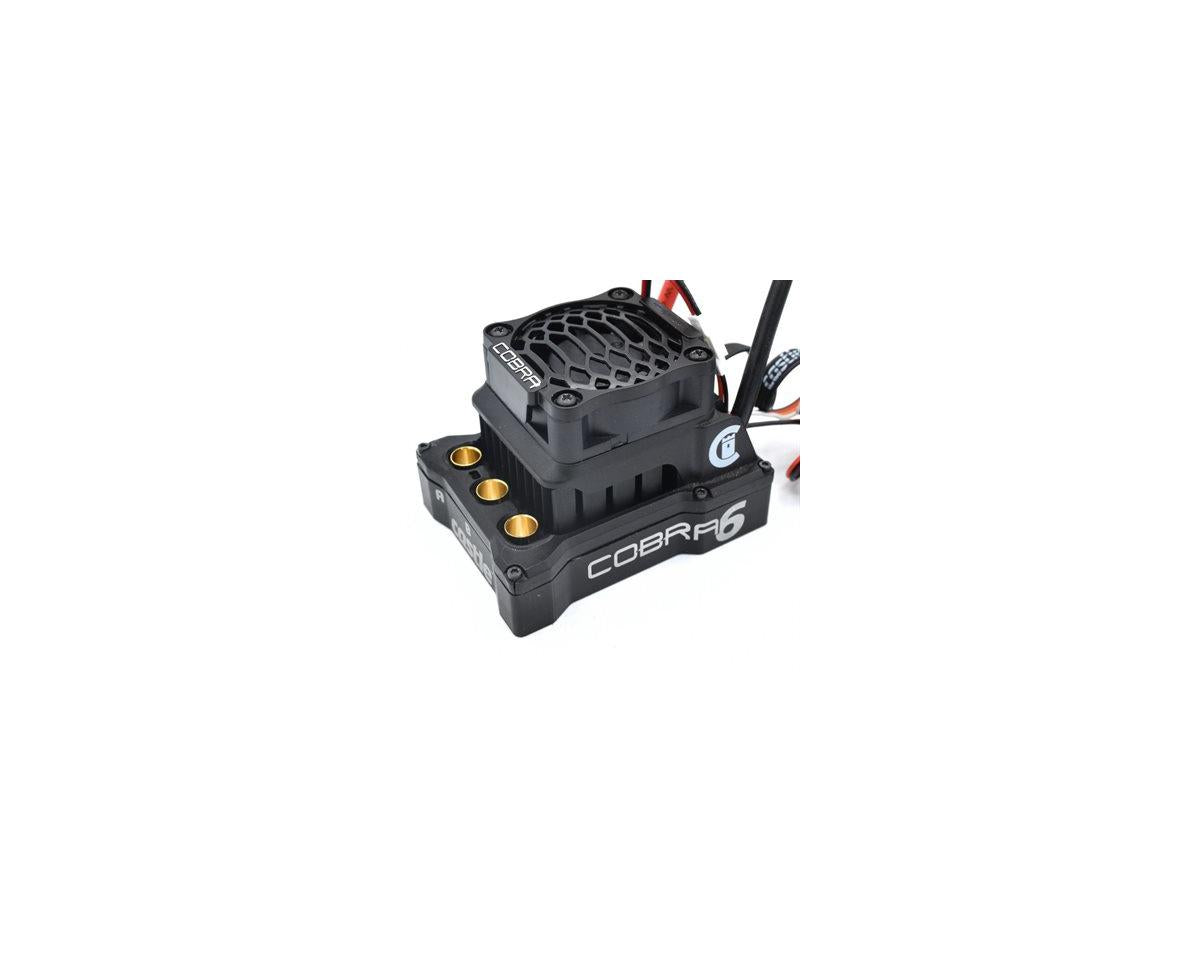

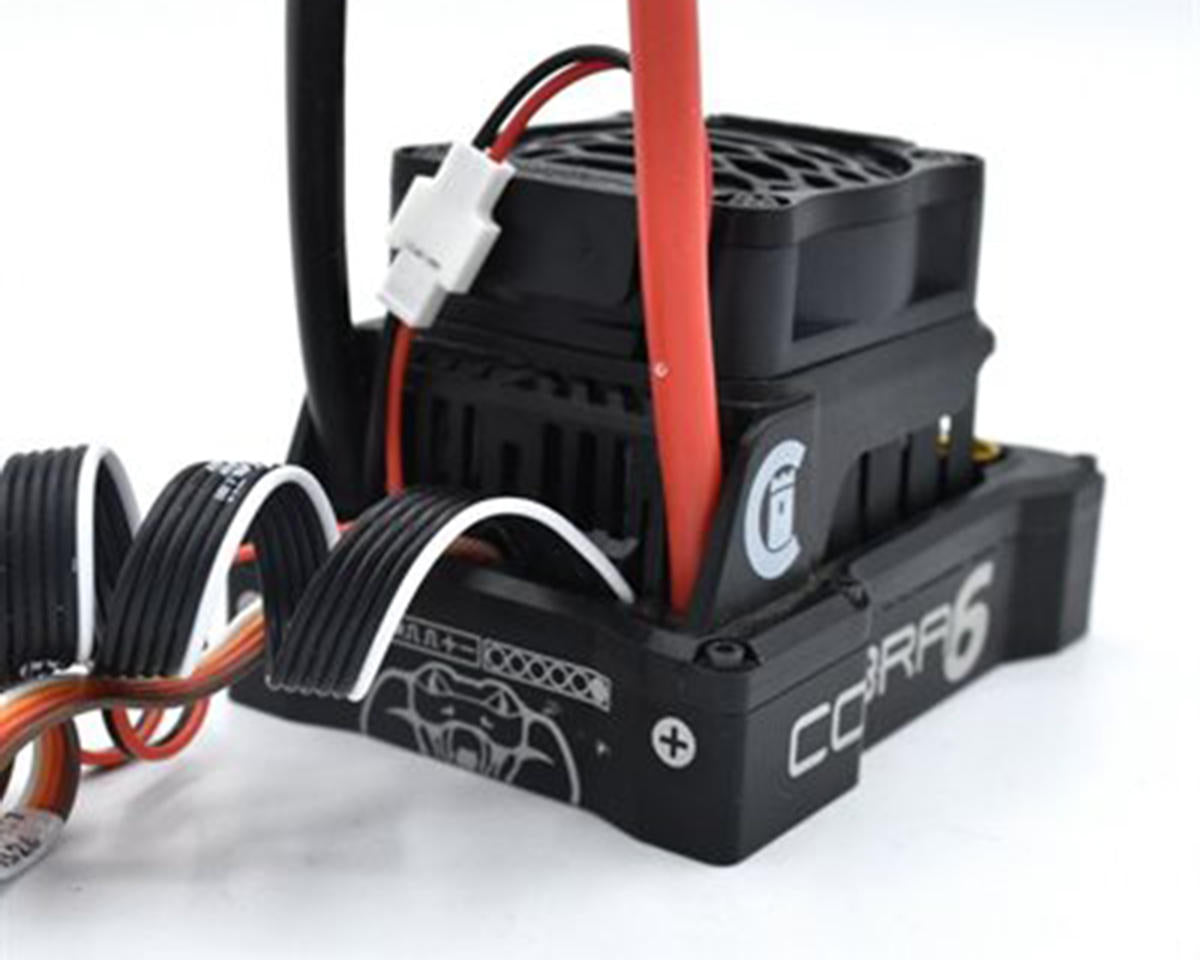

Castle Creations Cobra 6 8S 1/6 Brushless ESC

The Castle Creations Cobra 6 8S 1/6 Brushless ESC features 32-bit dual-core processing, adjustable control settings, and expanded data logging for large-scale 1/6 RC applications. It supports 2-8S LiPo input, programmable tuning, and an adjustable 5.5-8.0V BEC.

Features

• 32-bit dual-core processing
• Enhanced data logging with double sample frequency capability
• Eight times extended logging duration
• Onboard accelerometer data point
• Improved braking adjustability with separate brake and reverse curves
• High-efficiency CRYO-DRIVE thermal management
• Audible alerts for system diagnostics
• Adjustable internal BEC from 5.5V to 8.0V
• Programmable through the included Castle Link V4 USB Adapter
• Optional Bluetooth programming with the Castle Creations B-Link Bluetooth Interface (CSE011-0181-00, sold separately) and Castle Link 2 app

Specifications

• Suggested Application: 1/6
• Motor Type: Brushless
• Input Voltage: 2-8S LiPo (7.4-33.6V)
• Dimensions (LxWxH): 2.73x2.13x1.85in (69.34x54.1x46.99mm)
• Weight: 5.75oz (163g)
• BEC Voltage: 5.5-8.0V (Adjustable)
• BEC Peak Current: 8A
• Motor Connector: 6.5mm Bullet
• Battery Connector: Bare Wire
• Programmable: Yes

Includes

• (1) Cobra 6 8S 1/6 Brushless ESC
• (1) Direct Connect Sensor Wire (300mm)
• (1) Castle Link V4 USB Adapter
• (1) Cobra Decal Sheet
• (1) Cobra 6 Quick Start Guide

Important Notes

• Use appropriately sized batteries and connectors. A minimum 150 amp connector is recommended; examples include Castle 6.5mm and 6.5mm polarized, QS8, or QS10 Anti Spark.
• Do not use high-voltage batteries that run over 4.2-volts per cell when running the 8S max cell count.
• The ESC is designed to be waterproof but is not intended to run while completely submerged. The cooling fan is not waterproof and must be removed before driving in wet conditions.
• The Cobra 6 is not designed for high-speed and drag applications. Failures resulting from these applications are not covered under the Castle Creations warranty.
