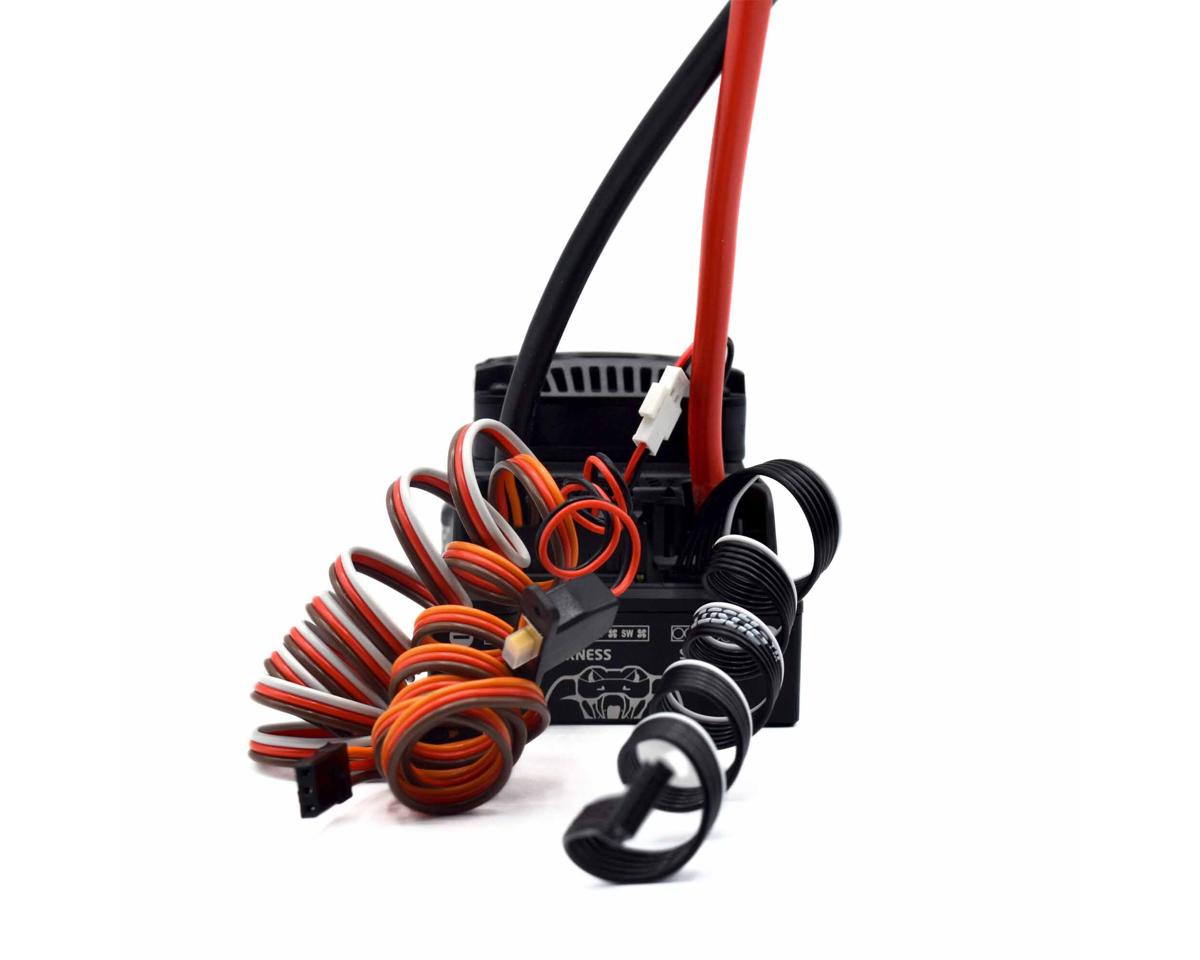

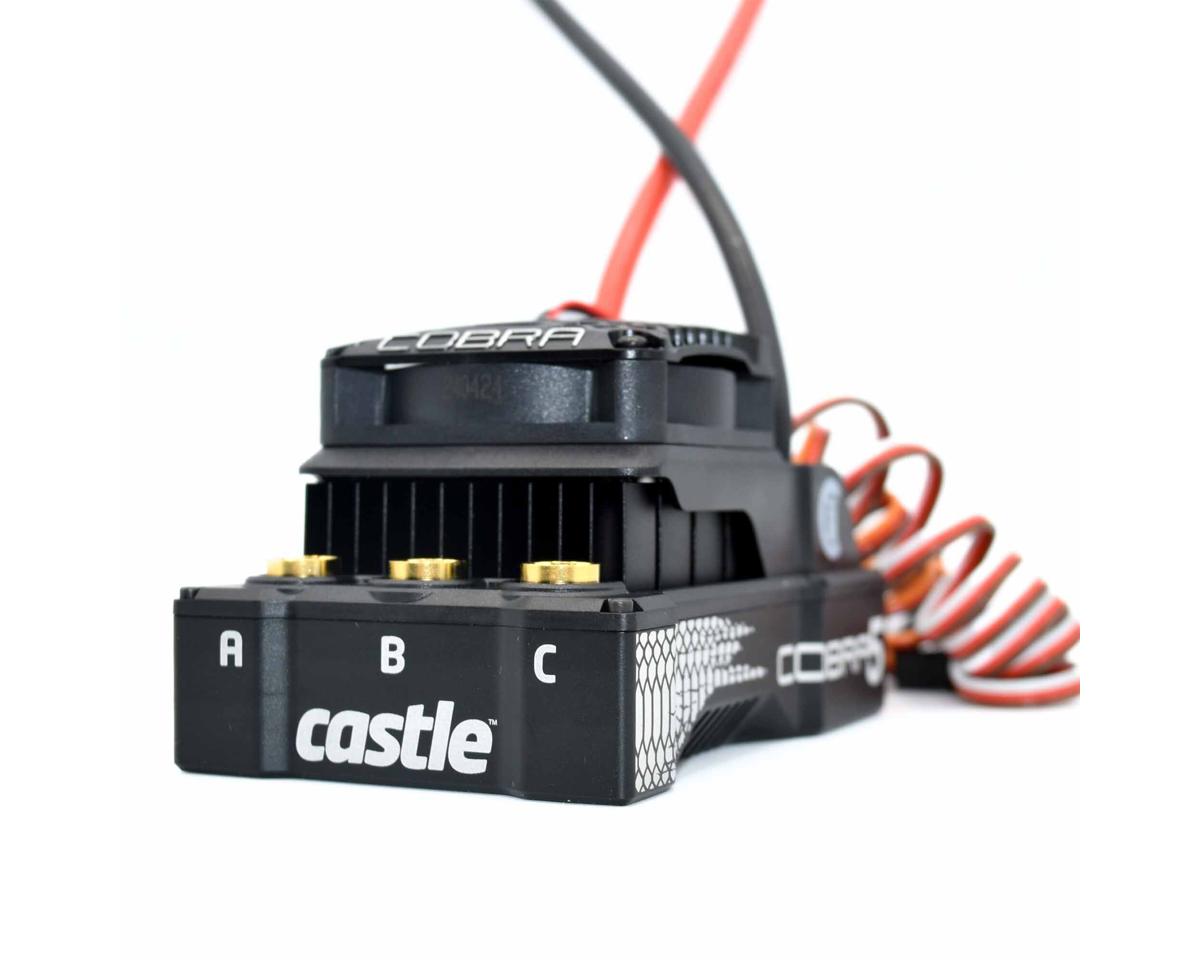

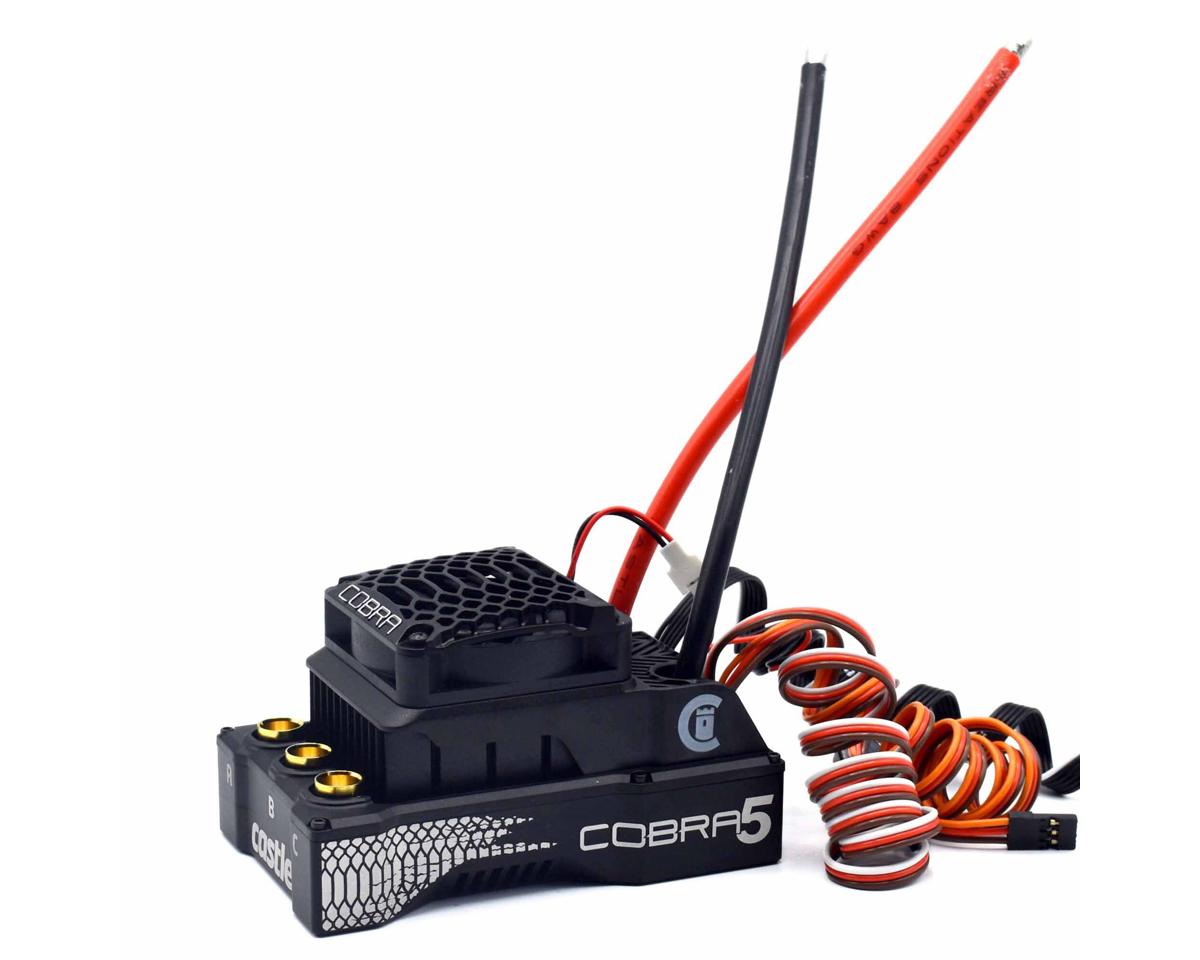

Castle Creations Cobra 5 8S 1/5 Sensored Brushless ESC

The Castle Creations Cobra 5 8S 1/5 Sensored Brushless ESC combines 32-bit processing, enhanced data logging, adjustable braking, and thermal management for large-scale RC applications.

Features

• 32-bit processing for smoother motor control
• Enhanced data logging with increased sample frequency
• ESC electrical motor timing and acceleration data logging
• Looping feature prevents data log interruptions
• Adjustable braking and reverse curves for drivetrain protection
• Adjustable BEC from 5.0V to 8.5V in 0.1V increments
• CRYO-DRIVE™ technology for improved thermal performance
• CNC aluminum case with waterproof epoxy sealing
• Premium forged heatsink with elliptical fins for heat dissipation
• Oversized 50mm thermally controlled cooling fan

Specifications

• Suggested Application: 1/5
• Motor Type: Brushless - Sensored
• Input Voltage: 3-8S LiPo (11.1-33.6V)
• Dimensions (LxWxH): 3.98x2.49x2.35in (101.2x63.3x59.5mm)
• Weight: 13.2oz (374g)
• BEC Voltage: 5.5-8.5V (Adjustable)
• BEC Peak Current: 20A
• Motor Connector: 8.0mm Bullet
• Battery Connector: Bare Wire
• Programmable: Yes

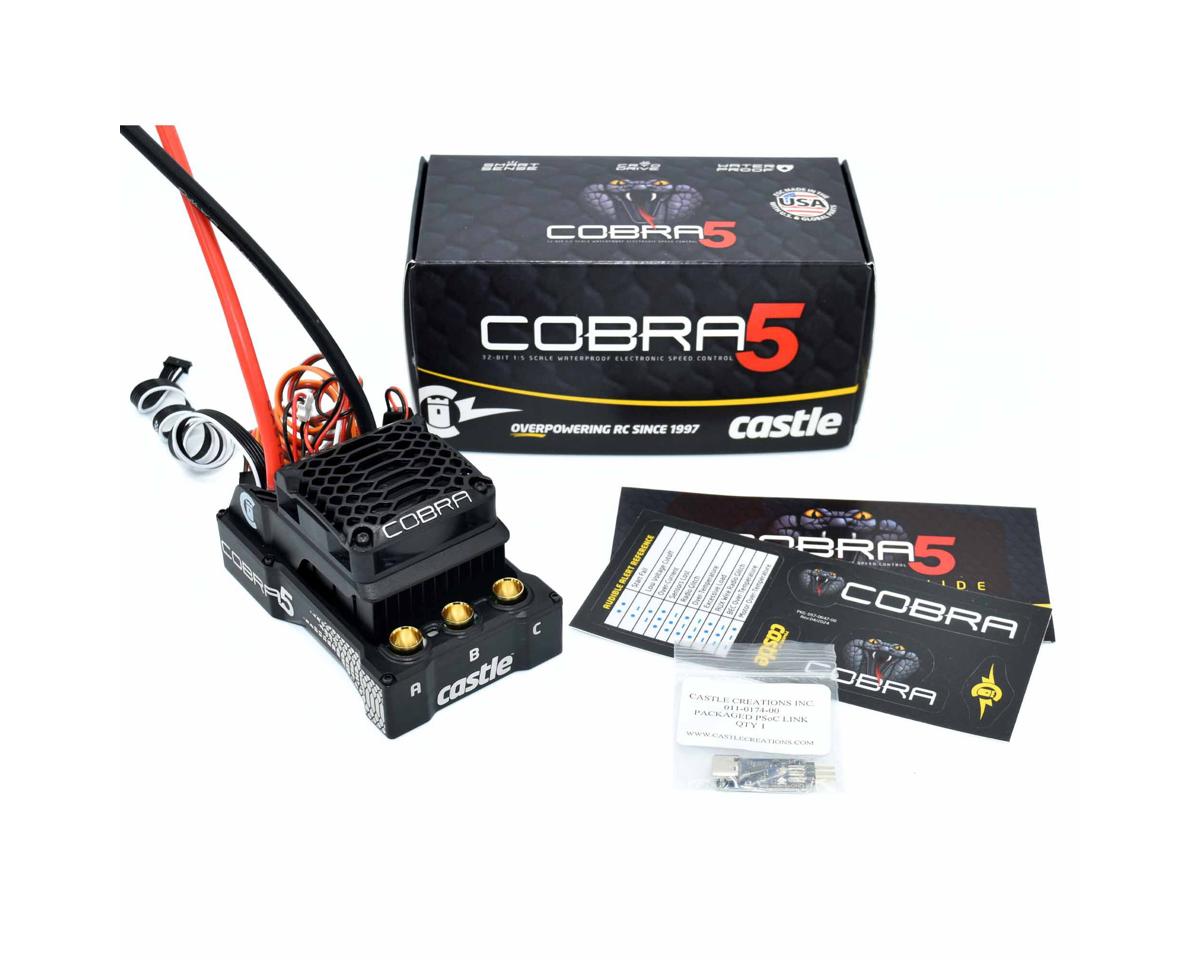

Includes

• (1) Cobra 5 ESC
• (1) 300mm Direct Connect Sensor Wire
• (1) Castle Link V4 USB Adapter
• (1) Cobra Quick Start Guide
• (1) Cobra Decal Sheet
