Castle Creations Cobra 10 6S 1/10 Brushless Crawler Combo w/1406 Sensored Motor

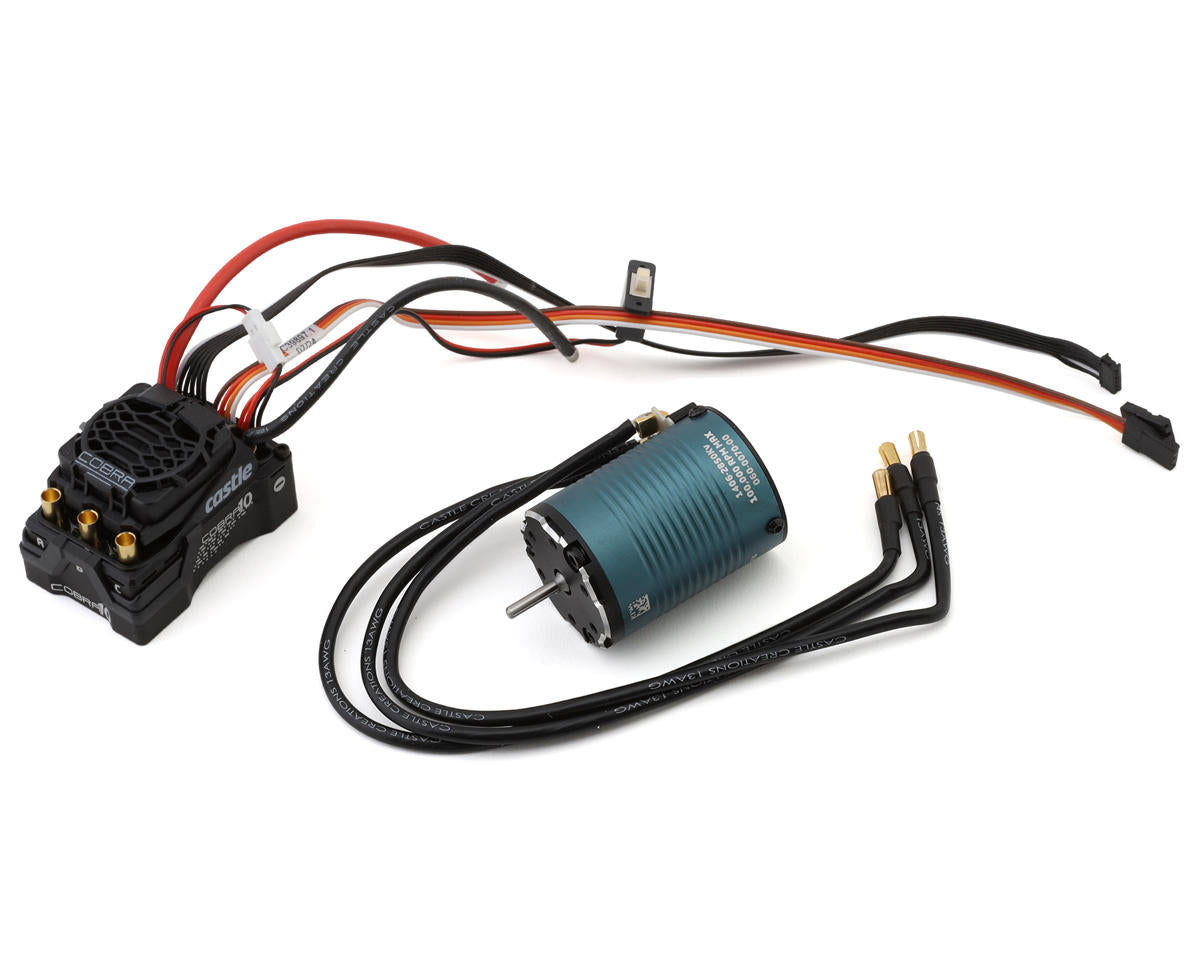

The Castle Creations Cobra 10 6S 1/10 Brushless Crawler Combo pairs a Cobra 10 ESC with a 1406 Sensored Brushless Motor rated at 2850kV. Designed for 1/10 surface applications, the system features a 32-bit dual-core processor, CRYO-DRIVE™ technology, sensored operation and adjustable BEC output.

Features

• 32-bit dual-core processor
• Enhanced data logging with faster sampling rates
• CRYO-DRIVE™ technology for reduced operational temperatures
• Water-resistant CNC aluminum case
• Powerful 8A peak adjustable BEC
• SmartSense™, Sensored Only, and Brushed Motor Operation Modes
• Premium forged heatsink with elliptical fins
• Thermally controlled 25mm cooling fan
• Auxiliary wire for on-the-fly adjustments
• Audible alerts for diagnostics

Included

• (1) Cobra 10 ESC
• (1) 1406 Sensored Brushless Motor
• (1) Castle Link V4 USB Adapter
• (1) 250mm Direct Connect Sensor Wire
• Product Manual

ESC Specifications

• Suggested Application: 1/10
• Motor Type: Brushless-Sensored
• Input Voltage: 2-6S LiPo (7.4-25.2V)
• Dimensions (LxWxH): 2.2x1.51x1.44in (55.88x38.35x36.58mm)
• BEC Voltage: 5-8V (5.5V Default)
• BEC Peak Current: 8A
• Motor Connector: 4mm Female Bullets
• Battery Connector: Bare Wire
• Battery Wire: 12AWG
• Programming: Castle Link Windows™ (Windows 10+ Required)

Motor Specifications

• Size: 2850kV
• Type: Brushless-Sensored
• Voltage: 2-4S LiPo (7.4-14.4V)
• Connector: 4mm Male Bullets
• Dimensions: 1.95x1.42in (49.5x36mm)
• Shaft Length: 0.59in (15mm)
• Shaft Diameter: 0.12in (3.17mm)
• Weight: 6.8oz (193g)
• Max. Recommended Vehicle Weight: Crawling 9lbs (144oz)/ Rock Racing 5lbs (80oz)

Important Notes

• The Cobra 10 ESC is designed to handle up to 6S LiPo batteries, but only allows a maximum of 3S batteries to be used with the included 1406 motor. Check the manual for compatibility and proper input voltage for the wide range of 1406 Motor kV ratings.
• Castle Creations recommends this system for 1/10 scale vehicles specialized in low speed crawling or trail running in vehicles weighing up to 9lbs on 2s to 4s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs.
