Castle Creations Cobra 10 6S 1/10 Brushless Crawler Combo w/1406 Sensored Motor

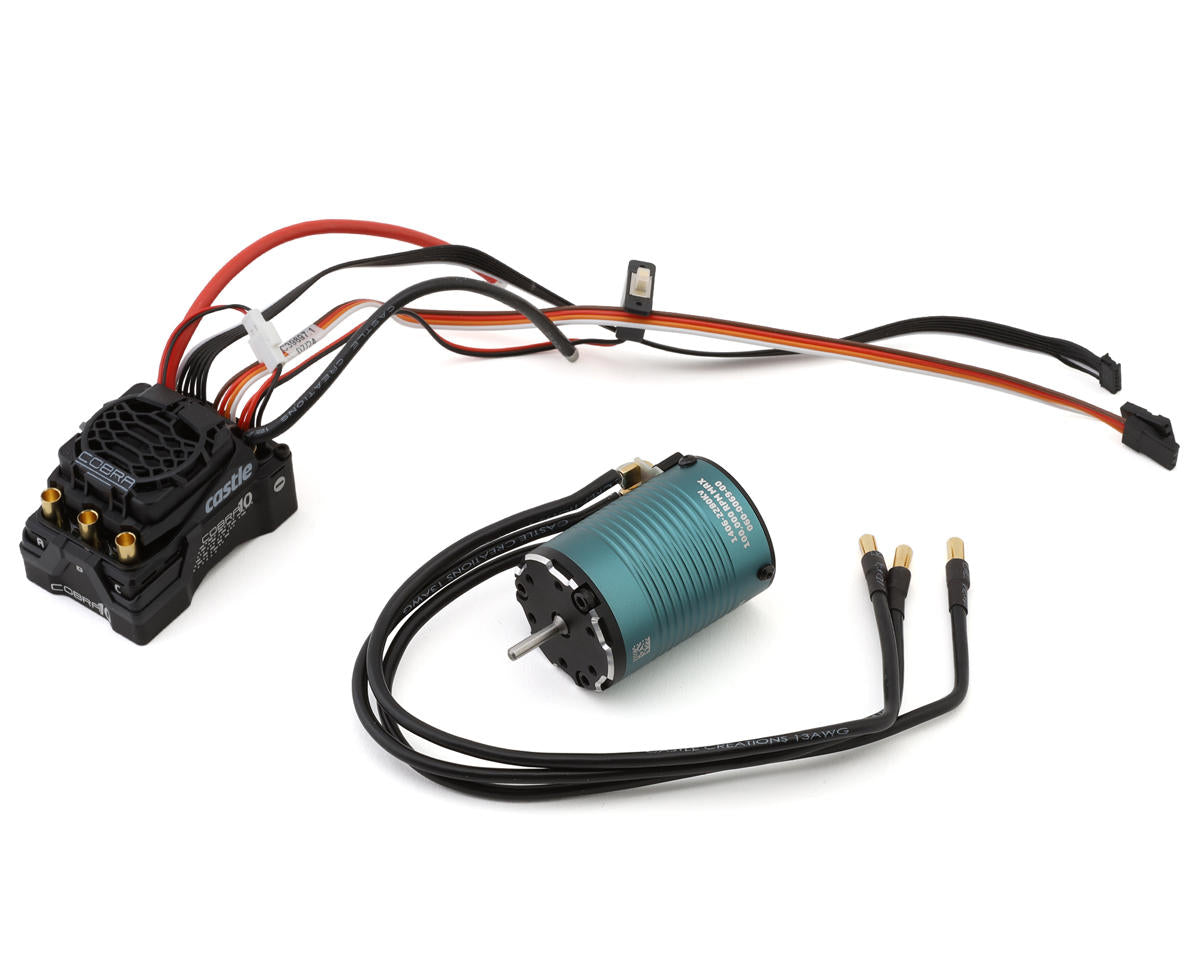

The Castle Creations Cobra 10 6S 1/10 Brushless Crawler Combo pairs a Cobra 10 brushless-sensored ESC with a 1406 2280kV sensored brushless motor for 1/10 surface applications. It also includes a Castle Link V4 USB Adapter and 250mm Direct Connect Sensor Wire.

Features

• 32-bit dual-core processor
• Enhanced data logging with faster sampling rates
• CRYO-DRIVE™ technology for reduced operational temperatures
• Water-resistant CNC aluminum case
• 8A peak adjustable BEC
• SmartSense™, Sensored Only, and Brushed Motor Operation Modes
• Premium forged heatsink with elliptical fins
• Thermally controlled 25mm cooling fan
• Auxiliary wire for on-the-fly adjustments
• Audible alerts for diagnostics

ESC Specifications

• Suggested Application: 1/10
• Motor Type: Brushless-Sensored
• Input Voltage: 2-6S LiPo (7.4-25.2V)
• Dimensions: 2.2x1.51x1.44in (55.88x38.35x36.58mm)
• BEC Voltage: 5-8V (5.5V Default)
• BEC Peak Current: 8A
• Motor Connector: 4mm Female Bullets
• Battery Connector: Bare Wire
• Battery Wire: 12AWG
• Programming: Castle Link Windows™ (Windows 10+ Required)

Motor Specifications

• Suggested Application: 1/10
• Size: 2280kV
• Type: Brushless-Sensored
• Voltage: 2-4S LiPo (7.4-14.4V)
• Connector: 4mm Male Bullets
• Dimensions: 1.95x1.42in (49.5x36mm)
• Shaft Length: 0.59in (15mm)
• Shaft Diameter: 0.12in (3.17mm)
• Weight: 6.8oz (193g)
• Max. Recommended Vehicle Weight: Crawling 9lbs (144oz)/ Rock Racing 5lbs (80oz)

Included

• (1) Cobra 10 ESC
• (1) 1406 Sensored Brushless Motor
• (1) Castle Link V4 USB Adapter
• (1) 250mm Direct Connect Sensor Wire
• Product Manual

Tech Note: The Cobra 10 ESC is designed to handle up to 6S LiPo batteries, but only allows a maximum of 3S batteries to be used with the included 1406 motor. Check the manual for compatibility and proper input voltage for the range of 1406 Motor kV ratings.

Application Note: Castle Creations recommends this system for 1/10 scale vehicles specialized in low speed crawling or trail running weighing up to 9lbs on 2s to 4s. It can also be used for rock racing and extended hill climbing on vehicles up to 5lbs.
