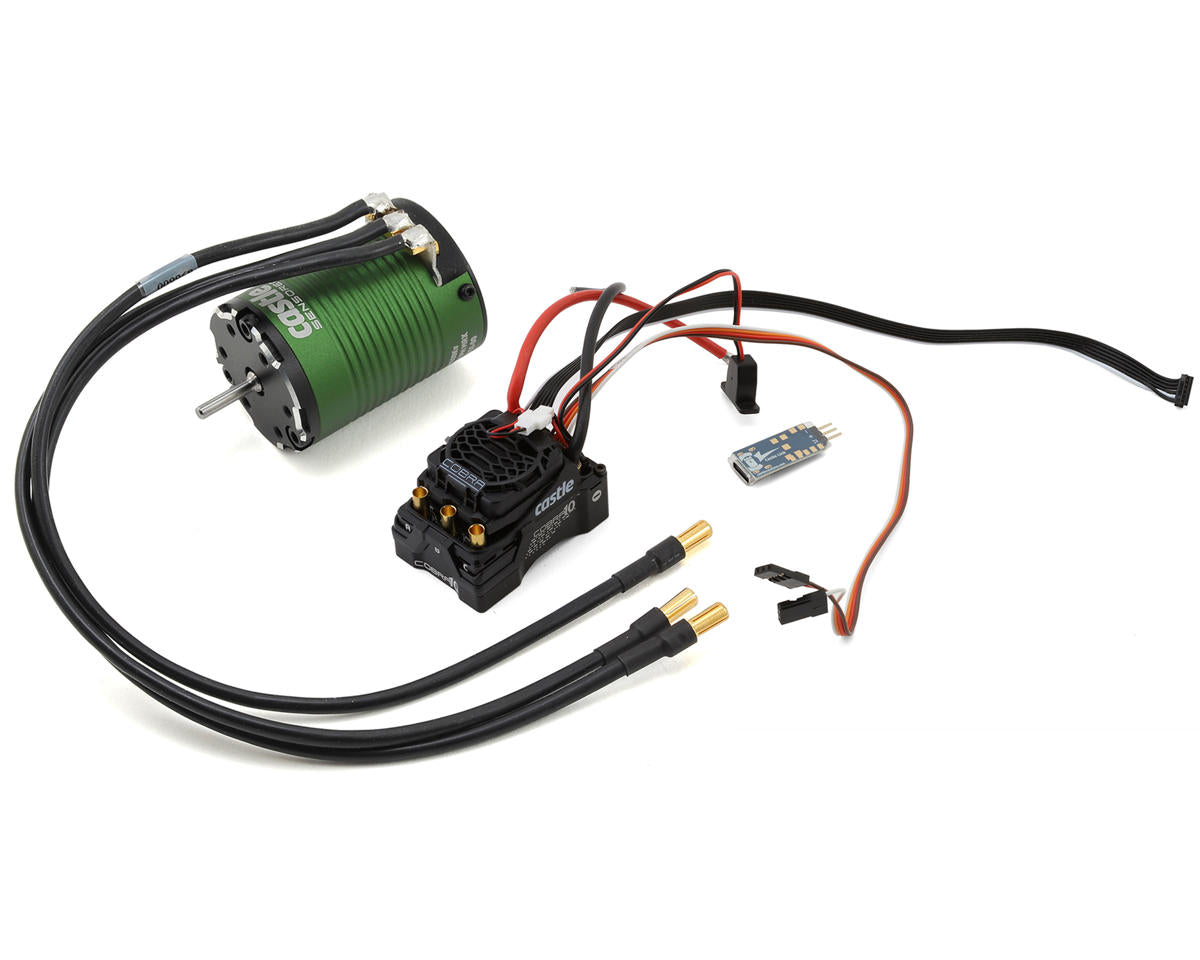

Castle Creations Cobra 10 6S 1/10 Brushless Crawler Combo

The Castle Creations Cobra 10 6S 1/10 Brushless Crawler Combo pairs a Cobra 10 ESC with a 1406 Sensored Brushless Motor rated at 3800kV. The system features 32-bit dual-core processing, CRYO-DRIVE™ technology, enhanced data logging and multiple motor operation modes for 1/10 surface applications.

Features

• 32-bit dual-core processor
• Enhanced data logging with faster sampling rates
• CRYO-DRIVE™ technology for reduced operational temperatures
• Water-resistant CNC aluminum case
• 8A peak adjustable BEC
• SmartSense™, Sensored Only and Brushed Motor Operation Modes
• Premium forged heatsink with elliptical fins
• Thermally controlled 25mm cooling fan
• Auxiliary wire for on-the-fly adjustments
• Audible alerts for diagnostics

ESC Specifications

• Suggested application: 1/10
• Motor type: Brushless-Sensored
• Input voltage: 2-6S LiPo (7.4-25.2V)
• Dimensions: 2.2x1.51x1.44in (55.88x38.35x36.58mm)
• BEC voltage: 5-8V (5.5V Default)
• BEC peak current: 8A
• Motor connector: 4mm Female Bullets
• Battery connector: Bare Wire
• Battery wire: 12AWG
• Programming: Castle Link Windows™ (Windows 10+ Required)

Motor Specifications

• Suggested application: 1/10
• Size: 3800kV
• Type: Brushless-Sensored
• Voltage: 2-3S LiPo (7.4-11.1V)
• Connector: 4mm Male Bullets
• Dimensions: 1.95x1.42in (49.5x36mm)
• Shaft length: 0.59in (15mm)
• Shaft diameter: 0.12in (3.17mm)
• Weight: 6.8oz (193g)
• Maximum recommended vehicle weight: Crawling 9lbs (144oz)/ Rock Racing 5lbs (80oz)

Included

• (1) Cobra 10 ESC

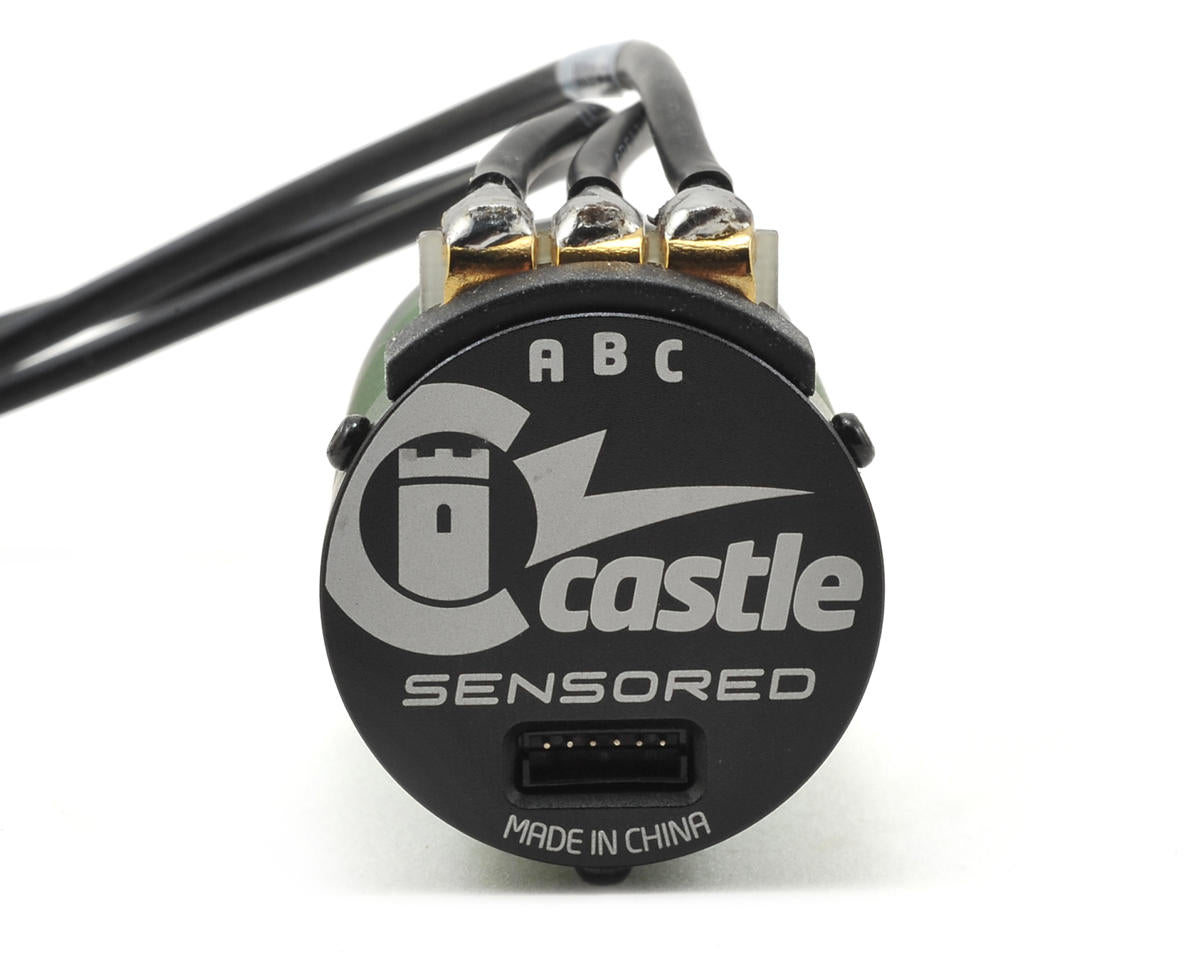

• (1) 1406 Sensored Brushless Motor
• (1) Castle Link V4 USB Adapter

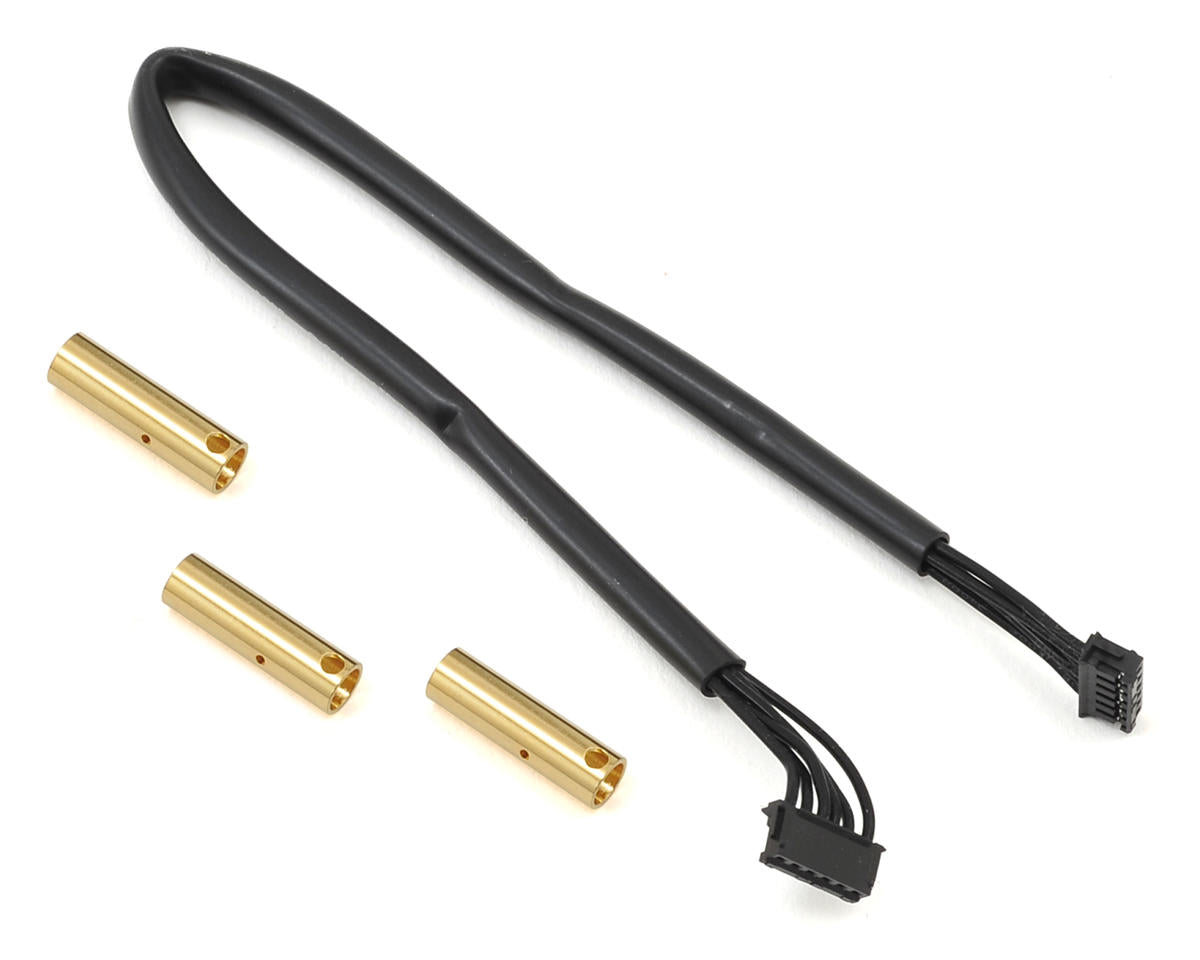

• (1) 250mm Direct Connect Sensor Wire
• Product Manual

Important Compatibility Notes

• The Cobra 10 ESC is designed to handle up to 6S LiPo batteries, but the included 1406 motor allows a maximum of 3S batteries.
• Castle Creations recommends this system for 1/10 scale vehicles specialized in low speed crawling or trail running up to 9lbs on 2s to 3s, or for rock racing and extended hill climbing up to 5lbs.
• Check the manual for compatibility and proper input voltage for the wide range of 1406 Motor kV ratings.
