Castle Creations Cobra 10 6S 1/10 Brushless Combo w/1412 Sensored Motor (2100kV)

The Castle Creations Cobra 10 6S 1/10 Brushless Combo pairs a Cobra 10 ESC with a 1412 Sensored Brushless Motor rated at 2100kV for 1/10 SCT and MT applications. The system features a 32-bit dual-core processor, CRYO-DRIVE™ technology, enhanced data logging, and sensored operation modes.

Features

• 32-bit dual-core processor
• Enhanced data logging with faster sampling rates
• CRYO-DRIVE™ technology for reduced operational temperatures
• Water-resistant CNC aluminum case
• 8A peak adjustable BEC
• SmartSense™ and Sensored Only operation modes
• Premium forged heatsink with elliptical fins
• Thermally controlled 25mm cooling fan
• Auxiliary wire for on-the-fly adjustments
• Audible alerts for diagnostics

Included

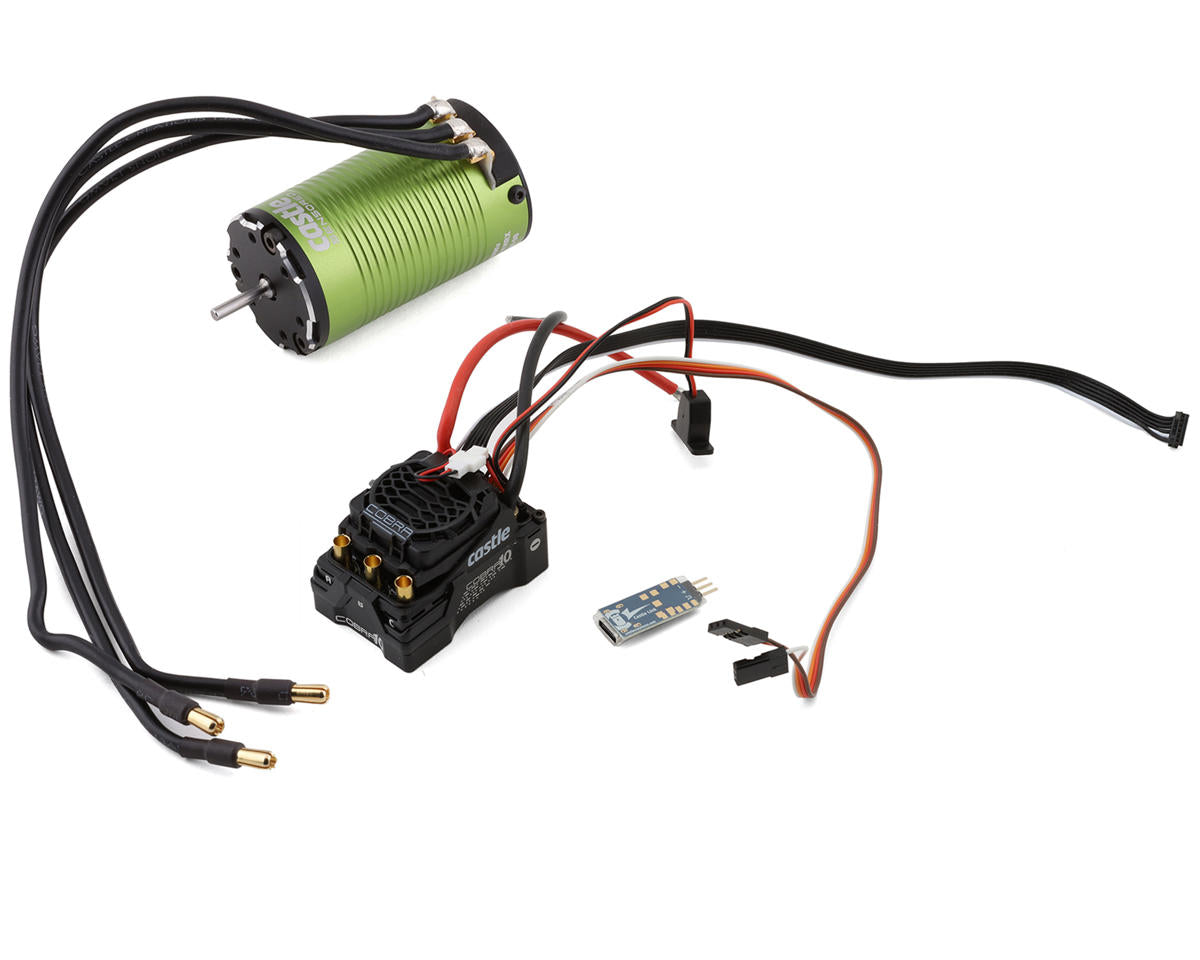

• Cobra 10 ESC
• 1412 Sensored Brushless Motor
• Castle Link V4 USB Adapter

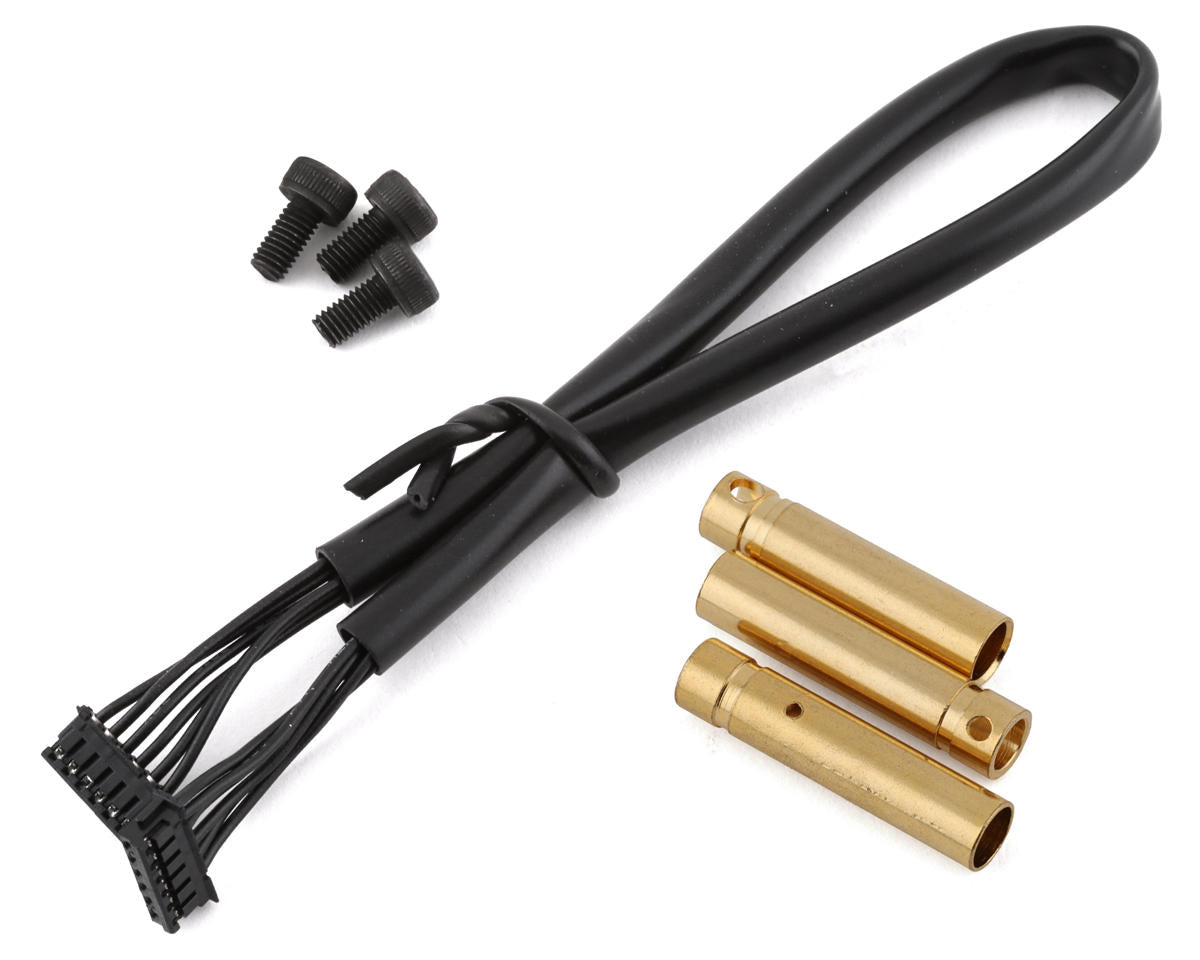

• 250mm Direct Connect Sensor Wire
• Product Manual

ESC Specifications

• Suggested Application: 1/10 SCT/MT**
• Motor Type: Brushless-Sensored
• Input Voltage: 2-6S LiPo (7.4-25.2V)*
• Dimensions (LxWxH): 2.2x1.51x1.44in (55.88x38.35x36.58mm)
• Weight: 4.02oz (114g)
• BEC Voltage: 5-8V (5.5V Default)
• BEC Peak Current: 8A
• Motor Connector: 4mm Female Bullets
• Battery Connector: Bare Wire
• Battery Wire: 12AWG
• Programming: Castle Link Windows™ (Windows 10+ Required)

Motor Specifications

• Suggested Application: 1/10 SCT/MT**
• Size: 2100kV
• Type: Brushless-Sensored
• Voltage: 2-4S LiPo (7.4V-14.4V)
• Connector: 4mm Male Bullets
• Dimensions: 2.46x1.42in (62.5x36mm)
• Shaft Length: 0.59in (15mm)
• Shaft Diameter: 0.12in (3.17mm)
• Weight: 9.4oz (265.4g)
• Max. Recommended Vehicle Weight: >6.5lbs (104oz)

*Tech Note: The Cobra 10 ESC is designed to handle up to 6S LiPo batteries, but only allows a maximum of 4S batteries to be used with the included 1412 motor. Check the manual for compatibility and proper input voltage for the 1412 Motor kV ratings.

**Tech Note: Castle Creations recommends use for 1/10 scale vehicles weighing less than 6.5lbs. Suggested applications include 1/10 scale 2WD/4WD short course trucks and Monster trucks using up to 4S LiPo with conservative gearing, or 1/10 scale buggies and stadium trucks weighing up to 4lbs using a 2-4S LiPo battery.
