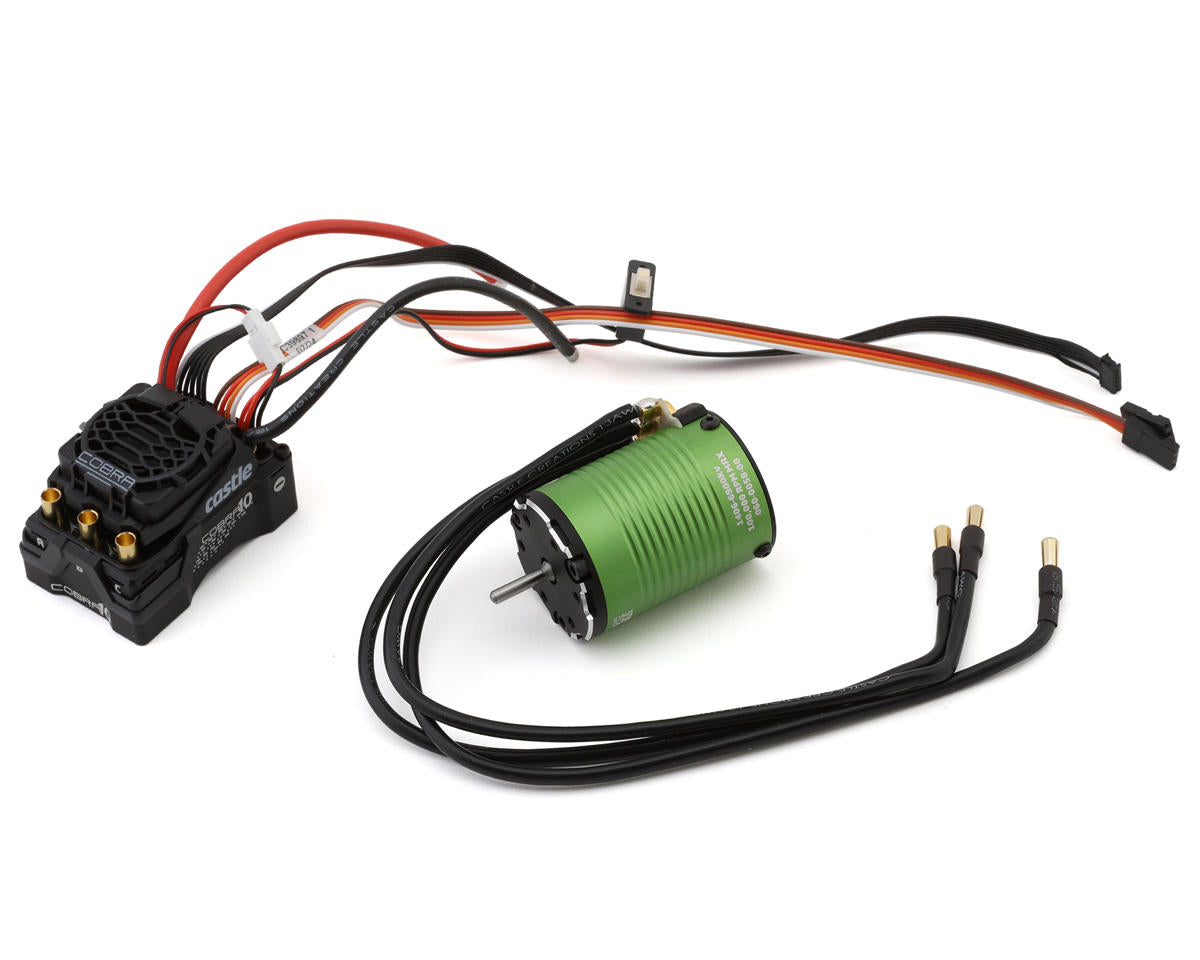

Castle Creations Cobra 10 6S 1/10 Brushless Combo w/1406 Sensored Motor (6900kV)

The Castle Creations Cobra 10 6S 1/10 Brushless Combo pairs a Cobra 10 ESC with a 1406 Sensored Brushless Motor rated at 6900kV. The ESC supports 2-6S LiPo input, while the included motor is specified for 2S LiPo use.

ESC Features

• 32-bit dual-core processor
• Enhanced data logging with faster sampling rates
• CRYO-DRIVE™ technology for reduced operational temperatures
• Water-resistant CNC aluminum case
• 8A peak adjustable BEC
• SmartSense™, Sensored Only, and Brushed Motor Operation Modes
• Premium forged heatsink with elliptical fins
• Thermally controlled 25mm cooling fan
• Auxiliary wire for on-the-fly adjustments
• Audible alerts for diagnostics

Included

• Cobra 10 ESC
• 1406 Sensored Brushless Motor
• Castle Link V4 USB Adapter
• 250mm Direct Connect Sensor Wire
• Product Manual

ESC Specifications

• Suggested application: 1/10
• Motor type: Brushless-Sensored
• Input voltage: 2-6S LiPo (7.4-25.2V)
• Dimensions: 2.2x1.51x1.44in (55.88x38.35x36.58mm)
• Weight: 4.02oz (114g)
• BEC voltage: 5-8V (5.5V Default)
• BEC peak current: 8A
• Motor connector: 4mm Female Bullets
• Battery connector: Bare Wire
• Battery wire: 12AWG
• Programming: Castle Link Windows™ (Windows 10+ Required)

Motor Specifications

• Size: 6900kV
• Type: Brushless-Sensored
• Voltage: 2S LiPo (7.4V)
• Connector: 4mm Male Bullets
• Dimensions: 1.95x1.42in (49.5x36mm)
• Shaft length: 0.59in (15mm)
• Shaft diameter: 0.12in (3.17mm)
• Weight: 6.8oz (193g)
• Max. recommended vehicle weight: >4lbs (64oz)

The Cobra 10 ESC is designed to handle up to 6S LiPo batteries, but the included 1406 motor allows a maximum of 2S batteries. Castle Creations recommends this motor combination for 1/10 scale vehicles weighing less than 4lbs, including 1/10 scale touring cars and 2WD buggies using a 2S LiPo. It is not recommended for 2WD or 4WD short course trucks.
