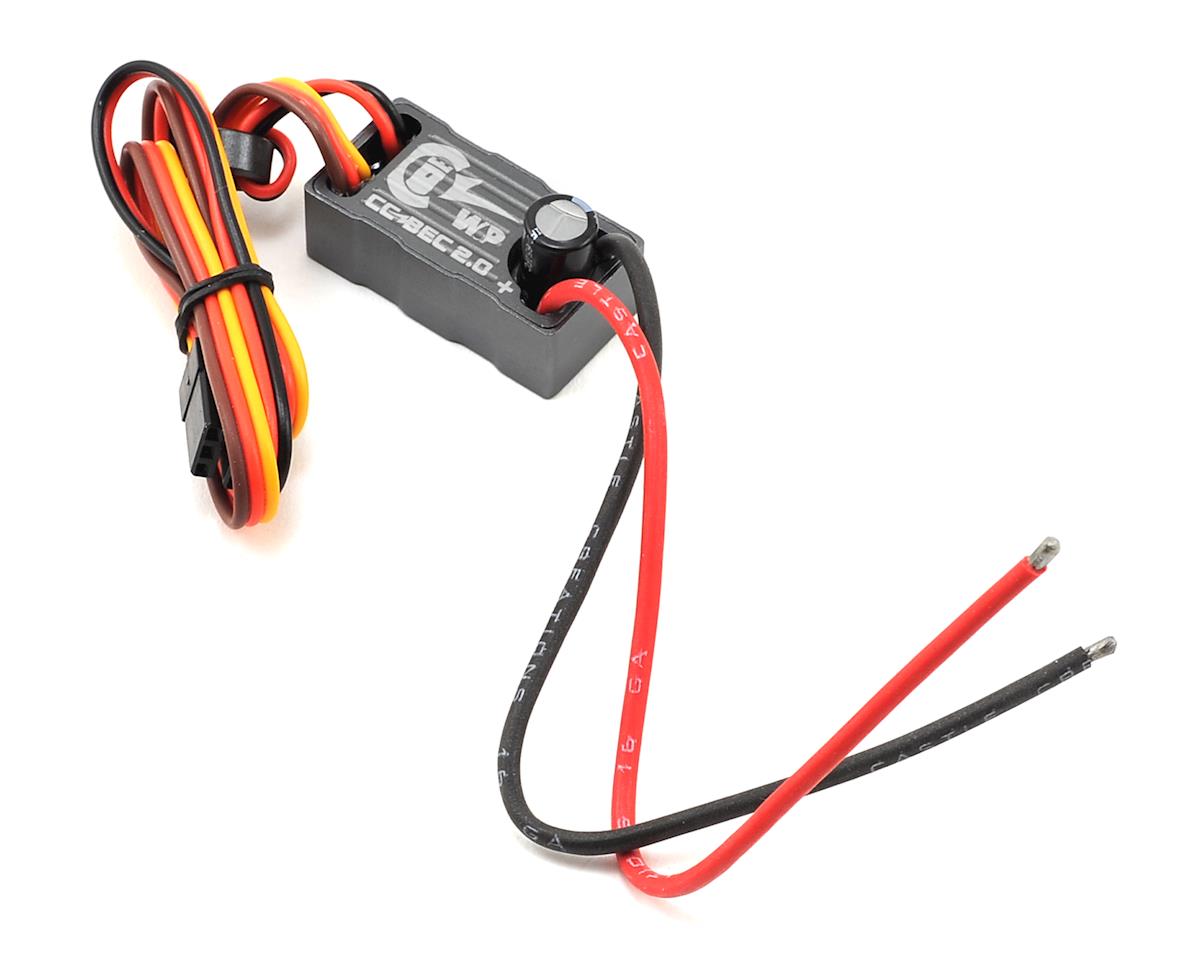

Castle Creations BEC 2.0 Waterproof BEC Voltage Regulator (15 Amp)

The Castle Creations BEC 2.0 Waterproof BEC Voltage Regulator provides adjustable power for sensitive radio equipment, servos, cameras, and other accessories. It features a 15A peak regulator in a CNC machined, waterproof aluminum case and supports high-voltage applications up to 14S without brake enabled or 12S with brake.

Features

• Waterproof aluminum case
• 15A peak current, dependent upon input and output voltage
• Heavy duty, dual output wires
• Adjustable output voltage from 4.75 to 12V using Castle Link, sold separately
• Default output setting: 5.25V

Specifications

• Applications: Crawlers, Marine, Sea Planes, UAS, Industrial
• Continuous current: 10A at 4.75~6.0V output
• Continuous current: 9A at 6.25~8.5V output
• Continuous current: 8A at 8.75~10.0V output
• Continuous current: 7A at 10.25~12.0V output
• Maximum voltage: Surface: 12S (50.4V)
• Maximum voltage: Air (w/Brake): 12S (50.4V)
• Maximum voltage: Air (No Brake): 14S (58.8V)
• Size (LxWxH): 35x18x19mm (1.37x.69x.75")
• Weight: 28g (1.0 oz) with full length wires

Important: The CC BEC 2.0 should never be operated in series or parallel with another BEC or with a backup receiver pack connected to the RX/Servo side of the circuit.
