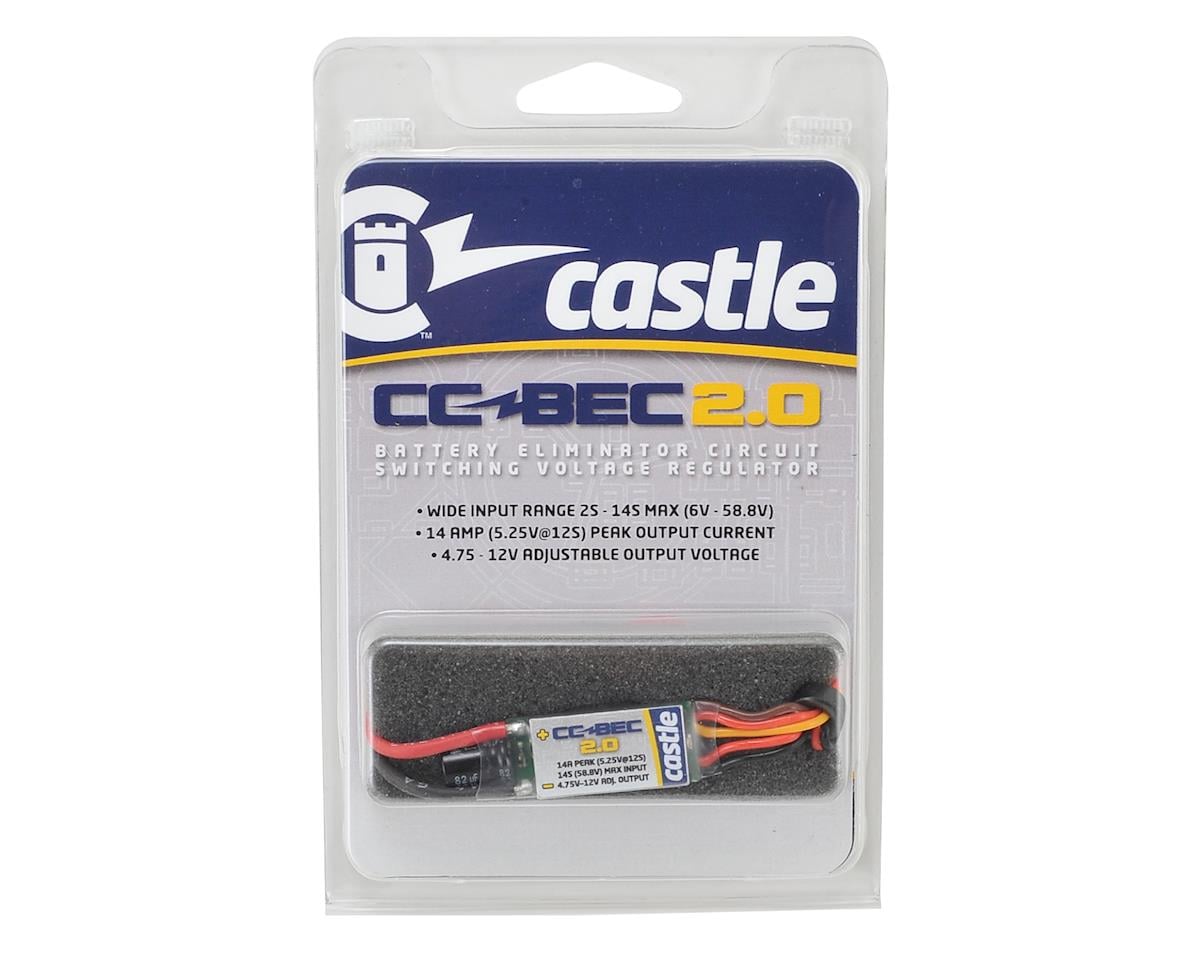

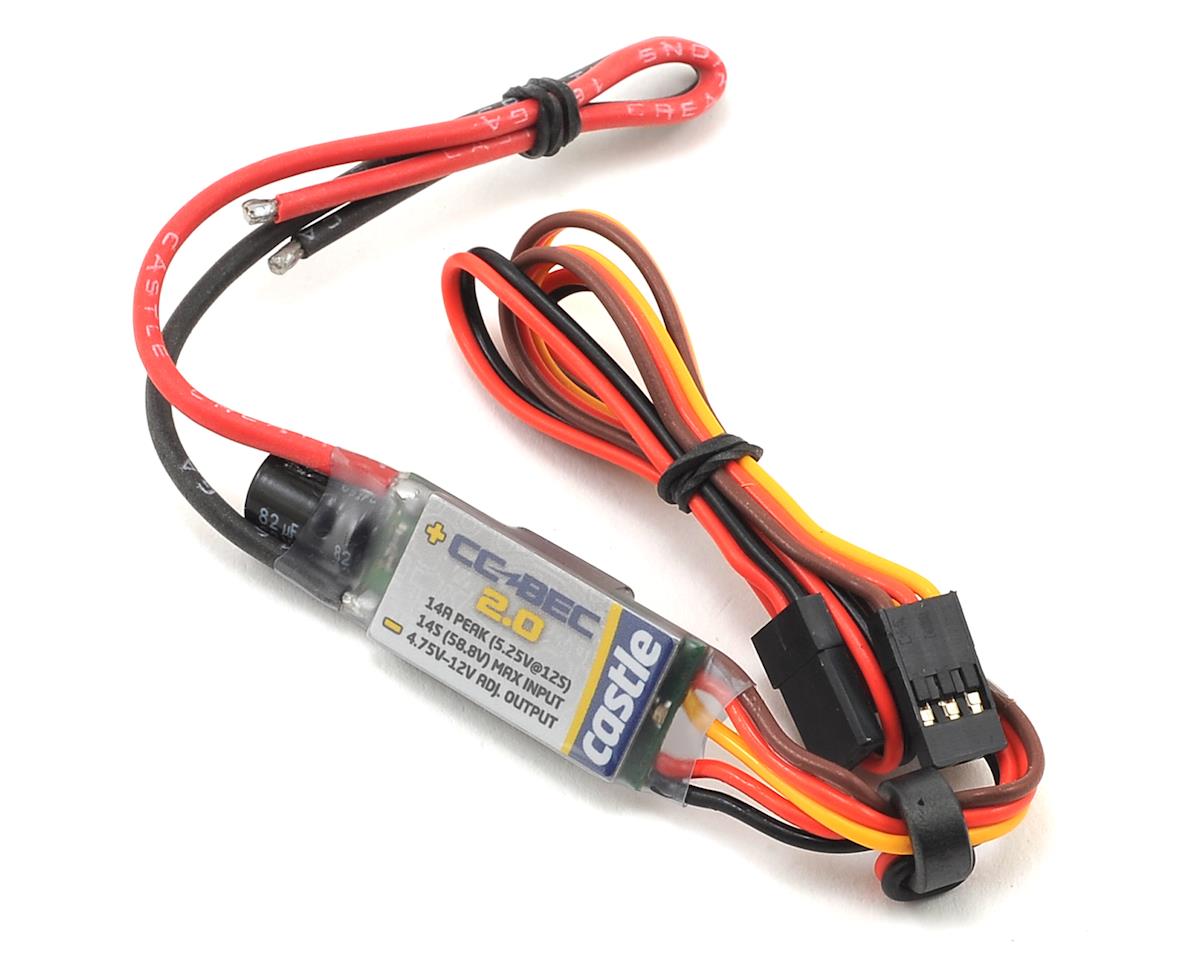

Castle Creations BEC 2.0 BEC Voltage Regulator (14 Amp)

The Castle Creations BEC 2.0 BEC Voltage Regulator provides dual output wires for powering radio equipment, servos, cameras, and other accessories. Its output can be adjusted from 4.75 to 12V using Castle Link, sold separately.

Features

• Peak current: 14A, dependent upon input and output voltage
• Default output voltage: 5.25V
• Applications: Helis, Planes, UAS, Racing
• Waterproof: No
• Do not operate in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.

Specifications

• Continuous current: 4.75~7.0V Output: 9A
• Continuous current: 7.25~8.5V Output: 8A
• Continuous current: 8.75~10.0V Output: 7A
• Continuous current: 10.25~12.0V Output: 6A
• Maximum voltage: Surface: 12S (50.4V)
• Maximum voltage: Air (w/Brake): 12S (50.4V)
• Maximum voltage: Air (No Brake): 14S (58.8V)
• Adjustable output voltage: 4.75 to 12V (set with Castle Link only - sold separately)
• Size (LxWxH): 43x14x8mm (1.69x0.56x0.32")
• Weight: 21g (0.7 oz) (with full length wires)
