Castle Creations 8S CapPack 2240UF Capacitor Pack (35V)

The Castle Creations 8S CapPack 2240UF Capacitor Pack helps reduce ripple voltage in high-voltage brushless motor applications. It supports the ESC by providing additional capacitance during conditions such as hard acceleration or long battery wires.

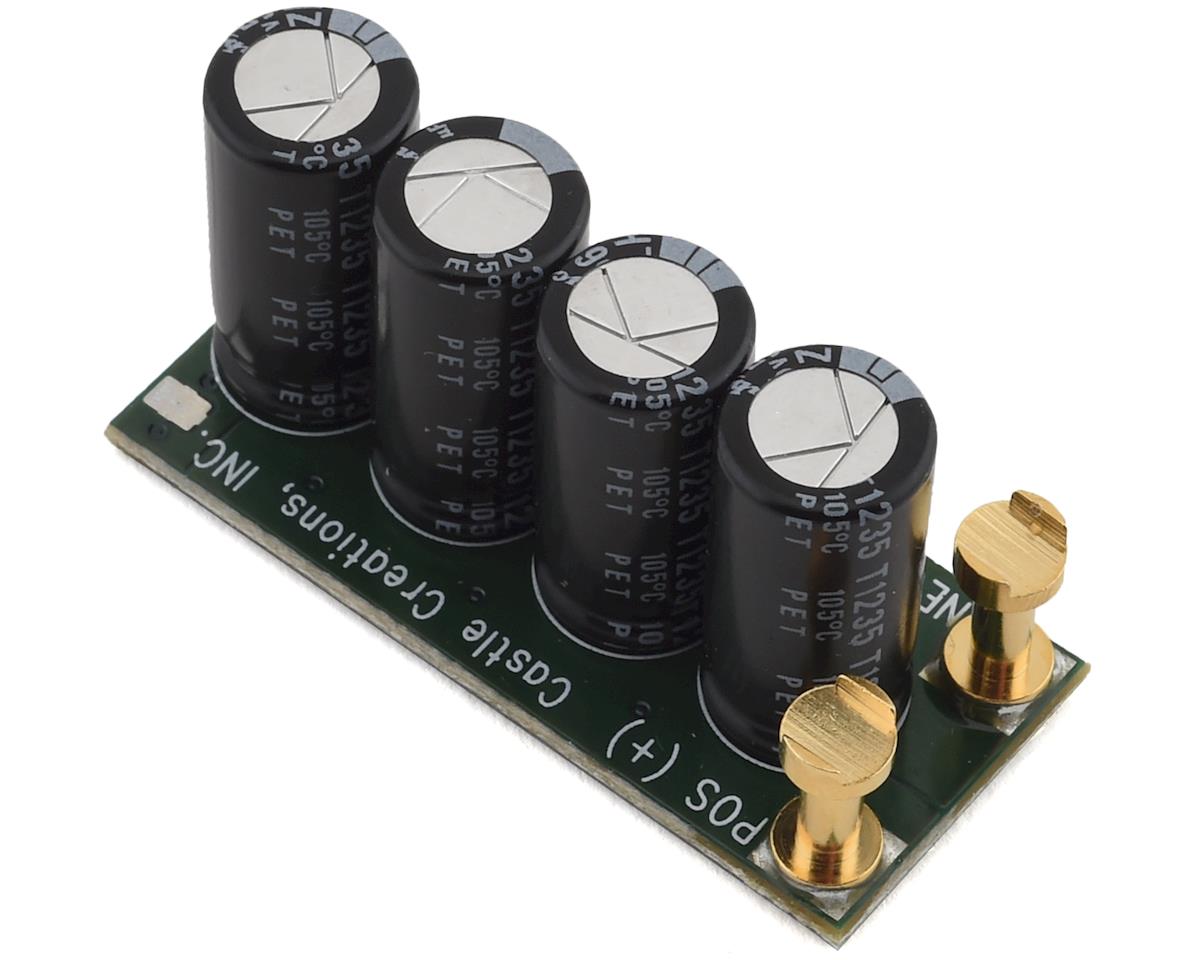

This pack uses four 560µF, 35V capacitors for 2240µF total capacitance and can be used with LiPo batteries up to 8 cells. Install it on the battery wires as close to the ESC as possible. Multiple CapPacks of the same type and voltage may be used in an application.

Specifications

• Part number: CSE011-0148-00
• Voltage range: 5V - 35V
• Capacitance: 2240µF total
• Capacitors: Four 560µF, 35V capacitors
• Length: 1.8" (45.7mm)
• Width: 0.78" (19.8mm)
• Height: 0.88" (22.1mm)
• Weight: 17g

Applications

• Surface vehicles, including high-performance RC cars and trucks
• 500 class and smaller helicopters
• Fixed-wing aircraft with larger electric power systems
