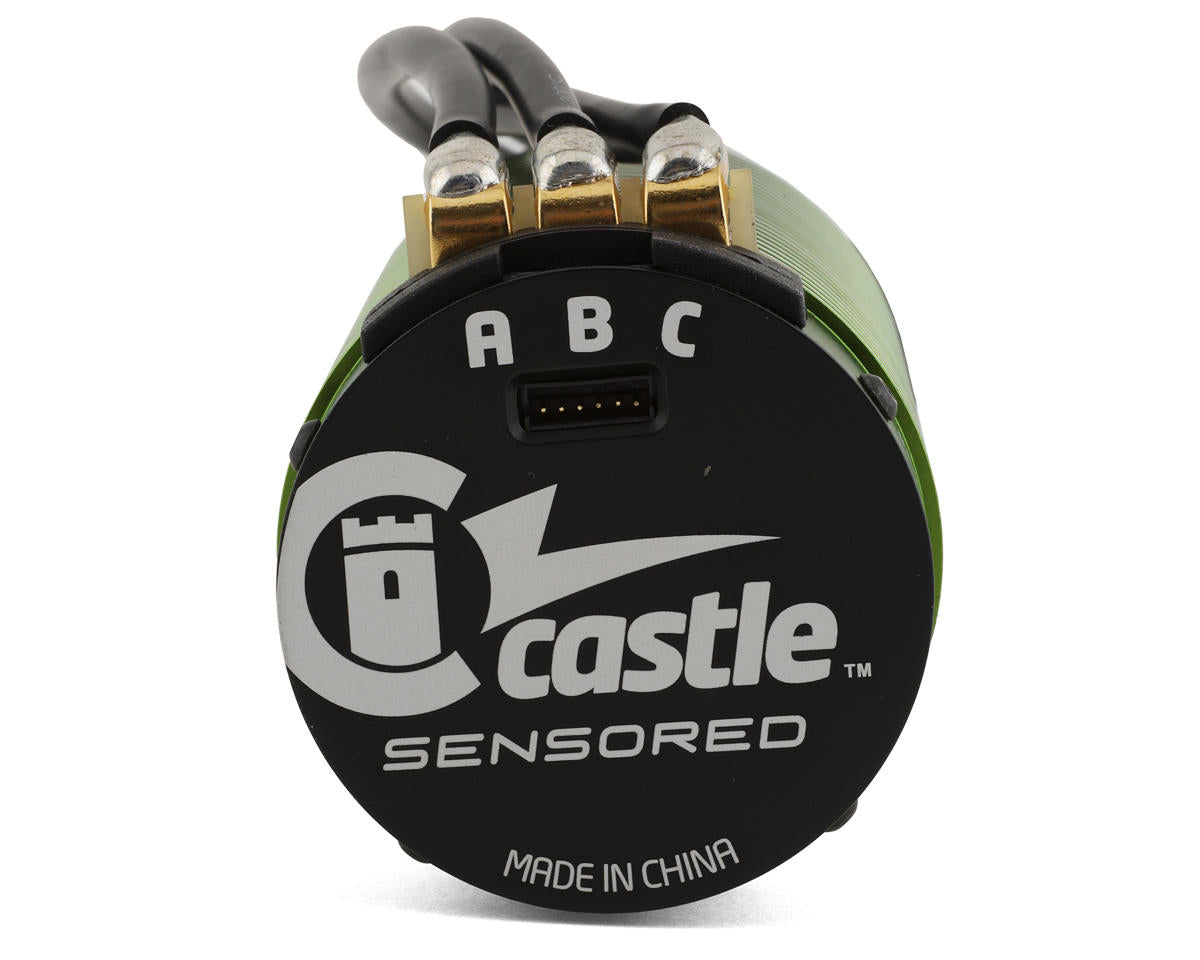

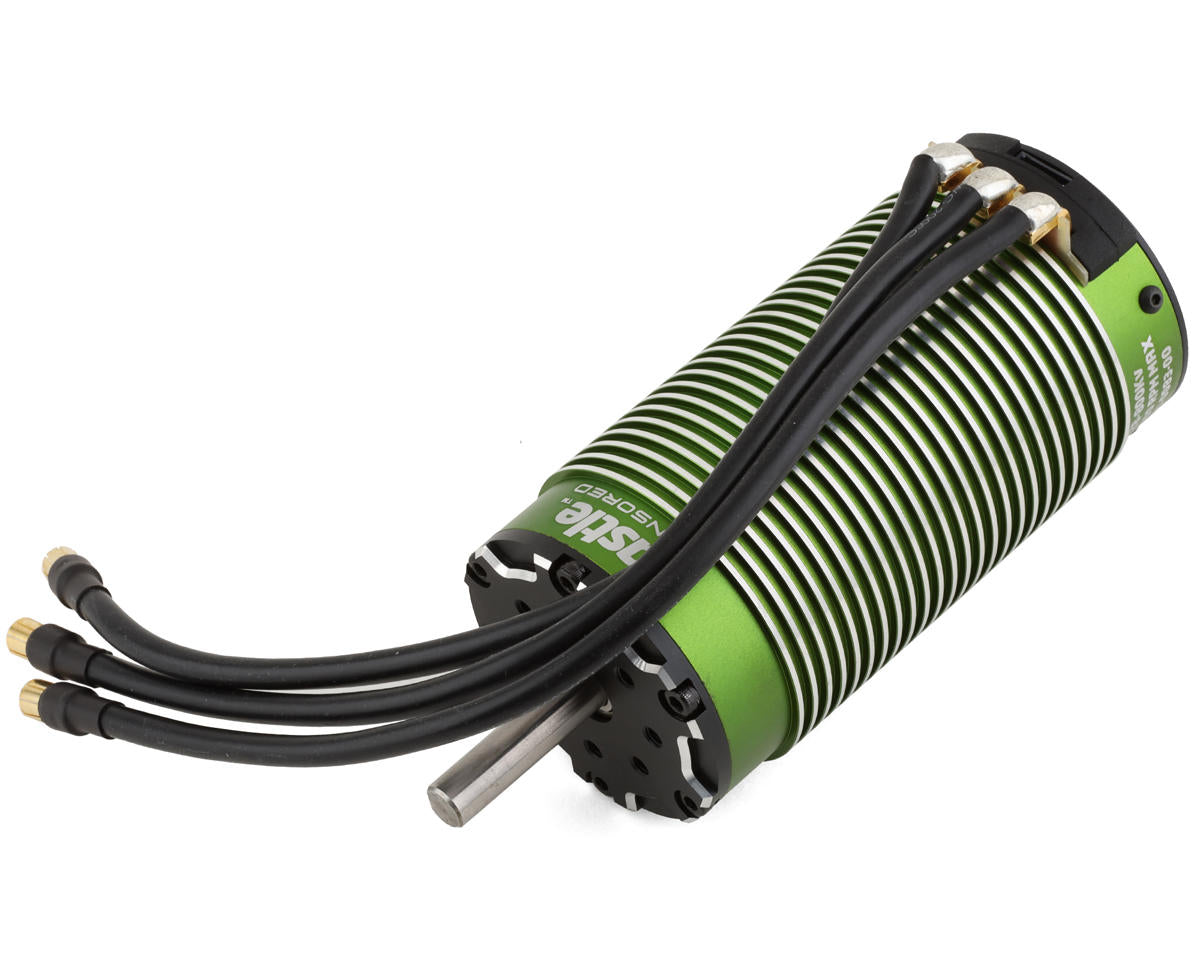

Castle Creations 2028 1/6 4-Pole Sensored Brushless Motor (800kV)

The Castle Creations 2028 1/6 4-Pole Sensored Brushless Motor delivers 800kV performance for 1/6-scale vehicles. Its 4-Pole, 12-Slot design supports efficient operation with reduced heat, while Sensored and sensorless running modes provide setup flexibility.

Features

• 800kV 4-Pole, 12-Slot sensored brushless motor
• Input voltage range: 8S LiPo
• Maximum RPM: 45,000
• High-strength, high-temperature grade neodymium sintered magnets with Kevlar rotor wrap
• Oversized NMB bearings and vibration dampening system
• Dual sensor ports
• 6.5mm male connector specification
• Cooling fan available separately; not included
• Recommended ESC: Mamba Monster X 8S
• Recommended for 4WD vehicles weighing less than 25lbs.

Specifications

• Length: 4.4" (112.7mm)
• Diameter: 2.2" (56.3mm)
• Weight with wires: 44 oz. (1.25kg)
• Shaft length: 30mm
• Shaft diameter: 8mm
• Mounting holes: 4mm holes at 30mm spacing
• Sensored capable: Yes
• Running modes: Sensorless and Sensored

Includes

• 2028 1/6 4-Pole Sensored Brushless Motor (800kV)

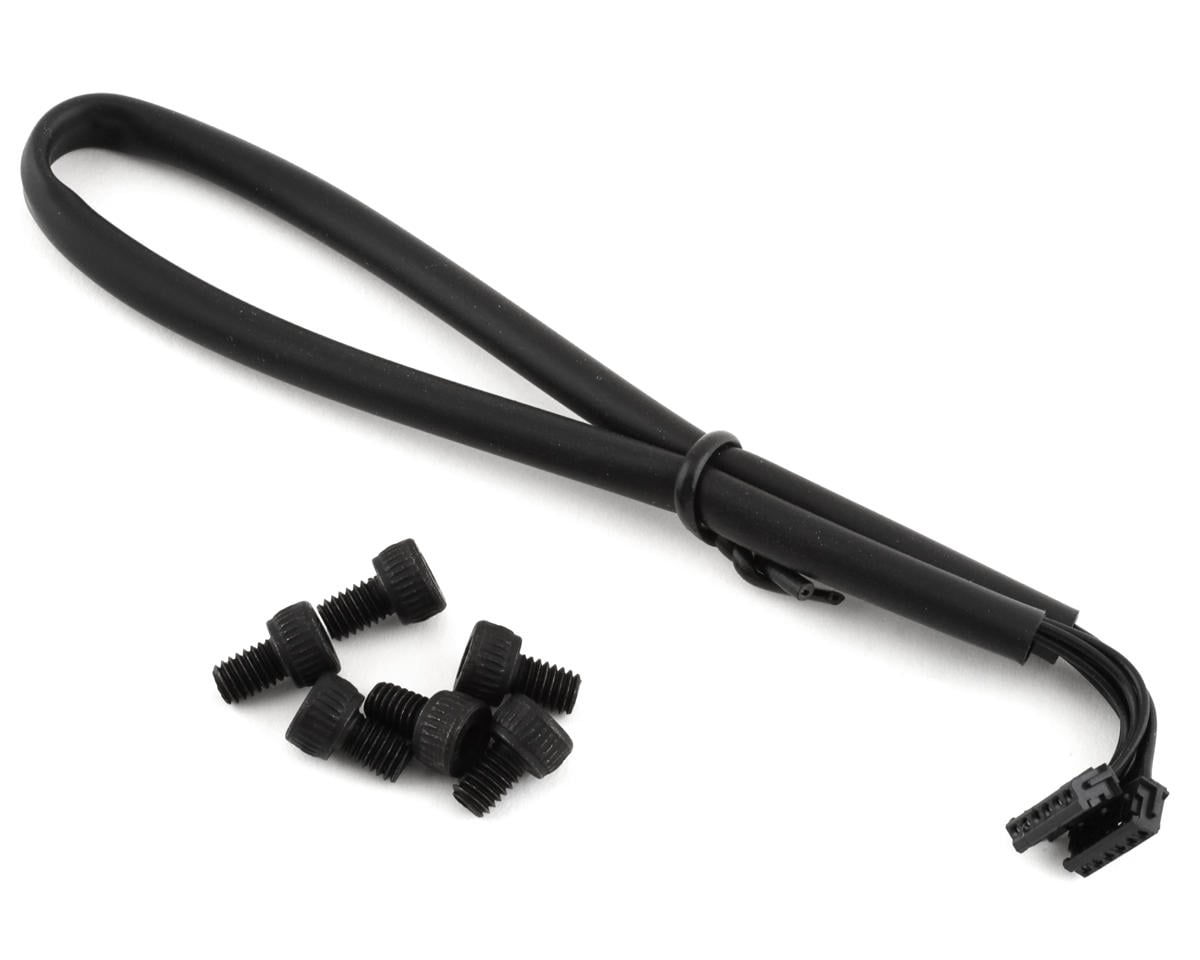

• Sensor cable

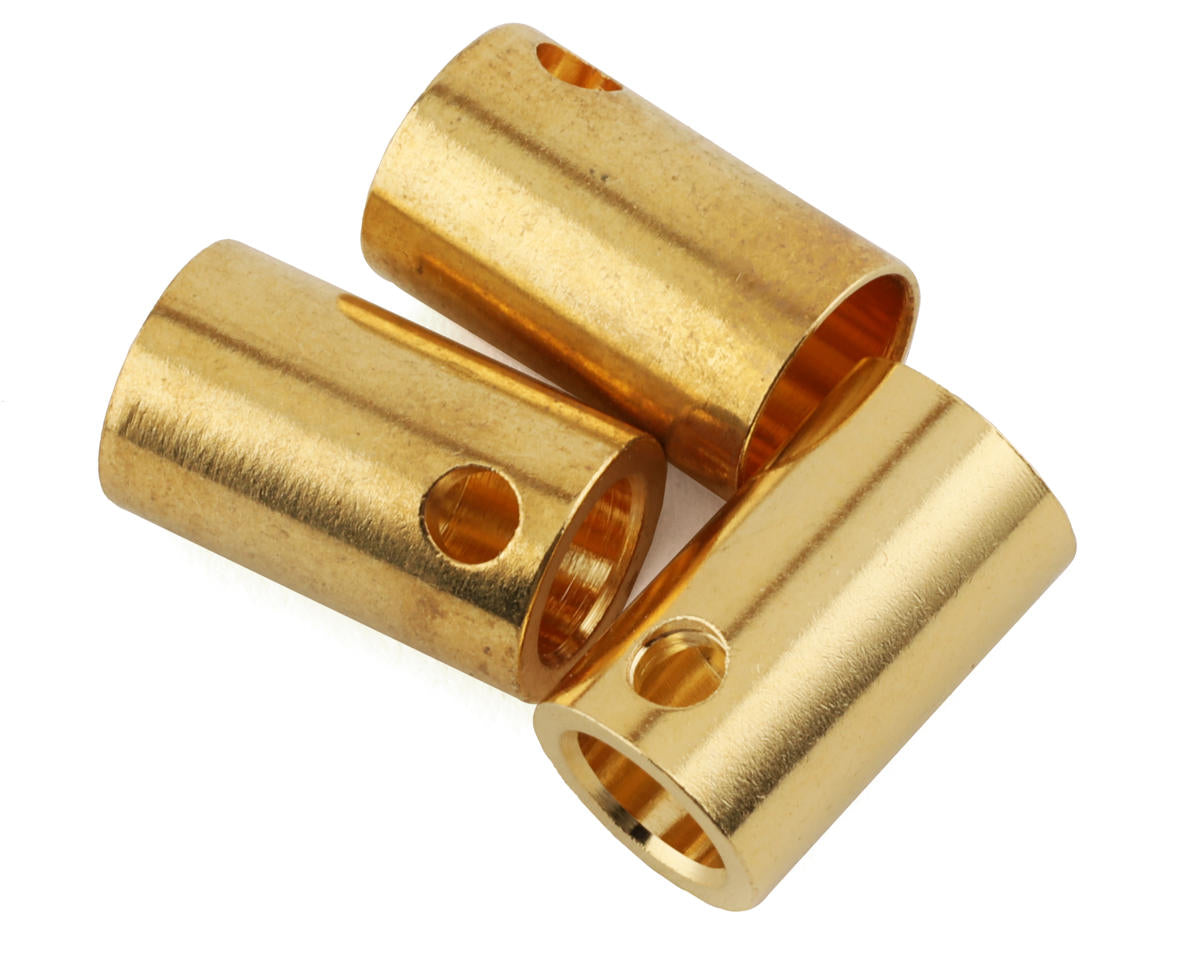

• Three 6.5mm female bullet connectors
• Mounting hardware
