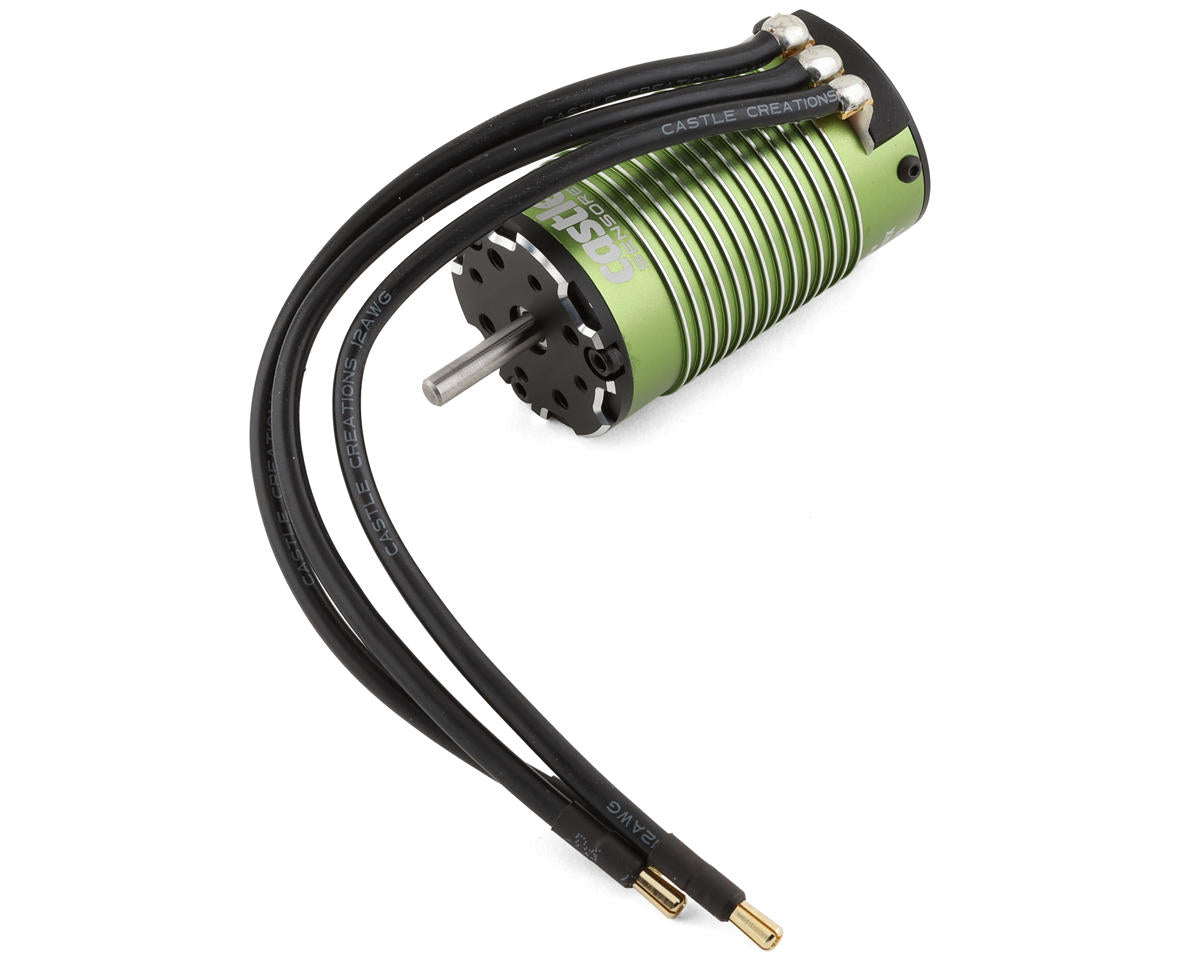

Castle Creations 1512 Sensored 4-Pole Brushless Motor (1800kV)

The Castle Creations 1512 Sensored 4-Pole Brushless Motor delivers 1800kV performance for 1:8 scale off-road buggies weighing up to 9 lbs. This eBuggy version is designed for use with the Mamba X 1/10 ESC and features 4mm male Castle Bullet Connectors, 12AWG wire, and a 210mm sensor wire.

Features

• 4-pole, 12-slot design
• QUIETSENSE technology helps shield the sensors from magnetic field noise
• Flux Shield and secondary Sense Magnets support precise, efficient startups
• Optimized design eliminates the need for mechanical timing adjustments
• Rebuildable front end bell/bearing and rotor/shaft assemblies

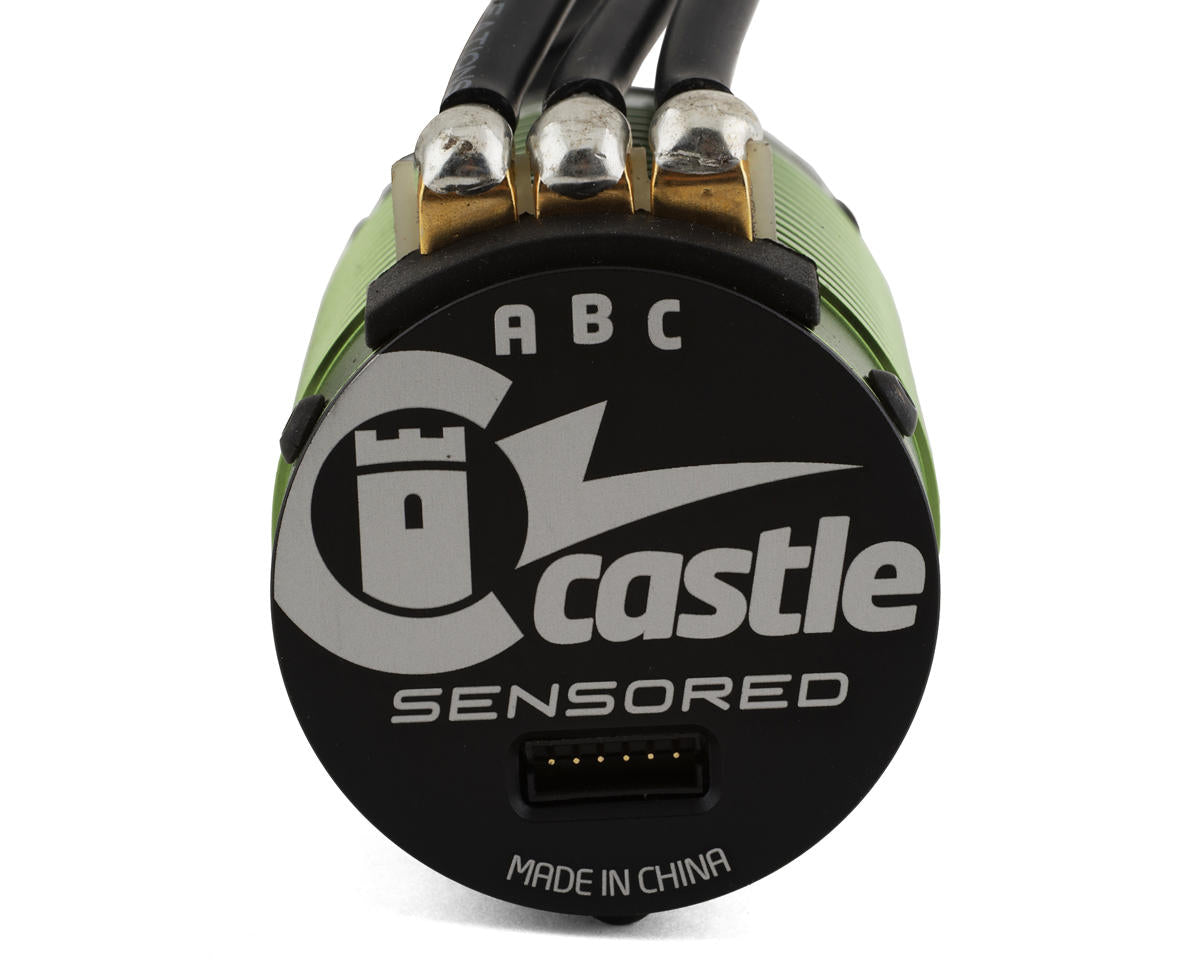

• ROAR standard sensor port with labeled connections
• Oversized NMB bearings, vibration dampening system, high-strength neodymium sintered magnets, and Kevlar rotor wrap

Specifications

• Input Voltage Range: 2S-4S LiPo (4s max when paired with Mamba X ESC)
• Kv: 1800
• Max. RPM: 60,000
• Length: 67.7mm
• Diameter: 40mm (41.4mm with fins)
• Weight (w/wires): 385g
• Shaft Length: 20mm
• Shaft Diameter: 5mm
• Mounting Hole Specifications: 3mm and 4mm @ 25mm
• Cooling Fan: Optional
• Connectors: 4mm male Castle Bullet Connectors

Included

• (1) 1512 Sensored 4-Pole Brushless Motor (1800kV)

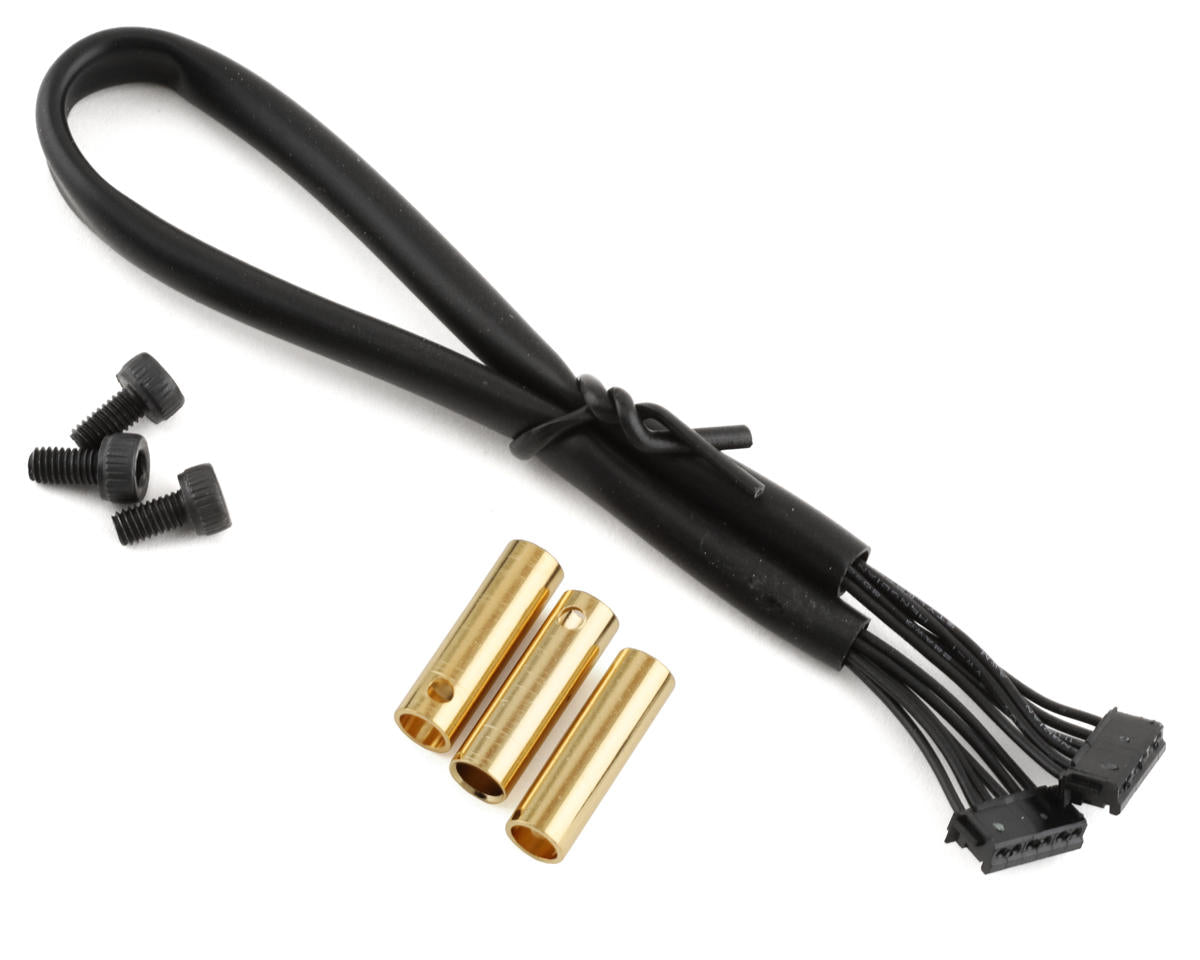

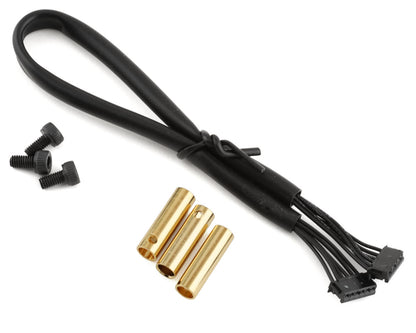

• (1) Sensor Cable (210mm)
• Mounting Hardware

Items Needed for Operation

• Compatible Electronic Speed Control (ESC)
