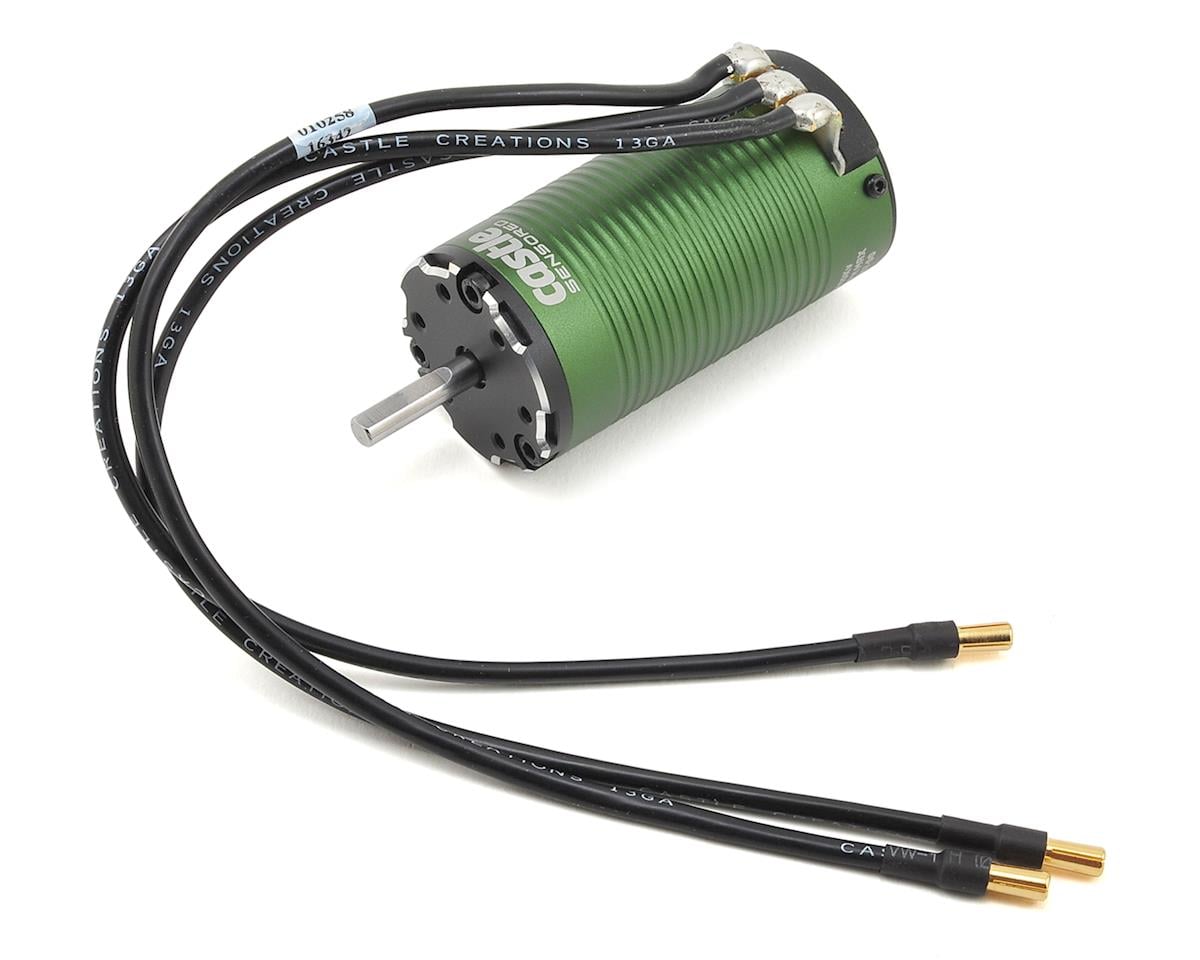

Castle Creations 1415 1Y 4-Pole Sensored Brushless Motor w/5mm Shaft (2400kV)

The Castle Creations 1415 1Y is a 4-pole, 12-slot sensored brushless motor designed for 1:10 scale 2WD and 4WD short course trucks. Its SmartSense technology uses rotor position sensors for smooth starts and low-speed control, then transitions to sensorless operation as the motor turns.

Features

• 2400kV 4-pole, 12-slot design
• SmartSense and QuietSense technology

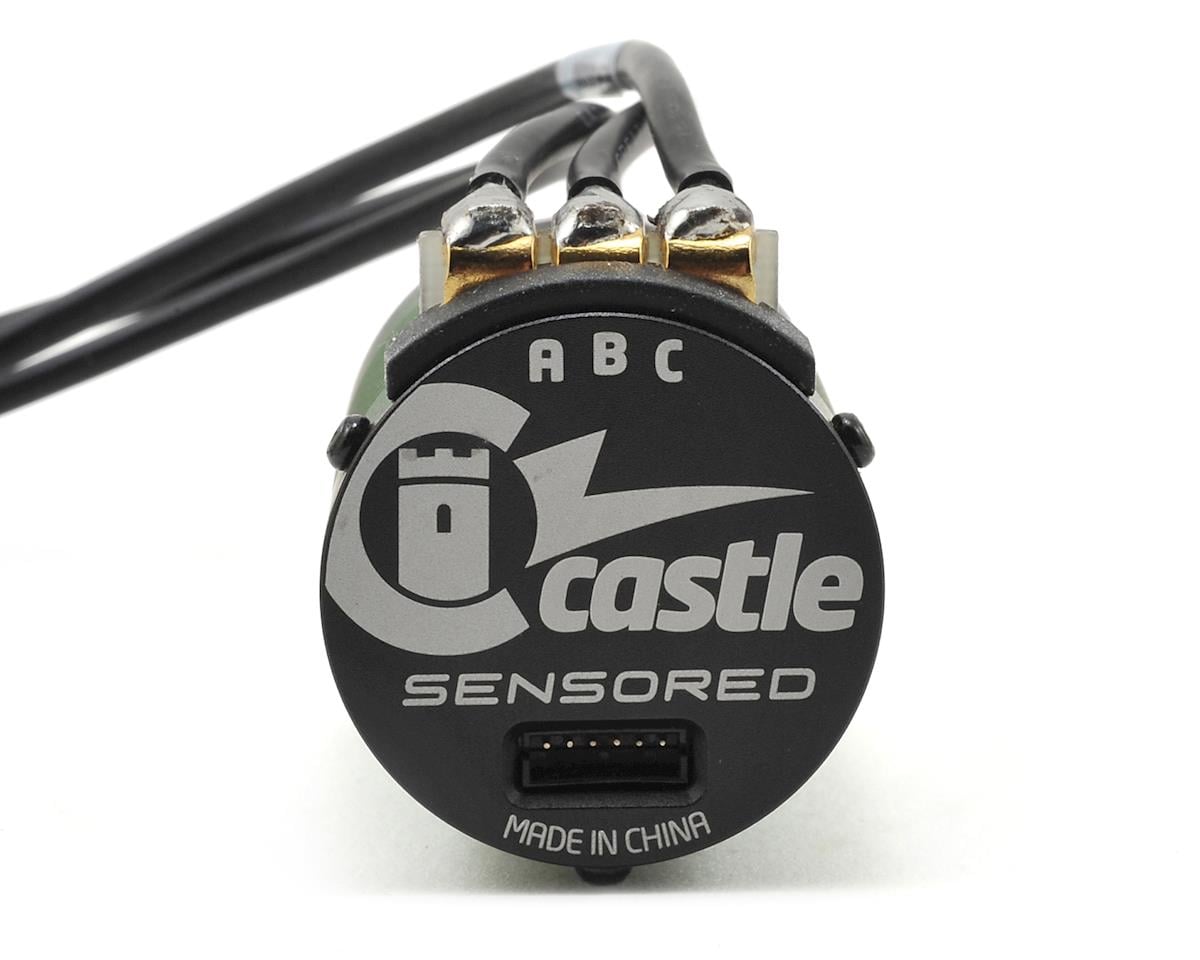

• ROAR standard sensor port with labeled connections
• Oversized gold-plated solder tabs
• High-strength 1800C neodymium sintered magnets
• Kevlar-wrapped rotor with hardened stainless steel shaft
• High-purity, high-temperature copper windings
• 6061-T6 billet aluminum heatsink can
• High RPM NMB oversized bearings
• Rebuildable design with replaceable front end bell, bearings, rotor and shaft

Specifications

• Input Voltage Range: 3-4S LiPo
• kV: 2400
• Max. RPM: 75,000
• Length: 69.5mm
• Diameter: 36mm
• Weight: 319g / 11.3oz with wires
• Shaft Length: 21mm
• Shaft Diameter: 0.197" (5mm)
• Mounting Hole Specifications: M3 @ 25mm
• Connectors: 4mm male Castle Bullet Connectors
• Cooling Fan: Optional - not included

Application

Ideal for 1:10 scale 2WD and 4WD short course trucks up to 6.5lb (3-4S). Recommended ESCs include the Mamba Max Pro, Mamba X and Monster X.
