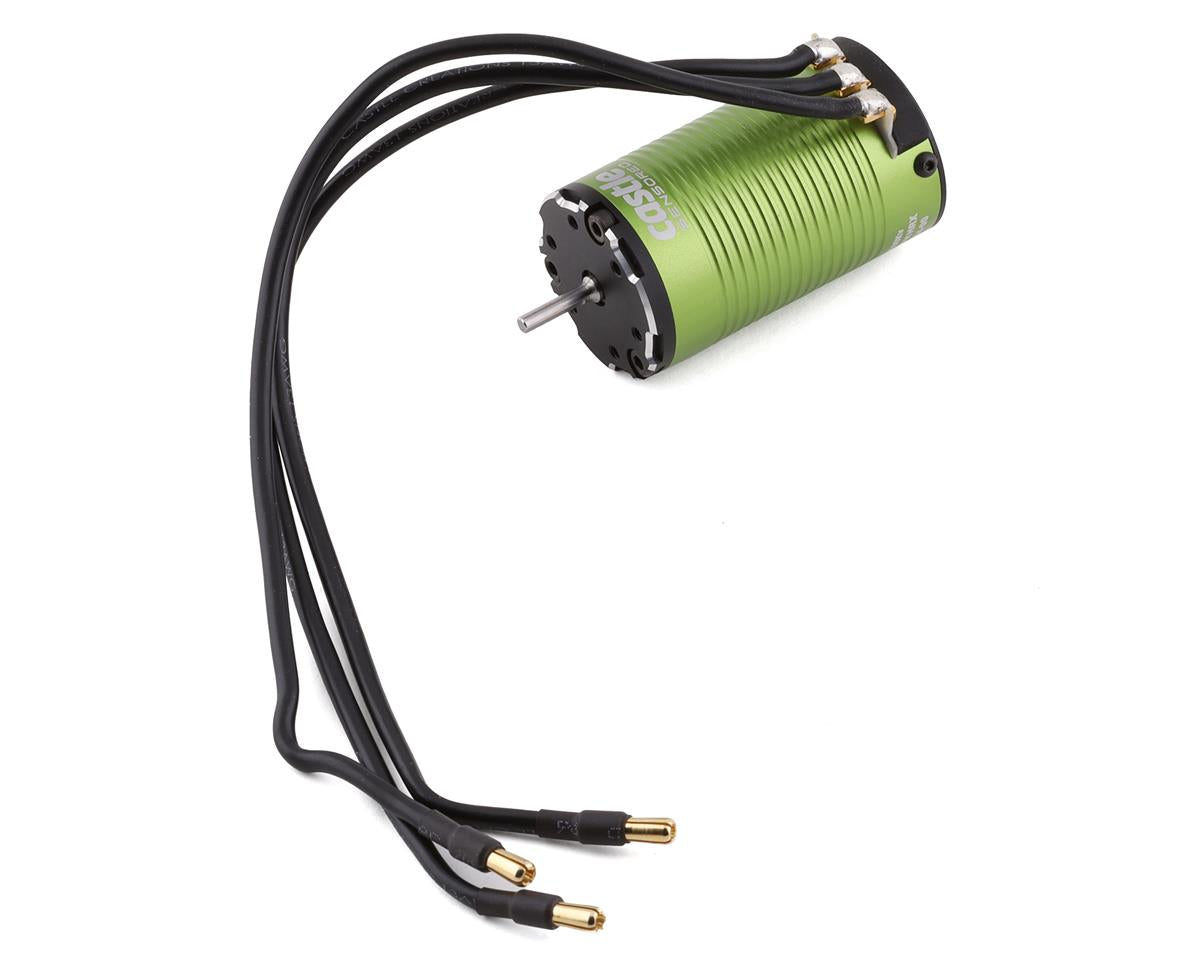

Castle Creations 1412 Sensored 4-Pole Brushless No Prep Drag Motor (6400kV)

The Castle Creations 1412 Sensored 4-Pole Brushless No Prep Drag Motor is designed for 2S LiPo No Prep RC drag racing. Its 6400kV mid-RPM design uses a longer motor format to provide high torque, acceleration, and high watt output, with SMARTSENSE™ operation for smooth sensored starts and efficient sensorless running.

Features

• 4-pole, 12-slot design for efficiency and reduced heat
• SMARTSENSE™ technology combines sensored startups with sensorless operation
• QUIETSENSE™ technology helps keep the motor and ESC in sync
• Optimized design eliminates the need for mechanical timing adjustments
• Rebuildable design with replaceable front end bell, bearings, rotor, and shaft
• ROAR standard sensor port and labeled connections
• High-strength 180°C neodymium sintered magnets
• Kevlar wrapped rotor and high RPM NMB oversized bearings
• 12 AWG high-strand wire with 6.5mm male Castle bullet connectors
• Hardened stainless steel shaft

Specifications

• Input Voltage Range: 2S LiPo
• kV: 6400
• Max. RPM: 75,000
• Length: 62.5mm
• Diameter: 36mm
• Weight (w/wires): 283g (9.98oz)
• Shaft Length: 21mm
• Shaft Diameter: 0.197" (5mm)
• Mounting Hole Specifications: M3 @ 25mm
• Cooling Fan: Optional - not included
• Connectors: 6.5mm male Castle Bullet Connectors

Application Guidelines

For 2WD Street Eliminator on 2S. Recommended ESCs include the Mamba Monster X and Mamba Monster X 8s. Due to the motor's high power nature, a 1/8th scale ESC or larger is highly recommended.
