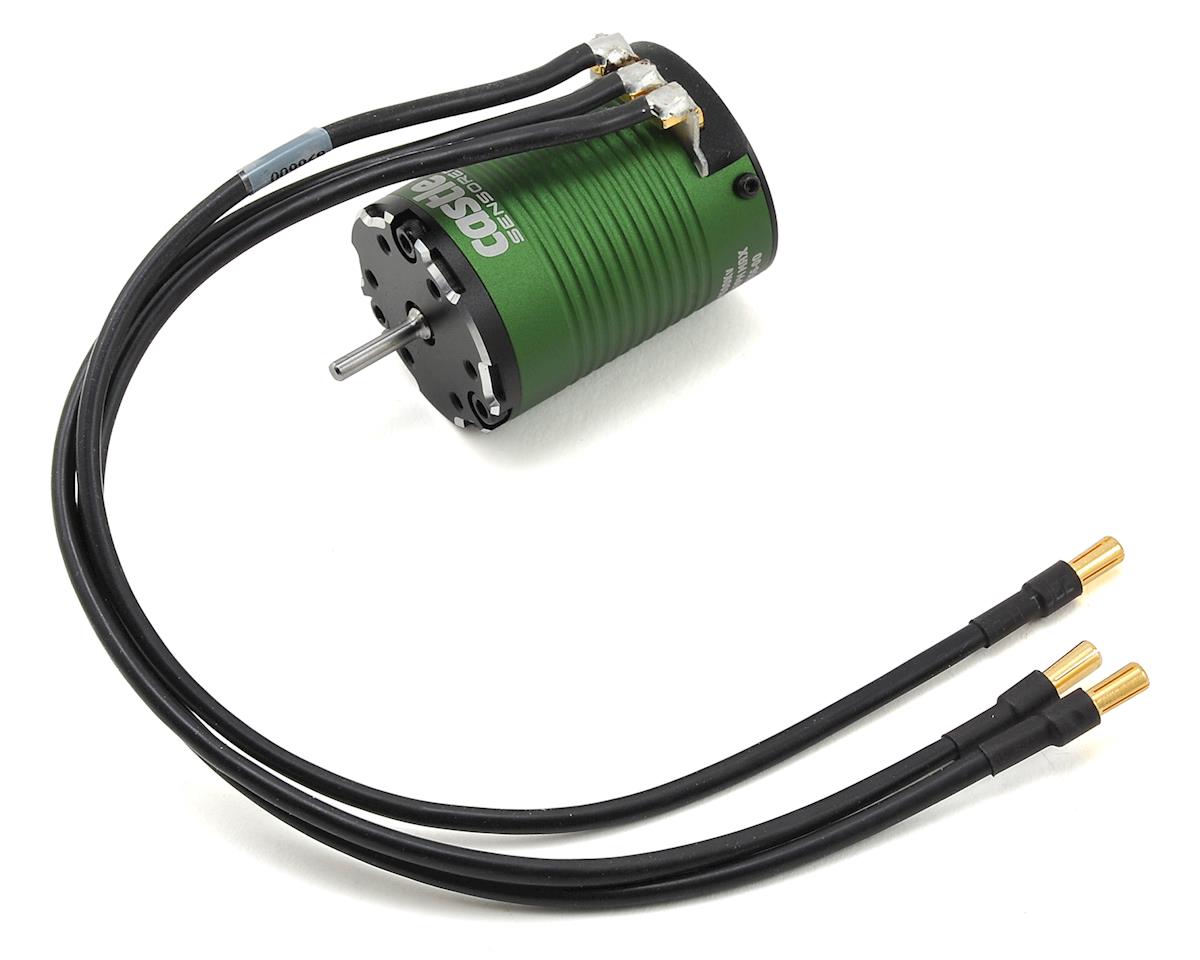

Castle Creations 1406 Sensored 4-Pole Brushless Motor (7700kV)

The Castle Creations 1406 Sensored 4-Pole Brushless Motor delivers smooth sensored starts, precise low-speed control, and efficient sensorless operation through Castle SMARTSENSE™ technology. Its 4-pole, 12-slot design is built for high efficiency and reduced heat in select 1/10th scale applications.

Features

• 7700kV 4-pole, 12-slot brushless motor
• SMARTSENSE™ technology for smooth starts and efficient sensorless operation
• QUIETSENSE™ technology helps keep the motor and ESC in sync
• Oversized gold-plated solder tabs and 4mm male Castle Bullet Connectors
• ROAR standard sensor port with labeled connections
• Rebuildable design with replaceable front end bell, bearings, rotor, and shaft
• High-strength 180°C neodymium sintered magnets
• Kevlar wrapped rotor and hardened stainless steel shaft
• 6061-T6 billet aluminum heatsink can
• High RPM NMB oversized bearings

Specifications

• Input Voltage Range: 2 LiPo
• kV: 7700
• Max. RPM: 100,000
• Length: 49.5mm
• Diameter: 36mm
• Weight (w/wires): 189 g / 6.7oz
• Shaft Size: 15mm
• Shaft Diameter: 1/8" (3.17mm)
• Mounting Hole Specifications: M3 @ 25mm
• Connectors: 4mm male Castle Bullet Connectors
• Running modes: SMARTSENSE™, Sensored, Sensorless

Application Guidelines

• Ideal for 1/10th scale on-road cars for 2s use
• Suitable for lighter off-road 1/10th stadium trucks and buggies with conservative gearing
• Not for use in 2WD or 4WD short course trucks
• Recommended vehicle weight: Up to 4lbs
• Recommended ESC(s): Mamba Max Pro, Mamba Monster X Max
