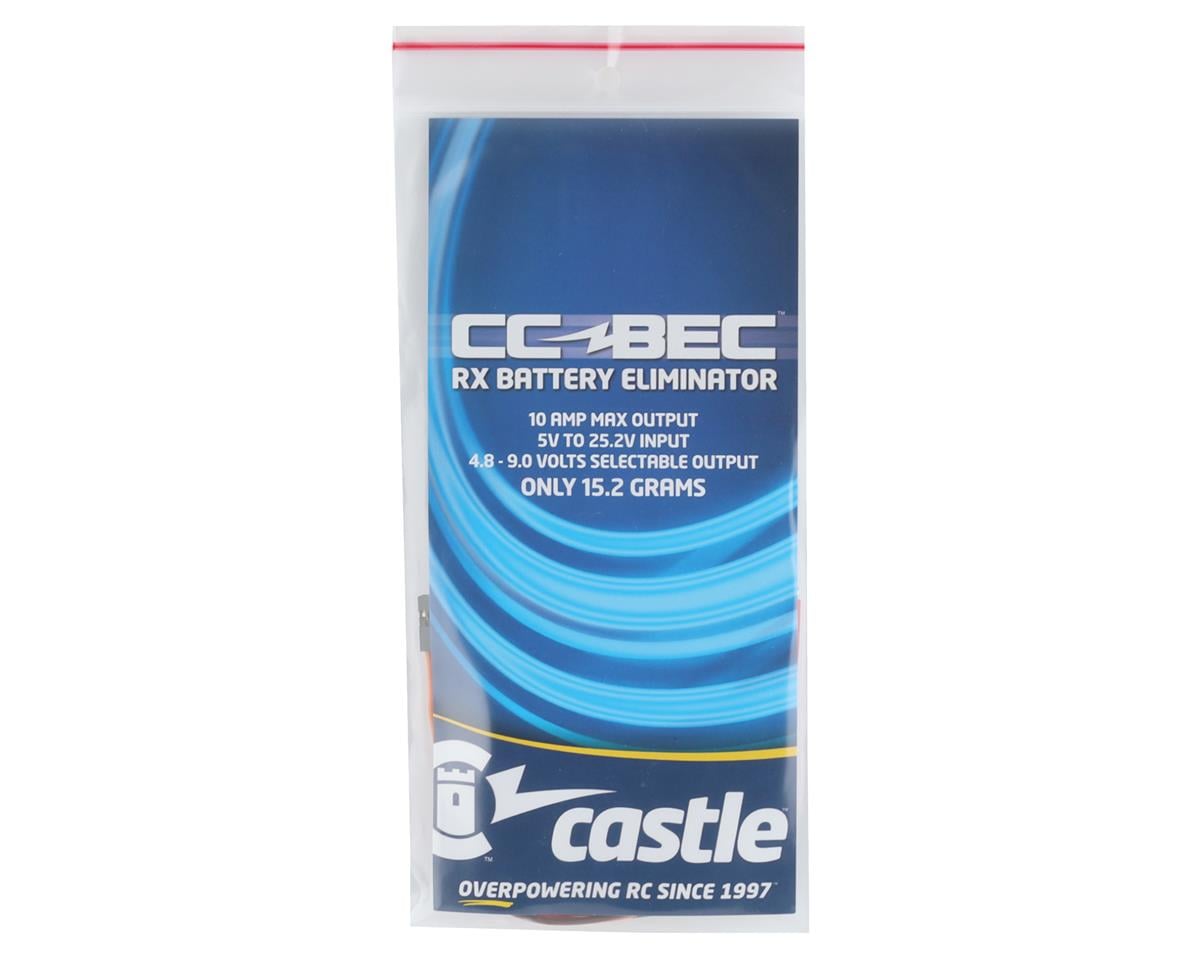

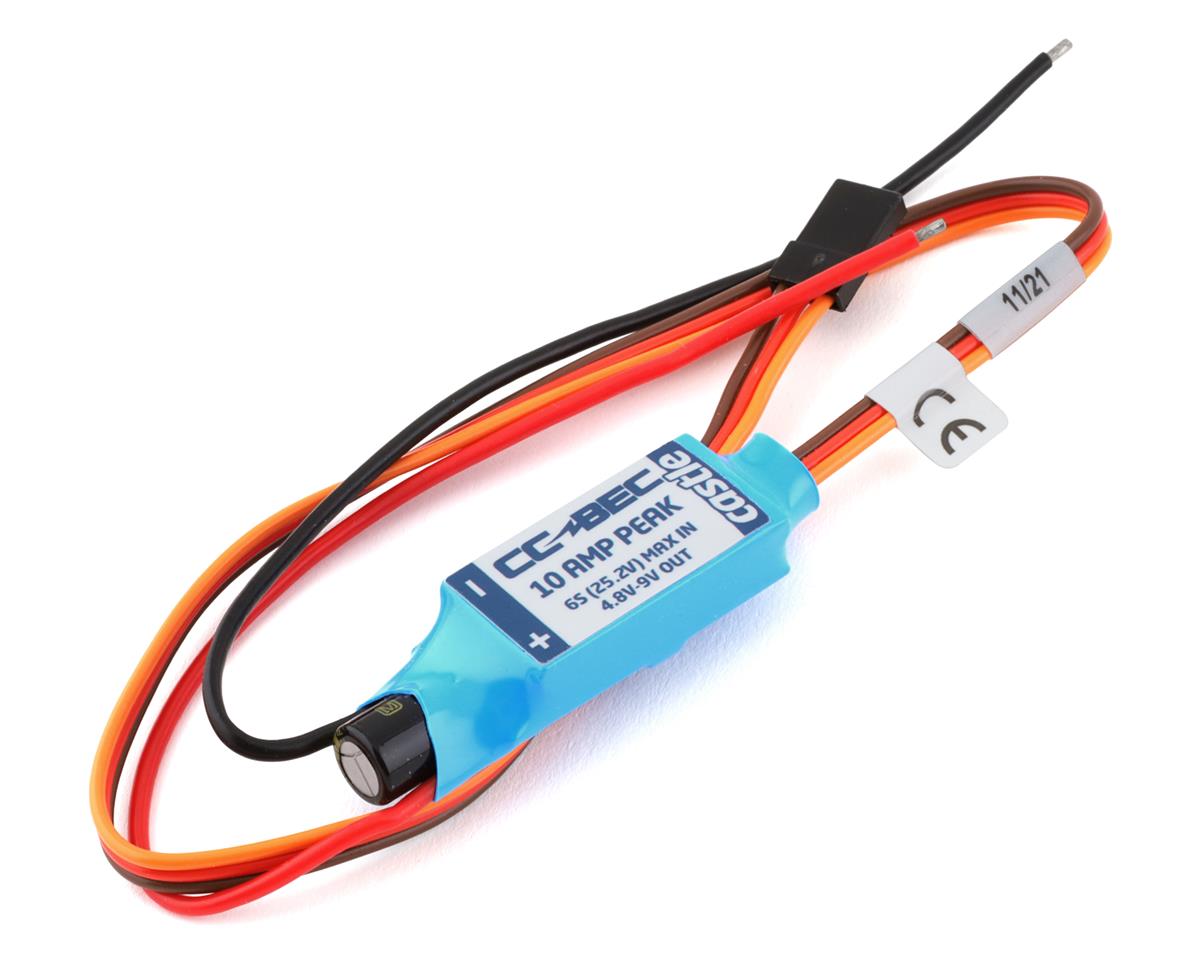

Castle Creations 10 Amp Adjustable BEC

The Castle Creations 10 Amp Adjustable BEC draws voltage from the motor battery and reduces it to a level suitable for the receiver and servos, eliminating the need for a separate receiver and servo battery pack. It is intended for applications with multiple high-power servos or motor packs above 3S.

Specifications

• Peak current output: 10 amps
• Continuous current output: 7 amps at 12V input; 5 amps at 24V input
• Output voltage: 5.1V; user-adjustable from 4.8 to 9V using Castle Link, sold separately
• Input voltage: 5V to 25.2V (2S to 6S LiPo)
• Dimensions: 1.2” (30mm) length, 0.6” (15mm) width, 0.4” (10mm) height
• Weight: 0.4 oz (11 grams)

Note: Current ratings are determined with a 5mph airflow on the BEC. Servo connectors are not rated for current in excess of 5 amps. Replace the connectors if more than 5 amp currents are anticipated.
