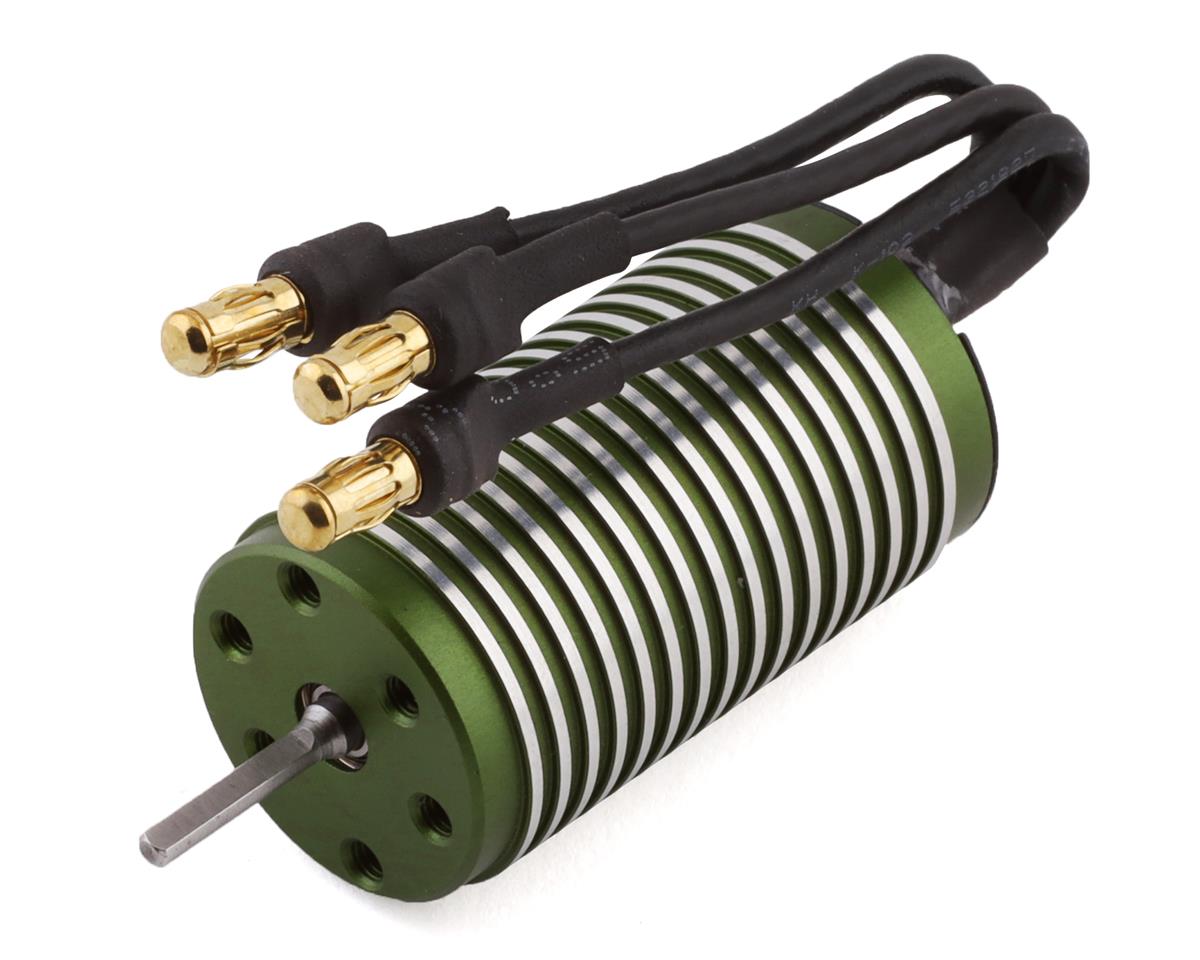

Castle Creations 0808 4-Pole 1/18 Brushless Motor (8200KV)

The Castle Creations 0808 4-Pole 1/18 Brushless Motor delivers 8200KV performance for on-road and off-road applications running up to 2S LiPo and weighing up to 1.5lbs.

Specifications

• Input voltage range: 2S LiPo, 4-7 cell NiMH
• KV: 8200
• Length: 1.5" (38mm)
• Diameter: 0.79" (20mm)
• Weight with wires: 1.8 oz. (50g)
• Shaft diameter: 0.08" (2mm)
• Mounting hole specifications: 2.5mm @ 1/2", 14mm, 5/8"
• Cooling fan: No
• Connectors: 3.5mm gold connectors; female connectors included
• Maximum operating temperature: 180°F (82°C)

Application Guidelines

• For vehicles weighing up to 1.5lbs and running up to 2S LiPo.
• Not intended for 1/16th scale or 1/14th scale vehicles, including Losi Mini-8ight/T and Traxxas Mini E-Revo.
• Castle recommends the Sidewinder Micro 2 ESC for 2WD and lighter 4WD vehicles weighing <1.25lbs.
• Castle recommends the Mamba Micro X for heavier 4WD vehicles weighing <1.5lbs.

Operation Requirements

You must add the connector of your choice to the battery leads. Castle recommends a high current connector rated for at least 40 amps.
