BowHouse RC SVT Spur Gear Adapter

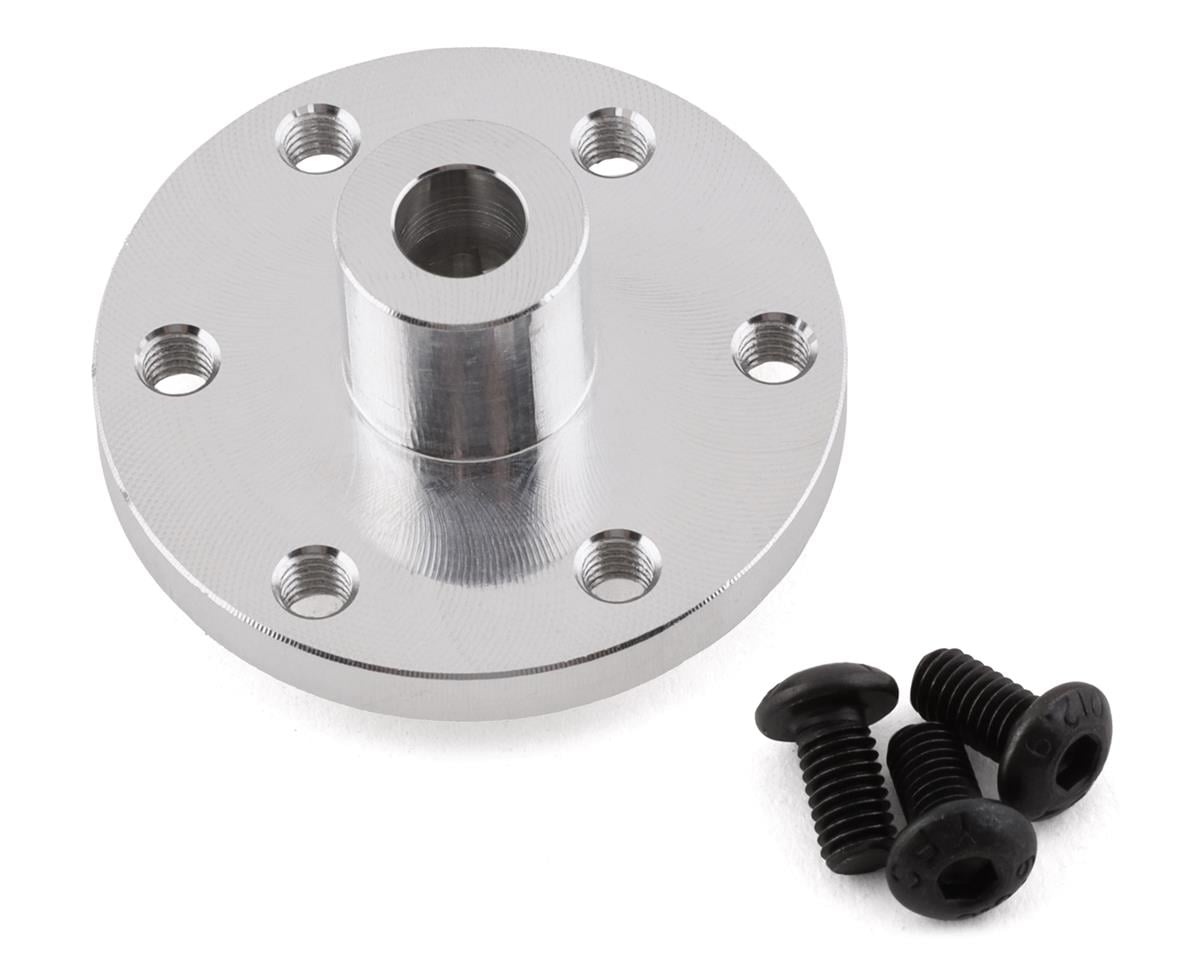

The BowHouse RC SVT Spur Gear Adapter lets you use select Axial, Robinson Racing, Kimbrough, Traxxas and Incision spur gears with the Element Enduro and Stealth X transmission. This CNC machined aluminum adapter supports conversion from 48P gearing to 32P or .8 Mod gearing.

Compatible Spur Gears

• Axial: 56T 32P Spur (AXI31027), 87T 48P Spur (AXI30672)
• Kimbrough: 62T 32P Spur (KIM247)
• Robinson Racing: 58T 32P Blackened Steel Spur (RRP1558)
• Traxxas: 56T .8 Metric (TRA3957), 54T .8 Metric (TRA5936)
• Incision: 56T 32P Spur (INCIRC00402)

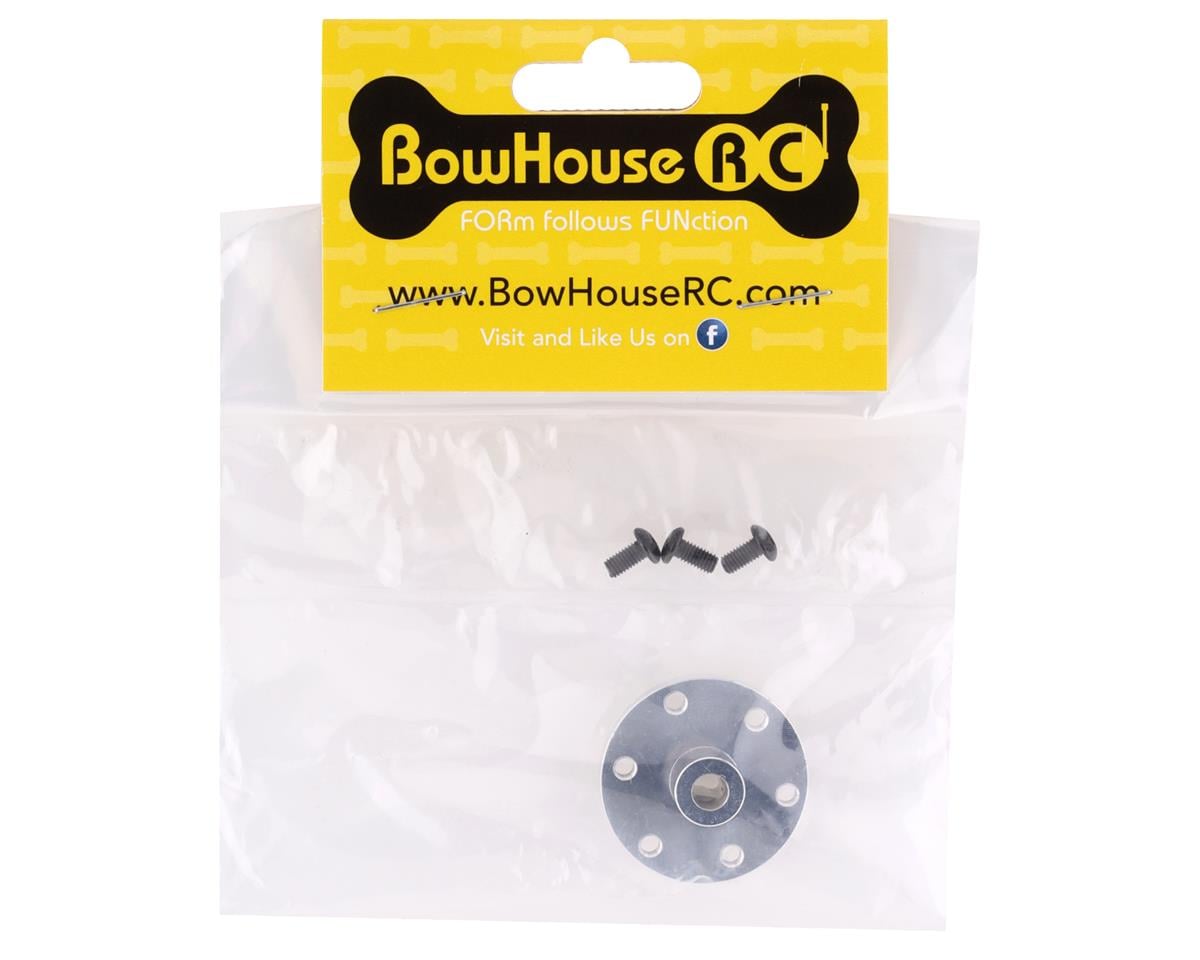

Includes

• (1) spur gear adapter
• (3) M3x6mm screws

Installation Notes

Remove the spur gear cover, stock spur gear and spur gear hubs. Mount the selected spur gear to the side of the adapter with the longer shaft using the included M3x6mm screws and thread lock. The mounting holes use different offsets: three are offset at 22mm and three are offset at 23mm. Use the correct hole set for the selected spur gear. Slide the adapter and gear onto the transmission input shaft with the spur gear facing away from the transmission, then secure it with the stock M3 locknut and reattach the spur gear cover. The adapter is designed for a snug fit on the OEM input shaft; minor manufacturing tolerances may require firm pressure for seating.
