BowHouse RC SVT Motor Mount Risers for Traxxas X-Maxx

BowHouse RC SVT Motor Mount Risers are designed for the Traxxas X-Maxx and the SVT Big Bore Motor Mount. They allow taller-than-stock gear ratios and accommodate longer big-bore motors such as the Castle 2028 and Hobbywing 56113.

Gear Ratio Guide

• Mod 1: Accommodates most gear ratios from 83 to 90 total teeth (spur + pinion).
• Mod 1.5: Accommodates most gear ratios from 55 to 60 total teeth (spur + pinion).
• With the Hobbywing 5687 motor, spur/pinion ratios of 1.6 or higher are recommended.
• With the Castle 2028 and Hobbywing 56113 motors, spur/pinion ratios of 1:1 or higher are recommended.

Installation

• Attach one riser under each side of the SVT Big Bore Motor Mount using the included M3x20mm screws (2 per riser) and M4x16mm screws (1 per riser) with thread lock.
• Use the included M4x30mm screws and M4 washers with thread lock to attach the motor mount and risers to the chassis.
• Slide the motor mount left or right to adjust mesh before tightening the screws.

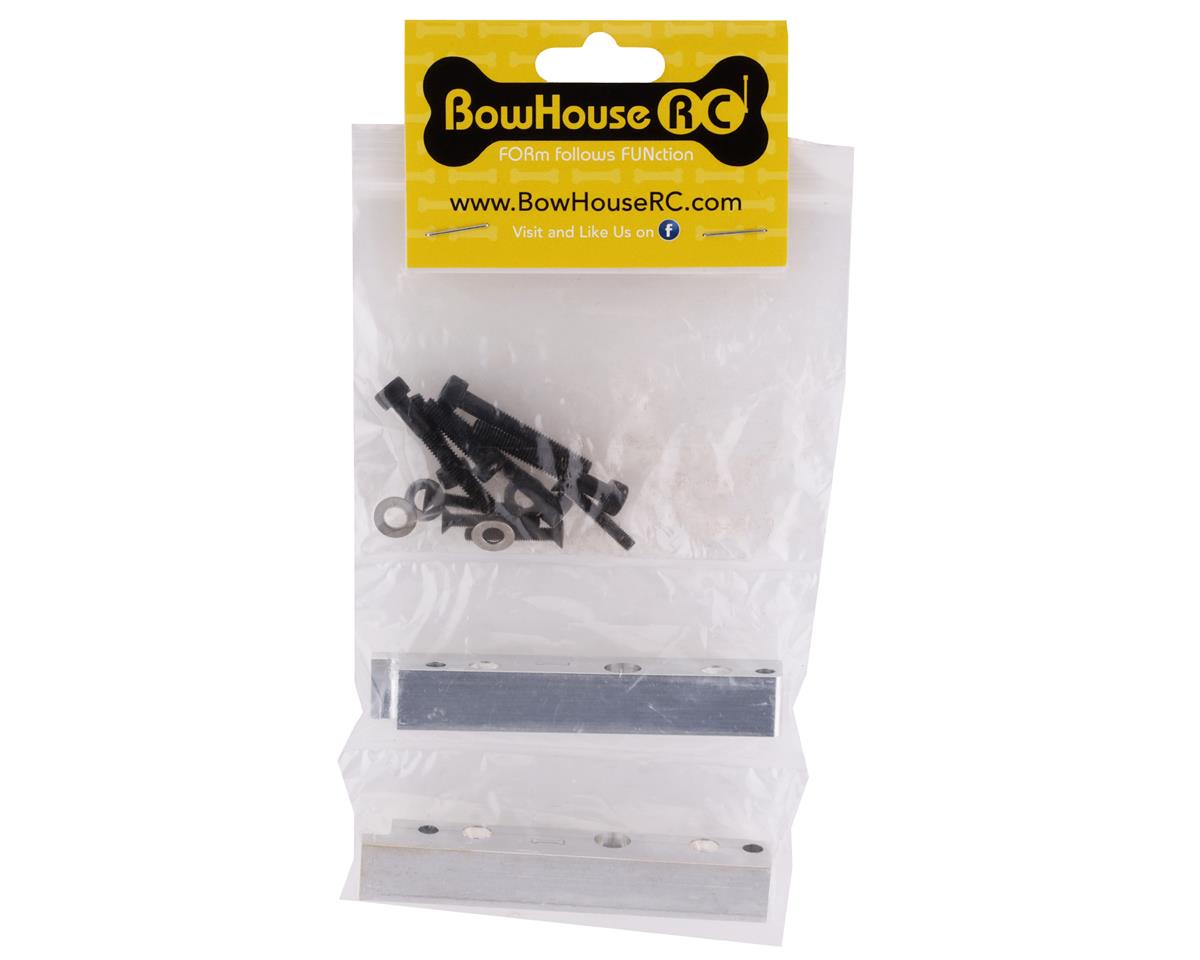

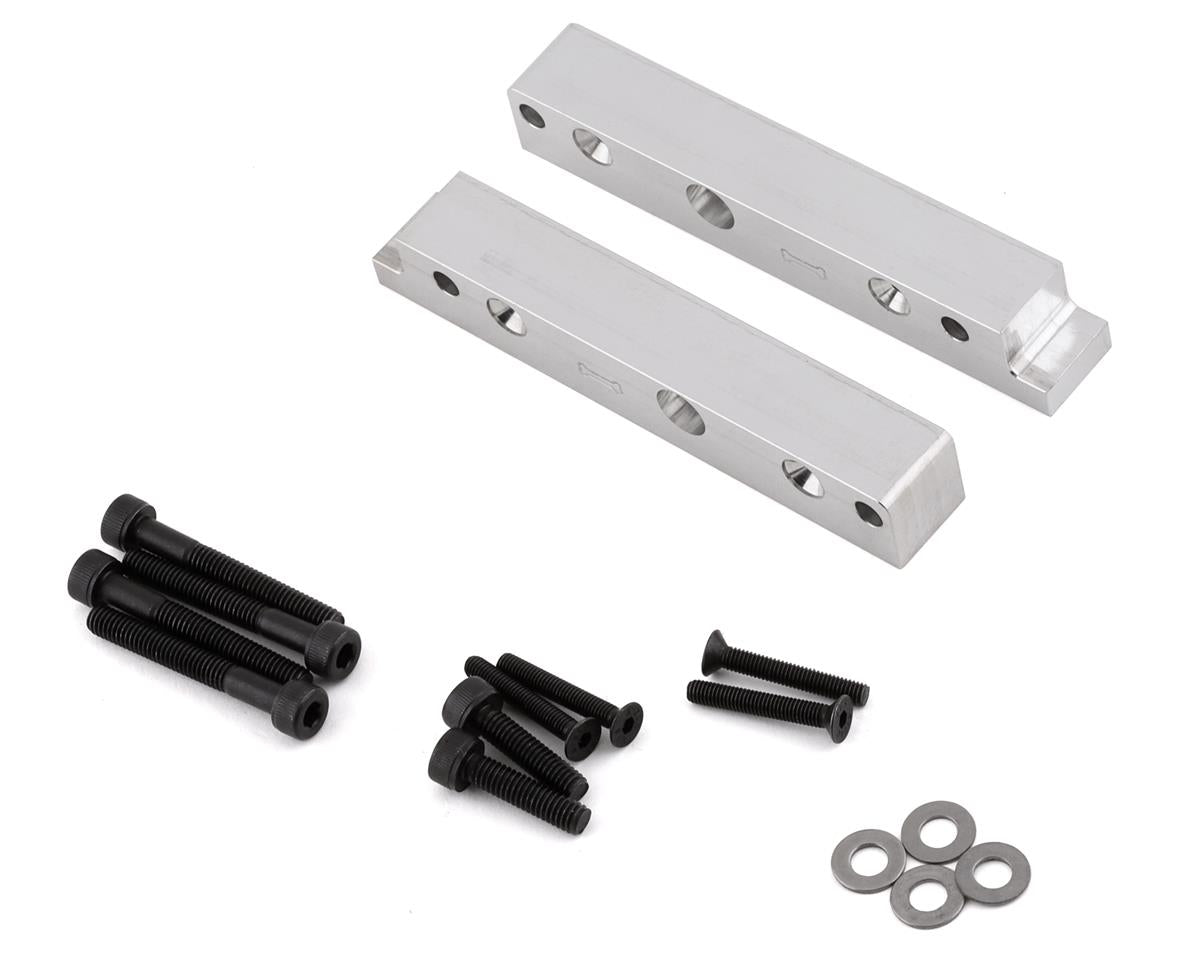

Includes

• (2) risers
• (4) M3x20mm flat head screws
• (2) M4x16mm cap head screws
• (4) M4x30mm cap head screws
• (4) M4 washers
