BowHouse RC SVT Big Bore Motor Mount for Traxxas X-Maxx (Black)

The BowHouse RC SVT Big Bore Motor Mount is a black anodized, machined aluminum motor mount for the Traxxas X-Maxx. Its mounting holes are spaced for 48mm and 56mm aftermarket motors, with the motor positioned low in the chassis.

Features

• Mounting holes spaced for Castle 1717 and 2028, and Hobbywing 5687 and 56113 series motors
• Use all 4 motor mount screws with Hobbywing 5687 and Castle 2028 motors
• Nylon spacer supports the bottom of Castle 1717 motors
• Metal tape supports the bottom of Hobbywing 5687 and 56113 motors
• Hose clamp secures the back of the motor to help prevent up-and-down movement
• Castle 2028 and Hobbywing 56113 motors require SVT Risers, sold separately as BWH-BXM-0020

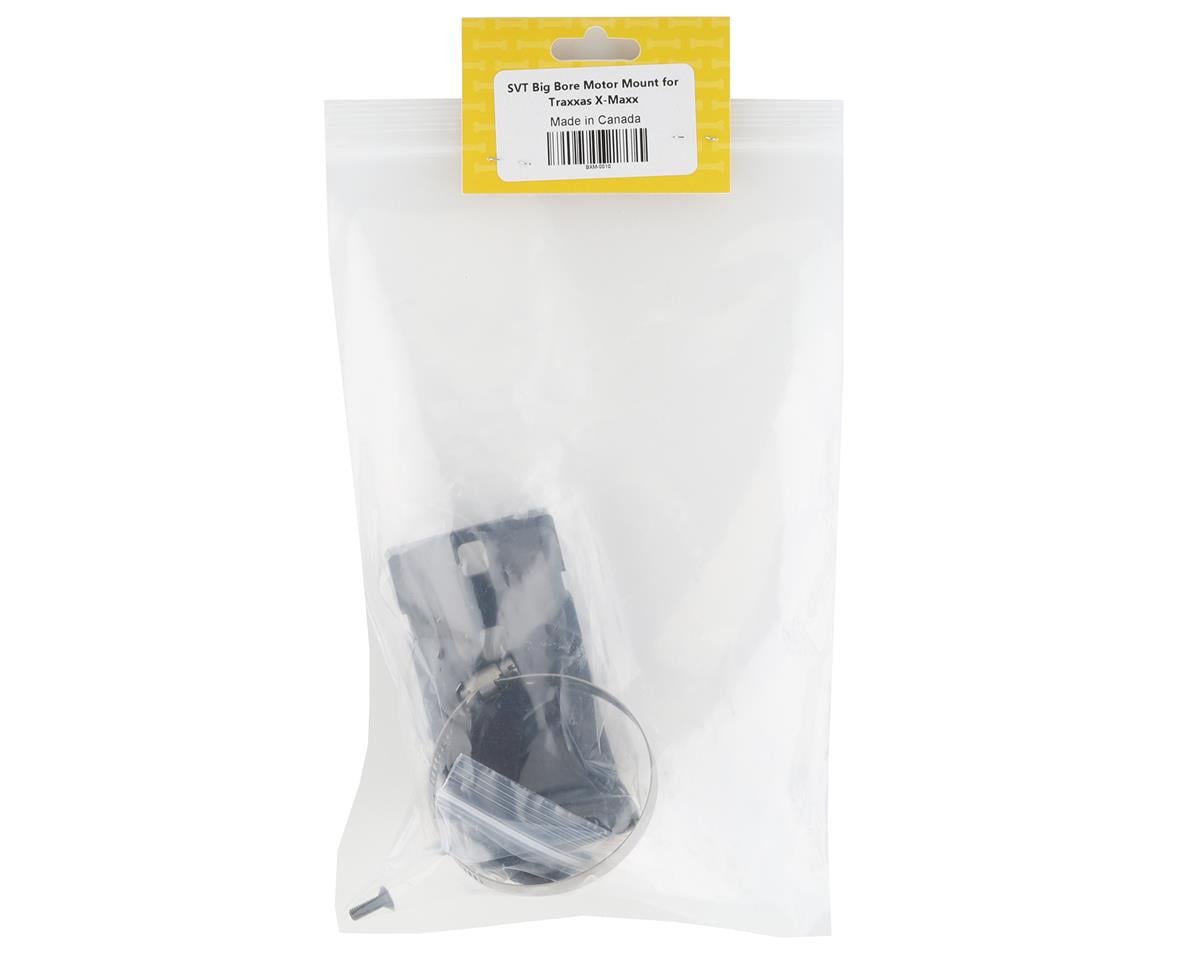

Includes

• Black anodized motor mount
• (4) M4x12mm flat head screws
• Nylon spacer for 48mm motors
• Metal tape for Hobbywing 5687 motor
• Hose clamp

Installation Notes

• Use 2 screws at the 3 o'clock and 9 o'clock positions for Castle 1717 and Hobbywing 4985 motors.
• Use 4 screws at the upper and lower locations for Hobbywing 5687/56113 or Castle 2020 series motors.
• For Castle 2028 and Hobbywing 56113 motors, install SVT Risers for Big Bore Motor Mount between the mount and chassis for proper clearance. BWH-BXM-0020 risers are sold separately.
• Trim approximately 8mm from the stock spur gear cover on the left (driver's) side for clearance, then reinstall the cover using stock hardware.
• Use thread lock to secure screws going into the mount.
