BowHouse RC SCX24 Low CG Conversion Kit

The BowHouse RC SCX24 Low CG Conversion Kit includes a low CG battery tray and ESC tray designed to reposition components lower in the chassis.

Features

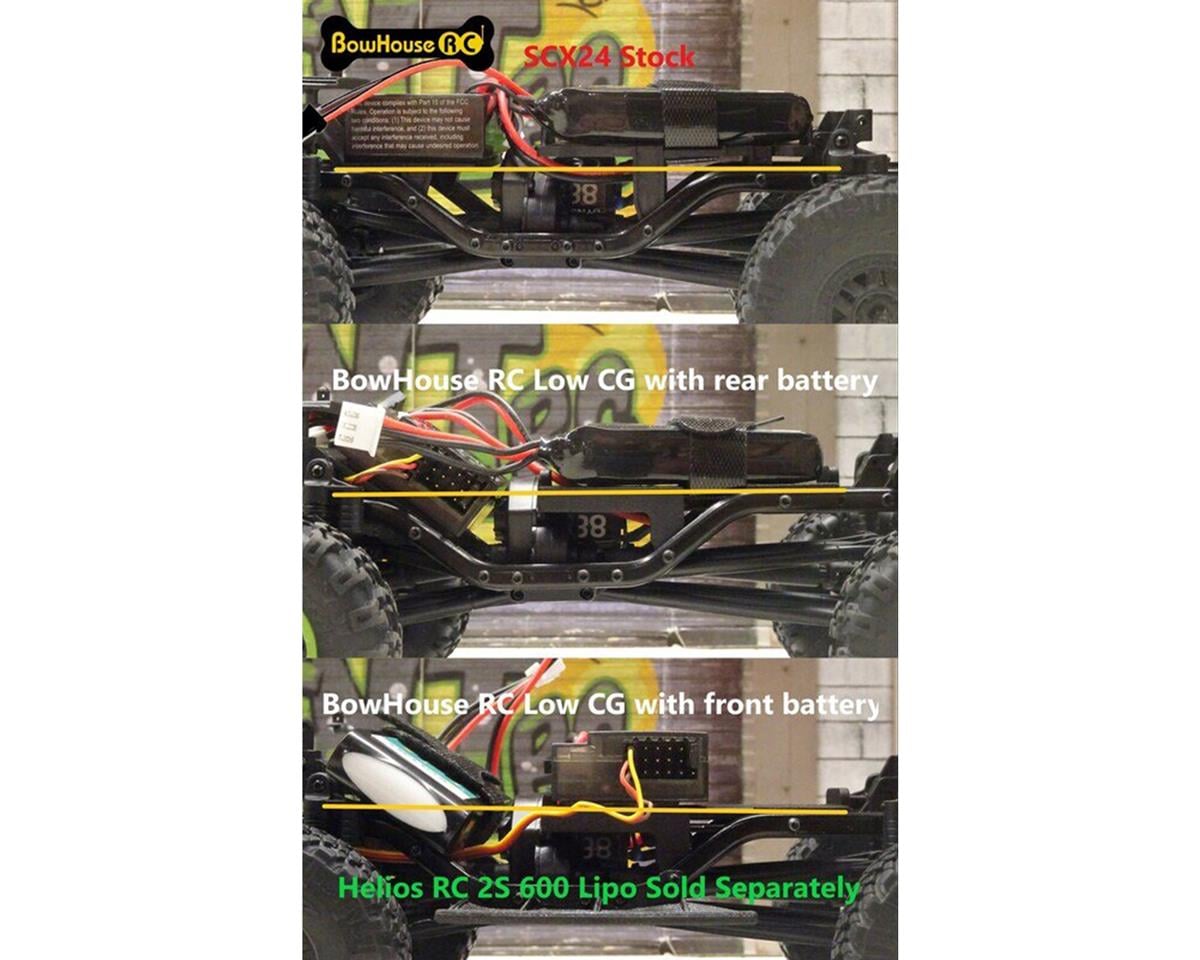

• Low CG battery tray: Drops the battery by 4mm down to the top of the rails.
• Low CG ESC tray: Rotates and lowers the ESC below the rails.
• Integrated shock mounts with 2 positions for compatibility with all SCX24 models.
• Battery and ESC trays can be swapped for a maximum forward weight bias.
• Reuses stock hardware for installation.

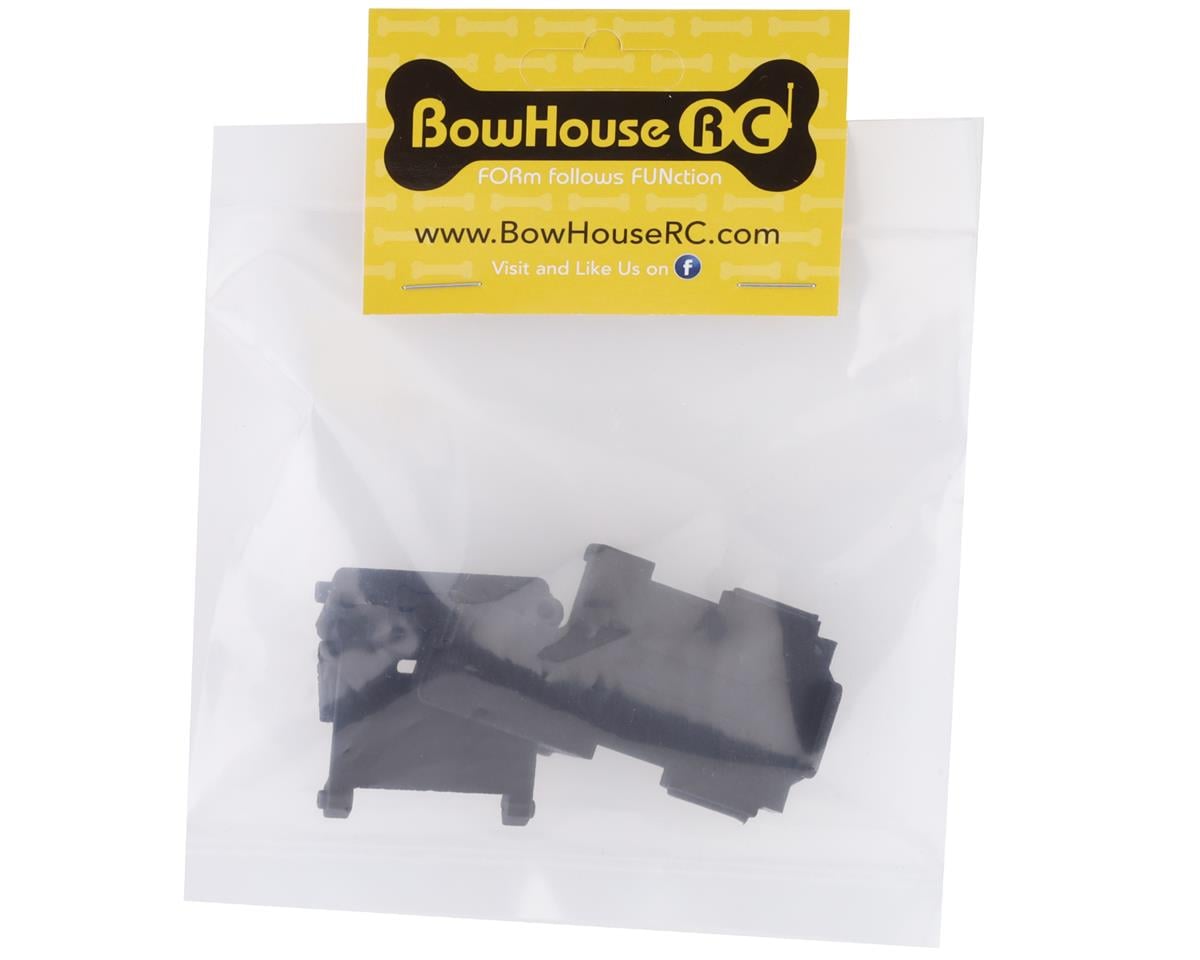

Includes

• (1) low CG battery tray
• (1) low CG ESC tray

Installation Notes

The stock battery tray, ESC tray, body mount(s), shock hardware, and hook-and-loop strap are removed during installation. The stock hook-and-loop strap is installed on the BowHouse RC battery tray, or on the ESC tray for the battery-forward configuration.

Depending on the SCX24 model and configuration, a short servo extension may be needed for the lights or servo. Battery-forward installation may result in nearly full droop on front shocks depending on your setup.
