BowHouse RC Losi LMT Low CG Electronics Tray

The BowHouse RC Losi LMT Low CG Electronics Tray lets you position the electronics up to 15mm lower than the stock mount to help improve stability. It is designed to pair with the BowHouse Low CG Battery Tray and includes a built-in receiver box with a pass-through for ESC and servo leads.

Features

• For the Losi LMT

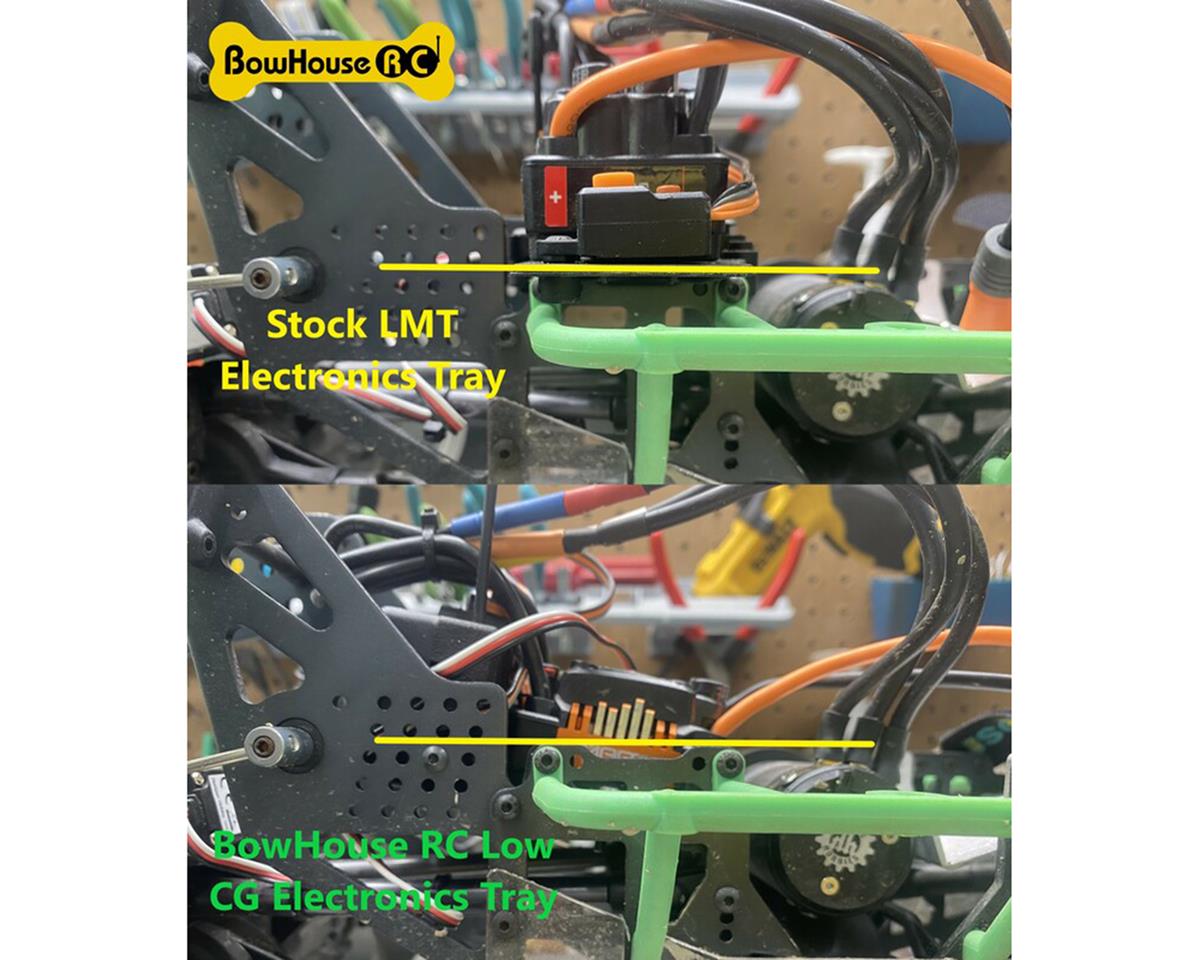

• Lowers electronics up to 15mm compared with the stock mount
• Built-in receiver box accepts the stock receiver box cover
• Pass-through for ESC and servo leads
• Mounting points for the stock Spektrum ESC and on/off switch

Installation Notes

Remove the stock receiver box lid, antenna tube, ESC on/off switch, ESC, receiver, and electronics tray while saving the specified stock hardware for reuse where applicable. Install the receiver in the receiver box portion of the BowHouse RC tray and reconnect the wires, then fit the stock receiver box lid.

The stock Spektrum receiver setup can reuse the stock M3x14mm BHCS screws for ESC installation and the stock M3x10mm BHCS screw for the on/off switch. For an aftermarket ESC, use double-stick tape and/or zip ties to secure it to the tray. Install the tray using the included 4x M3x12mm BHCS screws in the stock ESC mounting location and 2x M3x8mm BHCS screws through the corresponding chassis holes.

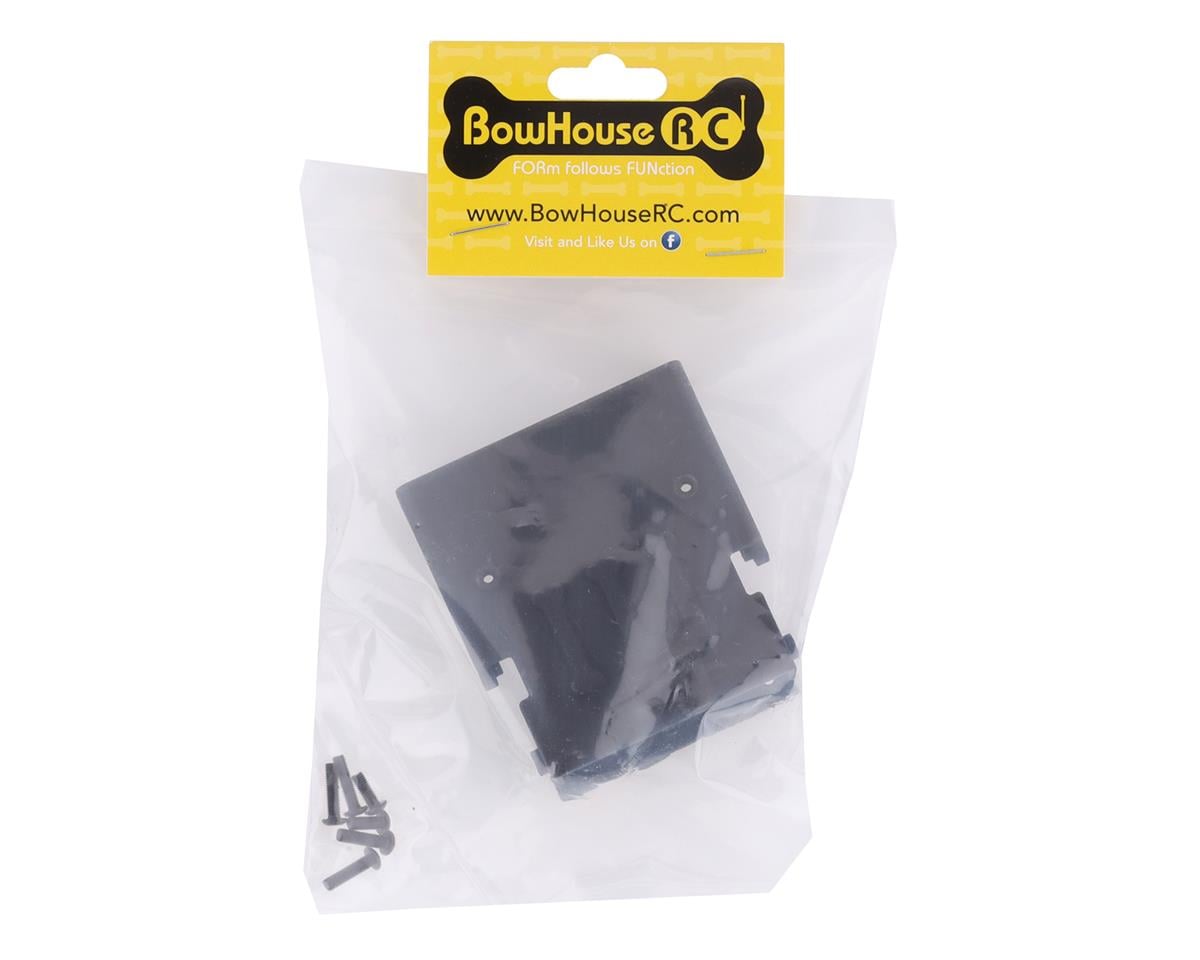

Includes

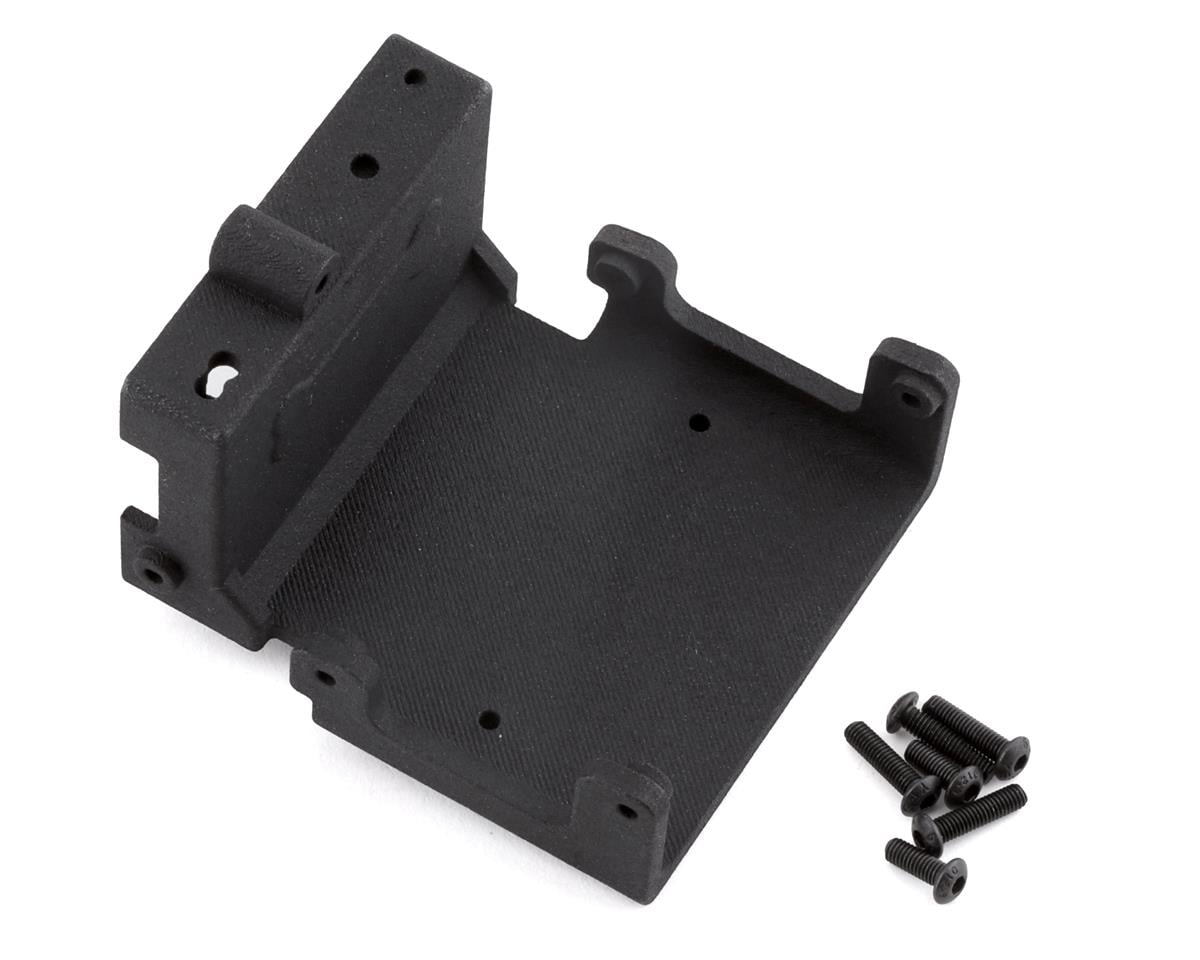

• 1 Low CG Electronics Tray
• 4 M3x12 mm button head screws
• 2 M3x8 mm button head screws
