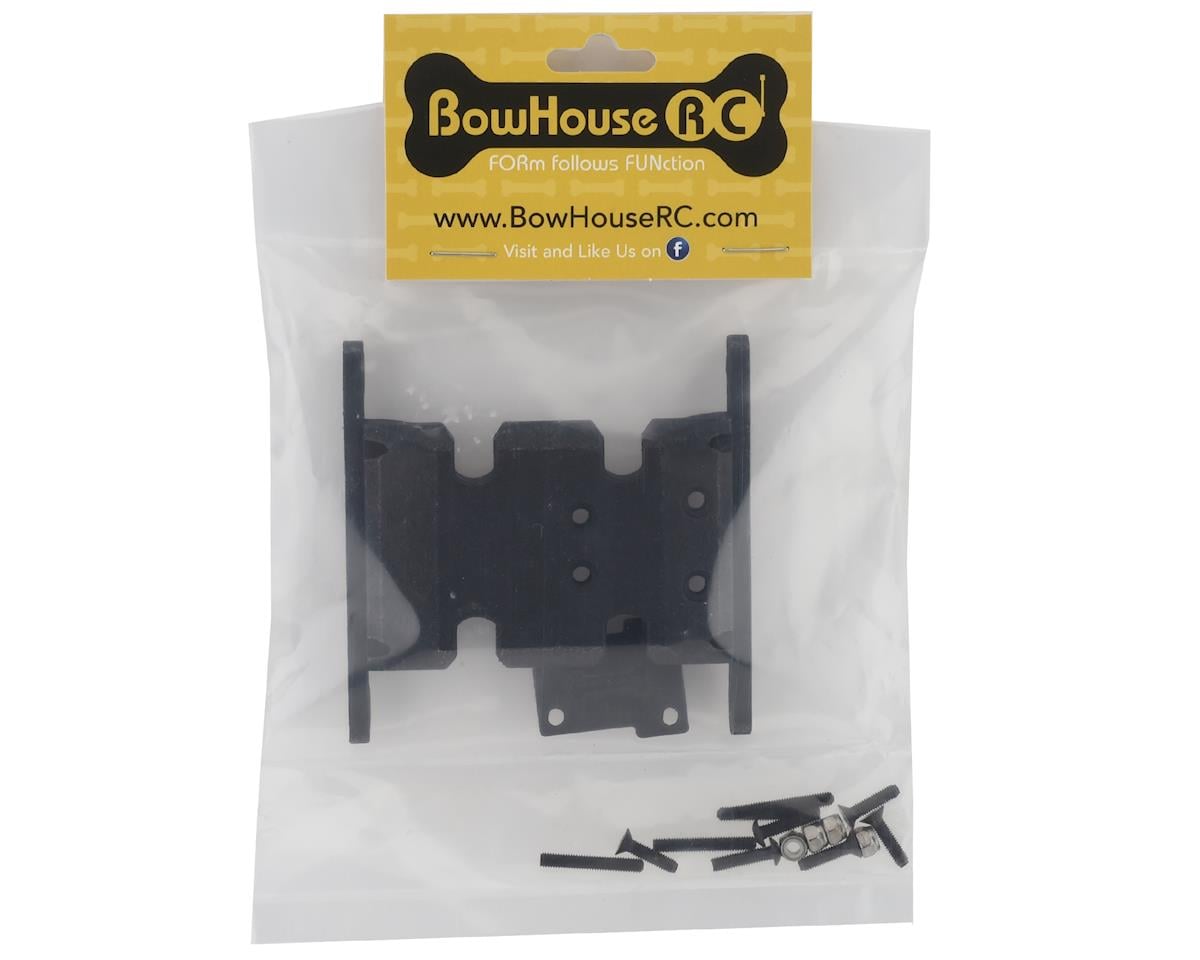

BowHouse RC Element/SCX10 SVT Low CG Multipurpose Skid

The BowHouse RC Element/SCX10 SVT Low CG Multipurpose Skid is designed for Element and Axial-based trucks. It lowers the transmission while maintaining ground clearance, improves driveline angles, and supports multiple transmission and front-end configurations.

Features

• Lowers the stock Element transmission by 3mm without impacting ground clearance
• Improves driveline angles on the Element Enduro
• Allows installation of an Axial AX10 3-gear transmission in an Element
• Works with solid front axle and IFS versions of the Element
• Fits stock Element pivot balls
• Lowers the SCX10 / SCX 10 II transmission by approx. 1mm without impacting ground clearance
• Allows installation of the Element Stealth X transmission in an SCX10/SCX10 II
• Allows installation of the Element IFS conversion without trimming skid mounting holes
• Fits stock Axial pivot balls
• Features a smooth underbelly for sliding over rocks

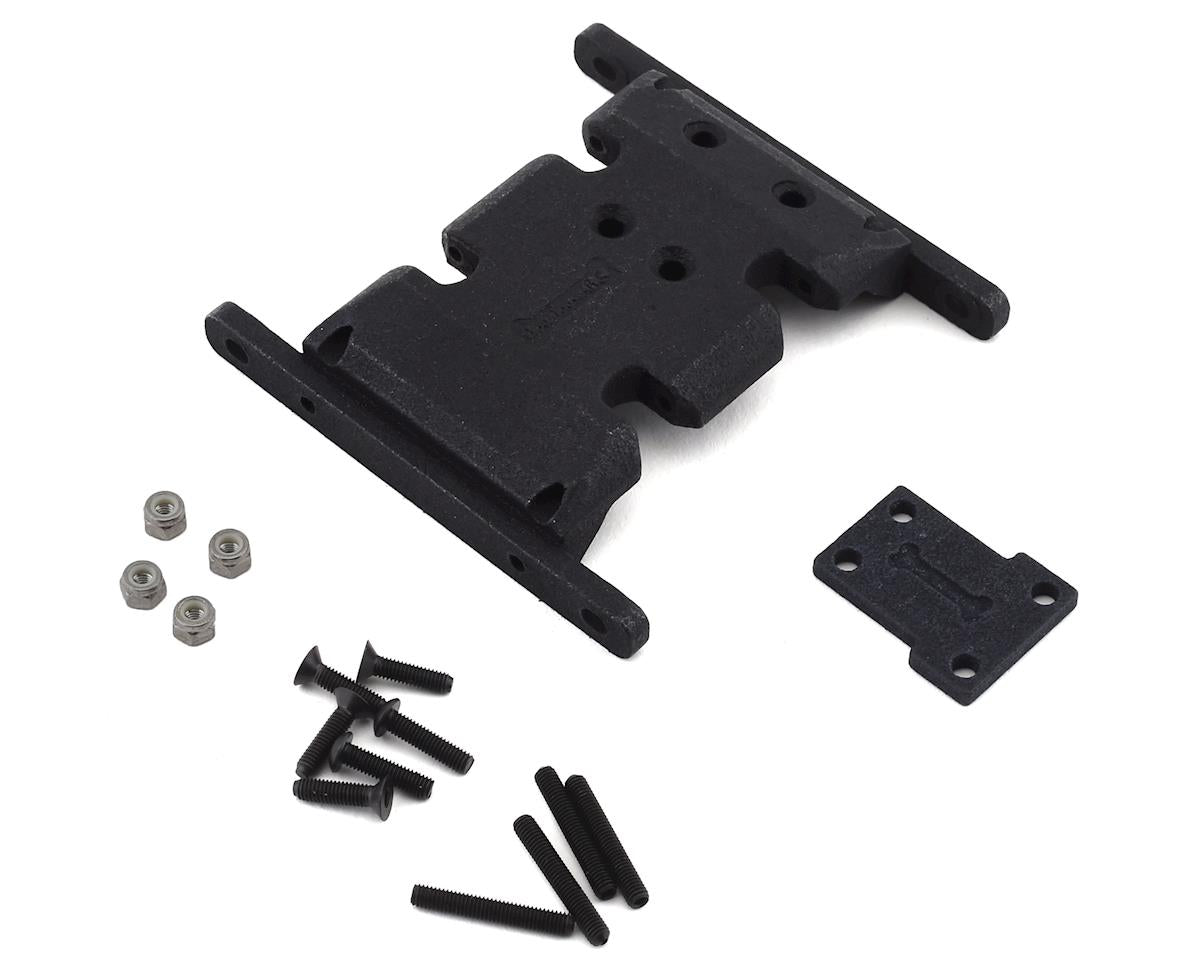

Includes

• 1 skid
• 1 transmission spacer
• 4 M3 x 20mm set screws
• 4 M3 x 12mm flat head screws
• 4 M3 locknuts
• 2 M3 x 12mm BHCS

Installation Notes

Remove the stock skid and retain the specified stock screws and locknuts. Install the SVT Multipurpose Skid using the stock screws in the 2 middle holes on each side. Attach the upper links with the stock screws and locknuts, then use the supplied M3 x 20mm set screws for the front and rear lower links, or the IFS skid and rear lower links. Fasten the transmission with 4x M3 x 12mm flat head screws. For IFS setups, use 2x M3 x 12mm BHCS screws and M3 locknuts in the forward-most skid holes. These screws are not required with a solid front axle.
