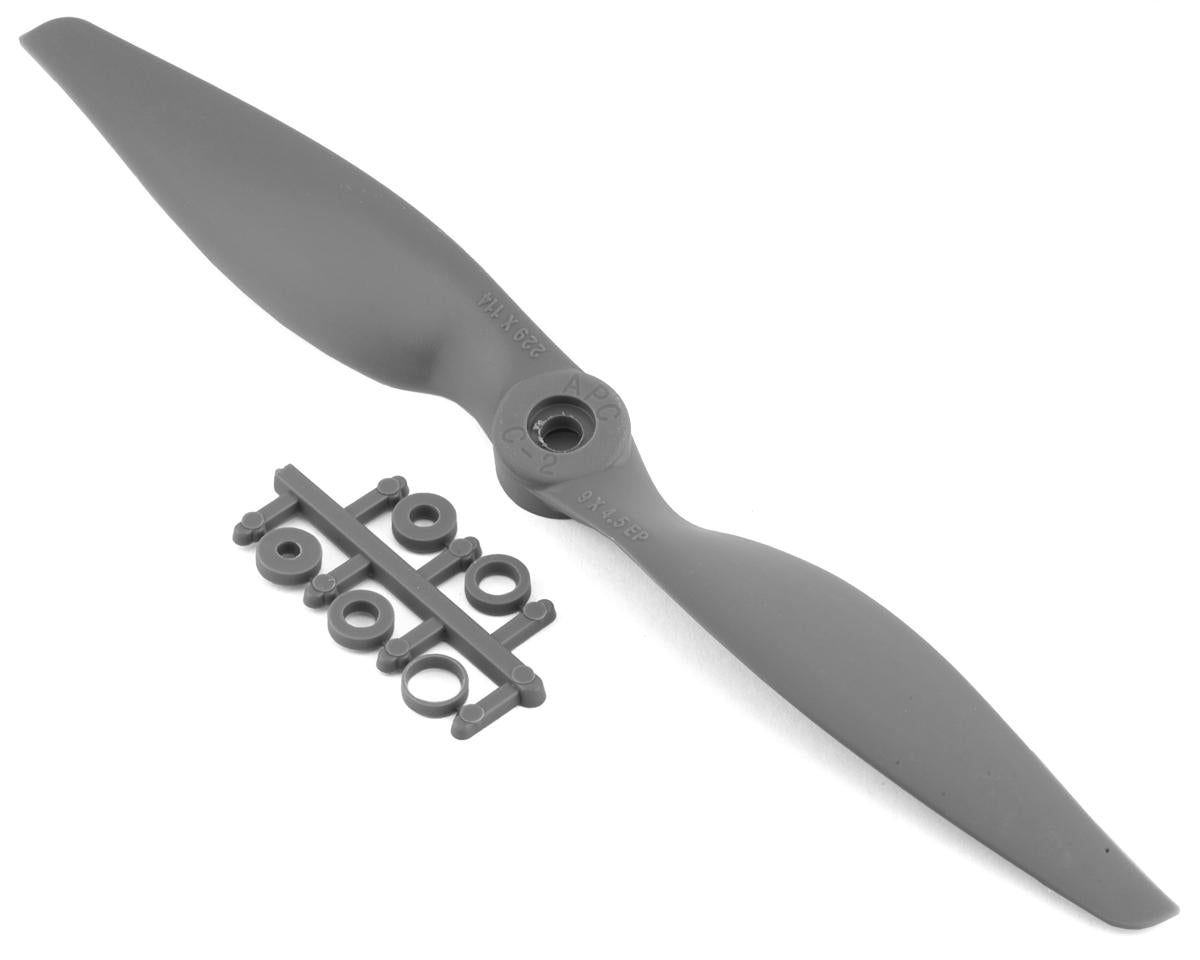

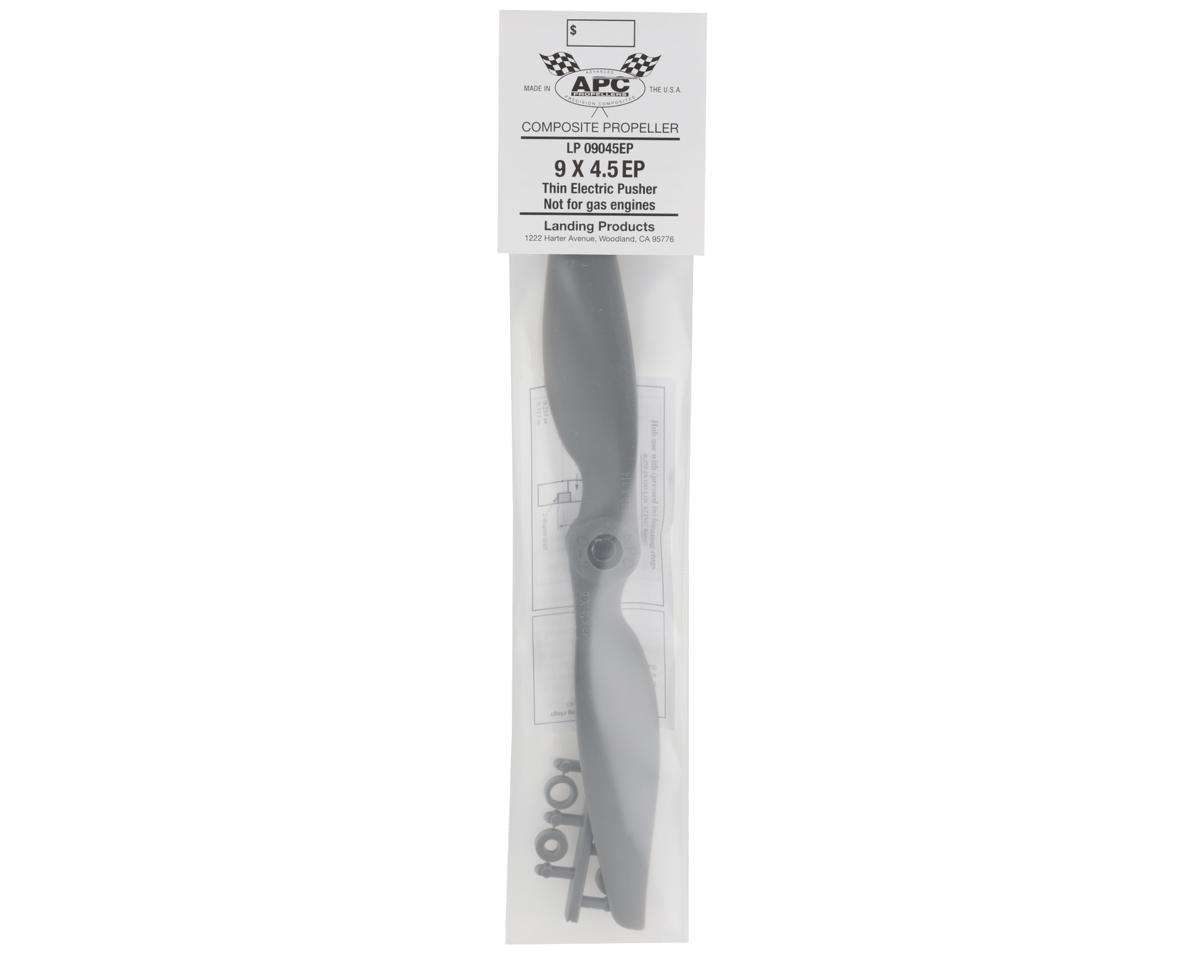

APC 9x4.5 Thin Electric Pusher Propeller

The APC 9x4.5 Thin Electric Pusher Propeller features a computer-optimized profile and lightweight molded nylon construction. Its pultruded design uses 60% fiber density for increased strength and stiffness, while reinforcing fibers help maintain a true, constant pitch at any RPM.

This is a CW reverse-rotation propeller for pusher applications. The thinner cross-section supports reduced weight and aerodynamic efficiency, while the added stiffness helps control vibration resonance response.

Specifications

• Propeller Diameter: 9in (228.6mm)
• Pitch: 4.5in (114.3mm)
• Hub Diameter: 0.80in (20.32mm)
• Hub Thickness: 0.38in (9.65mm)
• Shaft Diameter: 0.25in (6.35mm)
• Weight: 0.63oz (17.86g)
• Rotation: CW (Reverse/Pusher)
