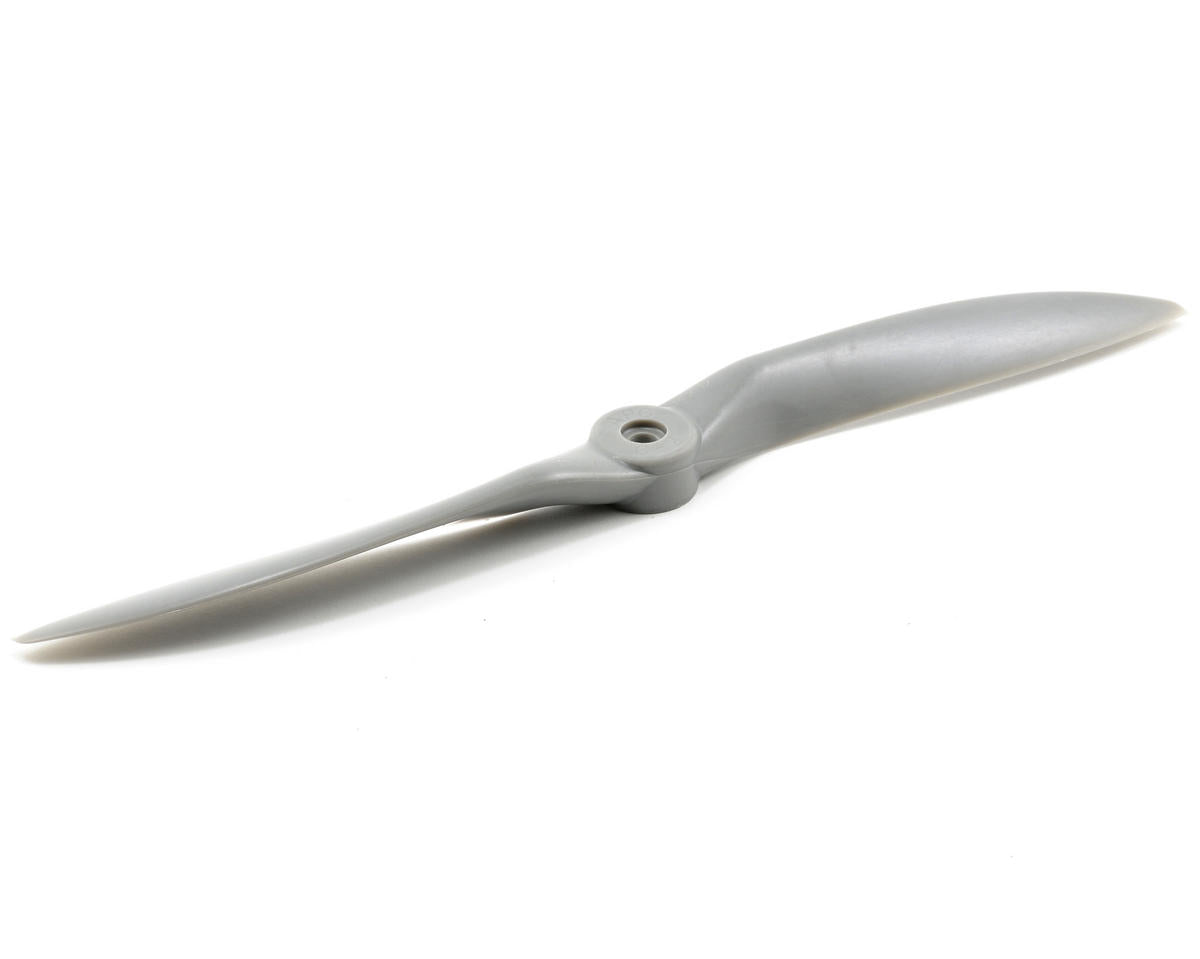

APC 14x12 Pattern Propeller

The APC 14x12 Pattern Propeller features a computer-optimized profile designed for more bite with less noise. Its lightweight molded nylon construction helps reduce rotating mass, while reinforcing fibers support a true, constant pitch at any RPM.

Manufactured using a pultrusion process with 60% fiber to resin density, the propeller offers increased strength and stiffness compared with glass-filled nylon. The added stiffness helps control vibration resonance response, while thinner cross-sections support weight and aerodynamic efficiency.

Specifications

• Propeller Diameter: 14in (355.6mm)
• Pitch: 12in (304.8mm)
• Hub Diameter: 1.13in (28.702mm)
• Hub Thickness: 0.67in (17.018mm)
• Shaft Diameter: 0.31in (7.874mm)
• Weight: 2.72oz (77.11g)
• Rotation: CCW (Standard/Tractor)
